11
Turn 90° the
fixing hook
Take off the fixing
hook downwards
Drain hose
fixing hook
Slightly
pull out
Drain hose
Take off drain hose
Side Section View
Fixing hook
installation
hole
Drain Hose
Fixing Hook

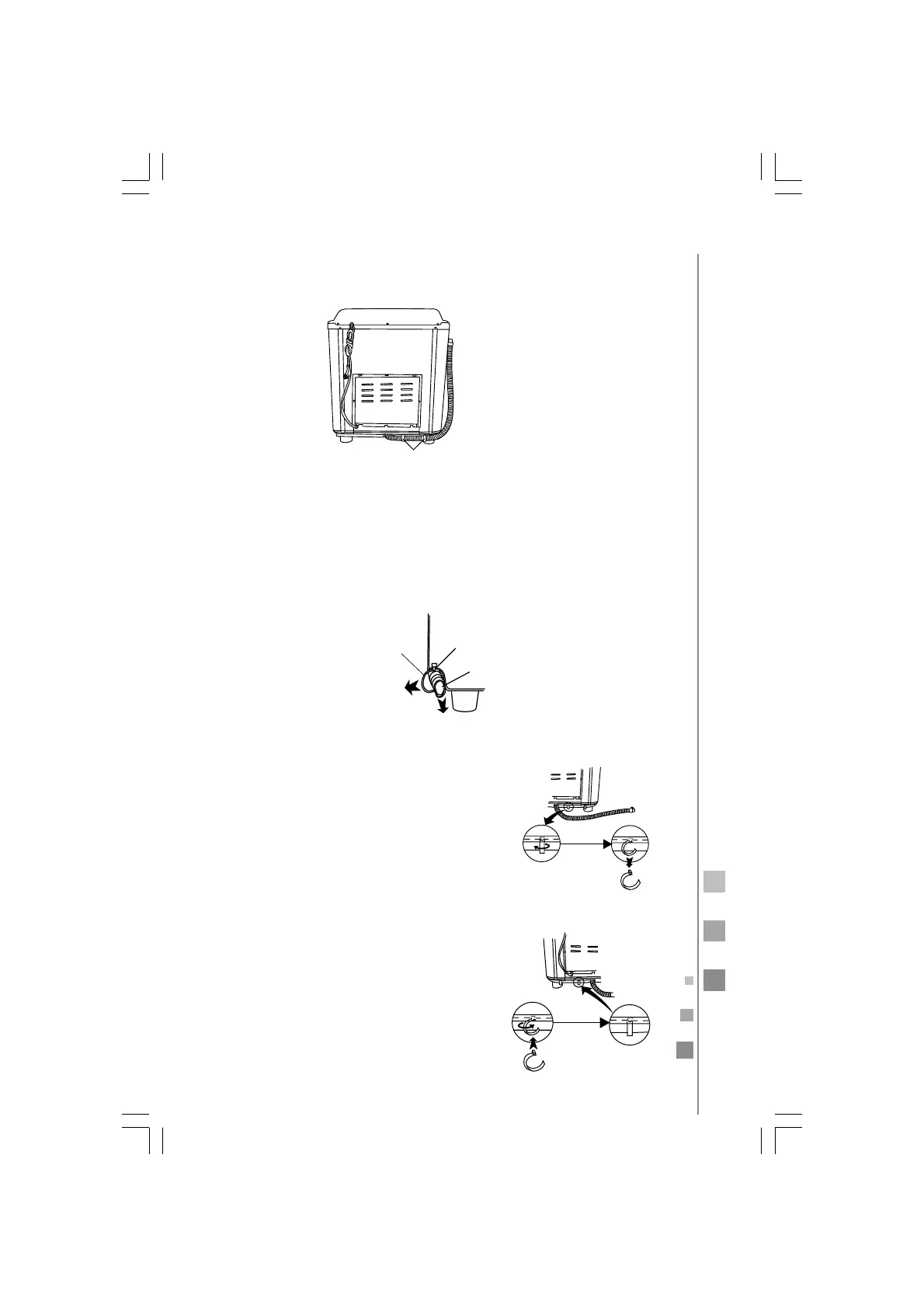

how to change the direction of the drain hose
Figure 1 shows the factory installation position of the drain hose.
Extend the drain hose from the spin tub side
1. Remove the drain hose from the hanging hole on the cabinet.
Pull the drain hose fixing hook outwards gently to take out the
drain hose from the two fixing hooks. (See Figure 2).
Turn 90° the
hook to fix it
Insert the fixing hook into the
Installation hole upwards
2. Turn 90° the drain hose fixing hook to re-
move it from the installation hole (see Fig-
ure 3).
3. Install the two drain hose fixing hooks taken
out, into the installation hole at the other
side of the base frame (to aim at the instal-
lation hole accurately you can lean the
washing machine forward slightly). Then
turn 90° (see Figure 4).
Figure 1
Figure 2
Figure 3
Figure 4
