85

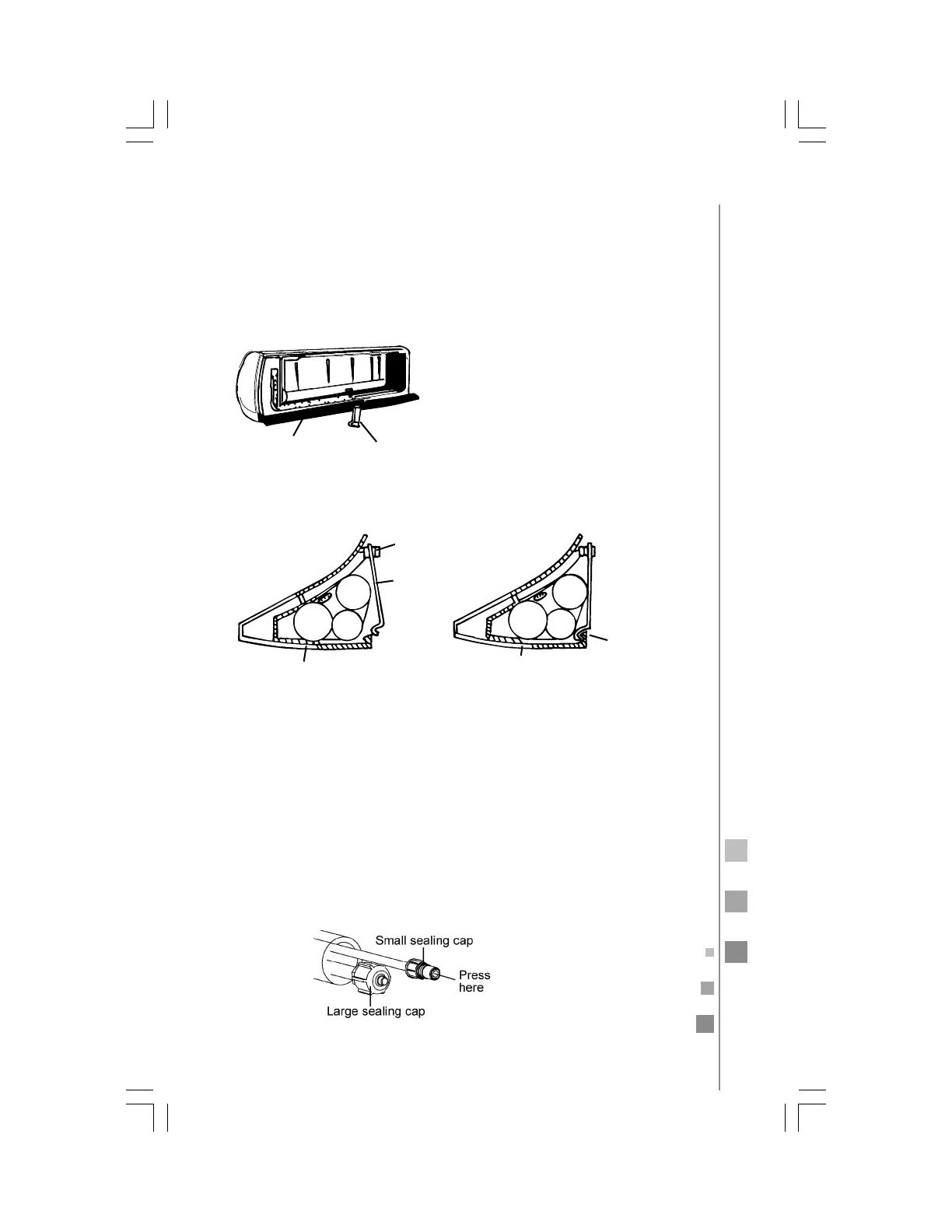

A. Insert the pipe fixer into the
slot.
Base
Pipe fixer
Base
Pipe
fixer
B. Press to hook the pipe fixer onto the
base
Insert
here
Drain
hose
Large
pipe
Small
pipe
Drain
hose
Large
pipe
Small
pipe
Base
Hook here
• Do not arrange the drain hose in a way that will leave it twisted,
sticking out or waving around. Do not immerse the end of the
hose it in water.
• If an extension drain hose is connected to the drain pipe, make
sure to insulate it where it passes along the indoor unit.
• When the piping is directed to the right, piping, power cord and
drain pipe should be thermal insulated and fixed onto the back of
the unit with a piping fixer.
piping connection
1. Before unscrewing the big and the small sealing caps, press the
small sealing cap with your finger until the exhaust noise stops,
and then release your finger.
If you don't hear the exhaust noise, please contact with your
dealer.
