Mac allister MLMP300H40 - Completing Assembly and Grass Catcher Installation; Final Handlebar Attachment Steps; Fitting the Grass Catcher

18 19
MLMP300H40 MLMP300H40
Getting Started . . . Getting Started . . .

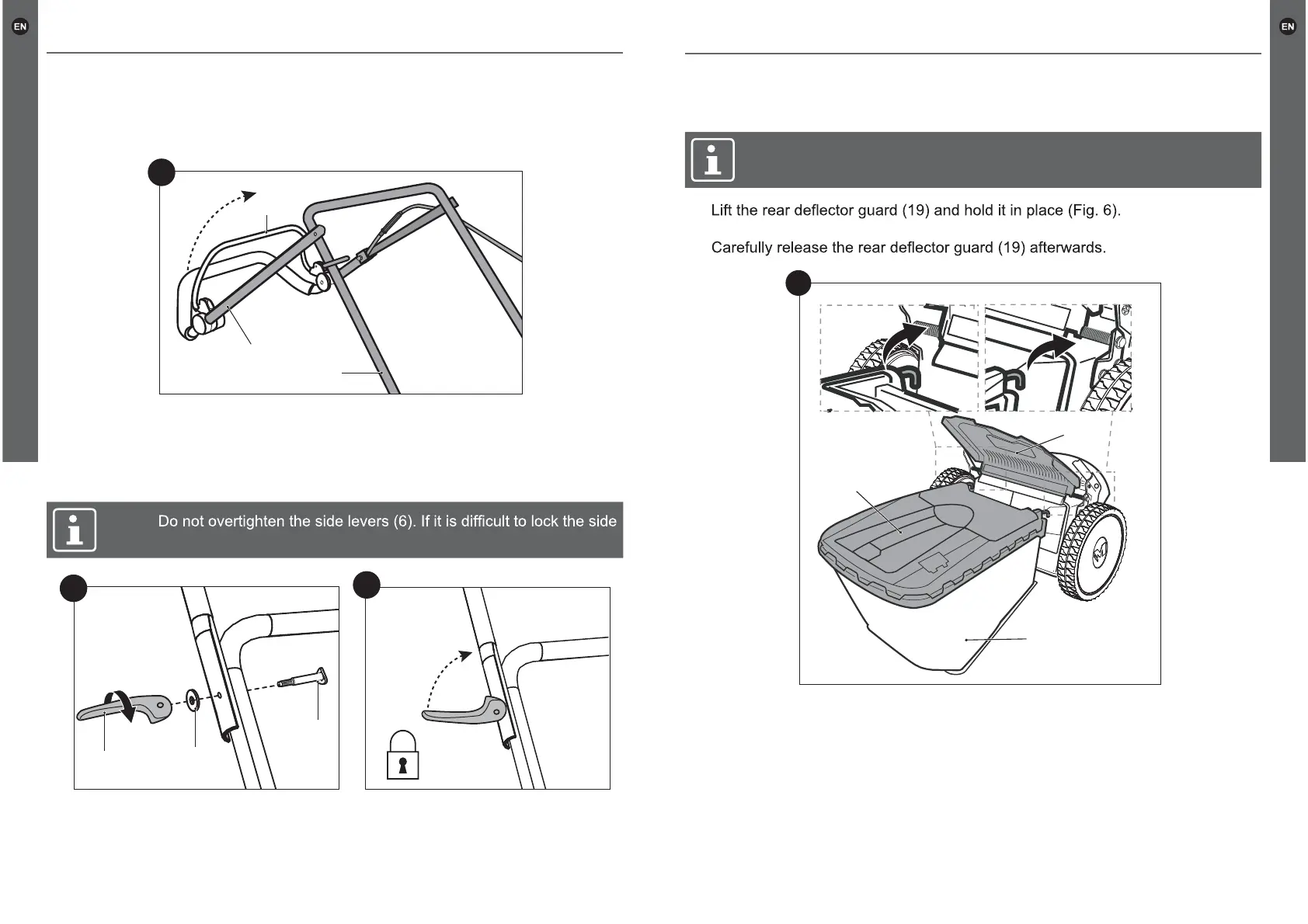

Grass catcher installation
NOTE: Always carry the grass catcher (20) by its handle (20a).
1.
2. Align the hooks of the grass catcher (20) with the rods and hang them onto.
3.
20a
20
6
19
5. Unfold the upper handle bar (3) and hold it with the brake clutch (2) facing upwards.
Align the mounting holes of the upper handle bar (3) and the lower handle bar
(4) (Fig. 3).
3
4
3
2
6. Fix the upper handle bar (3) to the lower handle bar (4) with the side levers (6),
washers (6a) and bolts (6b) through the mounting holes (Fig. 4). Screw in the
side lever (6) clockwise and lock by folding up towards the handle. If side lever
(6) cannot be folded, loosen it and fold again (Fig. 5). If it is too loose, tighten it
by swinging the side lever (6).
NOTE:
lever (6), rotate it in the opposite direction to loosen the connection.
6
4
5
6a
6b
Before you startBefore you start
