SPECIFICATIONS

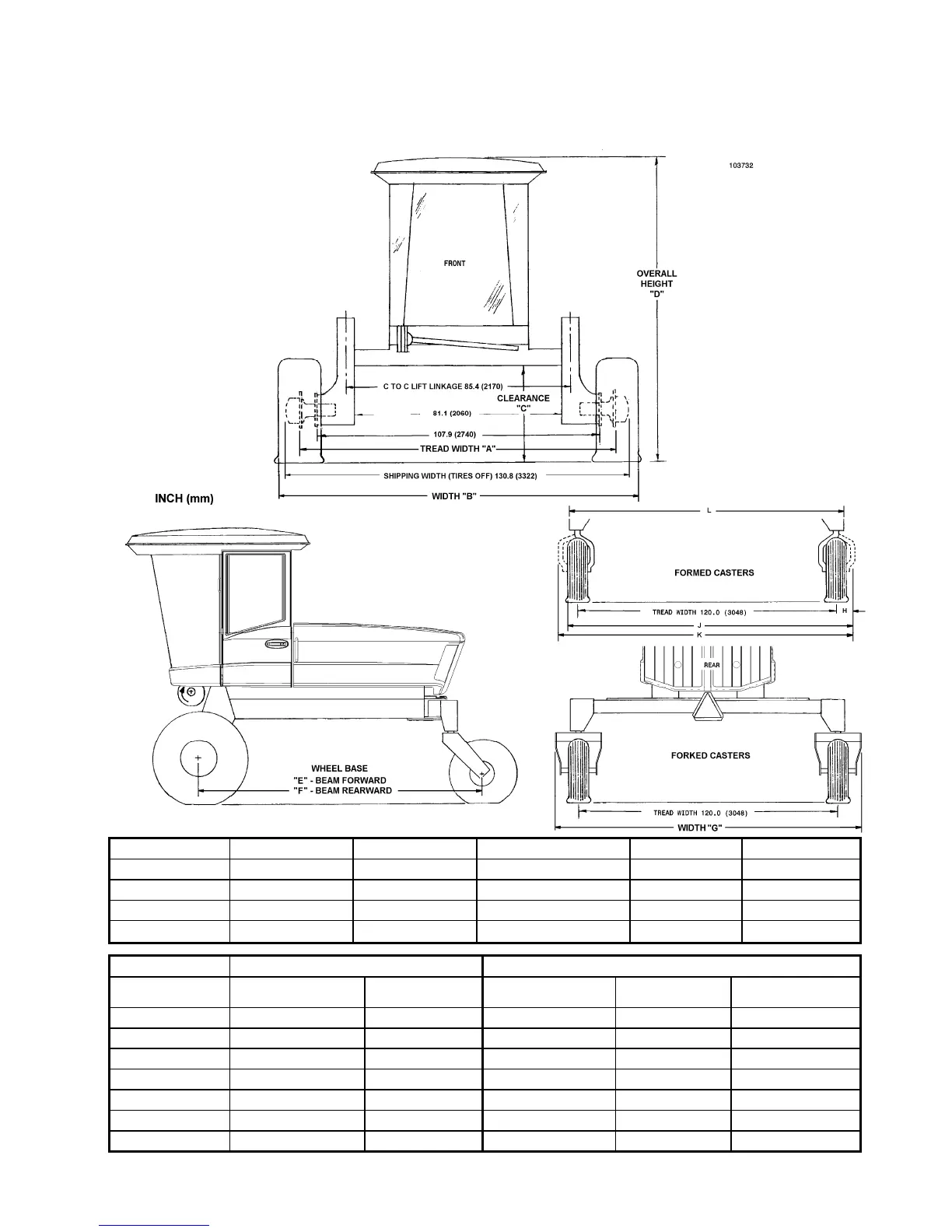

TRACTOR DIMENSIONS:
Weight (varies with tire size):
- with naturally-aspirated (N/A) diesel engine ...............................................approx. 7225 lbs. (3275 kg)
- with turbocharged diesel engine.................................................................approx. 7250 lbs. (3290 kg)
Drive Tire 21.5L - 16.1 14.9 - 24 500-70R24 540 - 65R24 560 - 65D24
Tread Width A 118.1" (3000 mm) 118.5" (3010 mm) 117" (2972 mm)
117" (2972 mm) 117" (2972 mm)
Front Width B 139.5” (3543 mm) 133.5” (3390 mm) 136” (3455 mm)
137” (3480 mm) 139.3” (3538 mm)
Clearance C 38.3” (972 mm) 42.1” (1070 mm) 43.4” (1102 mm)
42.1” (1070 mm) 43.0” (1092 mm)
Height D 122.5” (3112 mm) 126.3” (3210 mm) 127.6” (3240 mm)
126.3” (3210 mm) 127.2” (3230 mm)
Drive Tire 21.5L – 16.1 14.9 – 24, 500 – 70R24, 540 – 65R24, OR 560 – 65D24
Caster Tire 9.5L – 14 Form/Fork 16.5L - 16.1 Forked 11.0 – 16 Forked
16.5L - 16.1
Forked
7.5L – 16 Formed
Wheel Base E 112.8" (2864 mm) 119.8" (3040 mm) 118.3" (3005 mm) 118.3" (3005 mm) 114.4" (2906 mm)
Wheel Base F 127.7" (3244 mm) 134.7" (3420 mm) 133.3" (3385 mm) 133.3" (3385 mm) 129.4” (3287 mm)
Rear Width G 135.2" (3435 mm) 142.3" (3615 mm) 142.3" (3615 mm) 142.3" (3615 mm) –
Dim. H (Formed) 8.9” (225 mm) – – – –
Rear Width J 133.7” (3396 mm) – – – –
Rear Width K – – – – 143” (3632 mm)
Rear Width L – – – – 130.1” (3304 mm)
