MAINTENANCE/SERVICE
Engine
CAUTION: Never operate engine in a
closed building. Proper ventilation is
required to avoid exhaust gas
hazards.
Keep the engine clean. Straw and chaff on a
hot engine are a fire hazard.
Never use gasoline, naphtha or any other
volatile material for cleaning purposes. These
materials may be toxic and/or flammable.
CUMMINS BARRING TOOL
Hole (A) is provided in left front engine mount for
use of a Cummins barring tool to manually turn
flywheel.
OPENING & CLOSING HOOD
For access to the engine compartment:
1. Pull hood release handle (B).
2. Lift hood to raised position.
To close:
3. Grasp panel at interior hand-hold (C).
4. Lower panel to closed position, ensuring latch
engages.
NOTE: For models 9352, 4952, 2952, and 8152, a
pull rope is provided to ease closing. Release rope
from storage bracket at (D) and pull down.

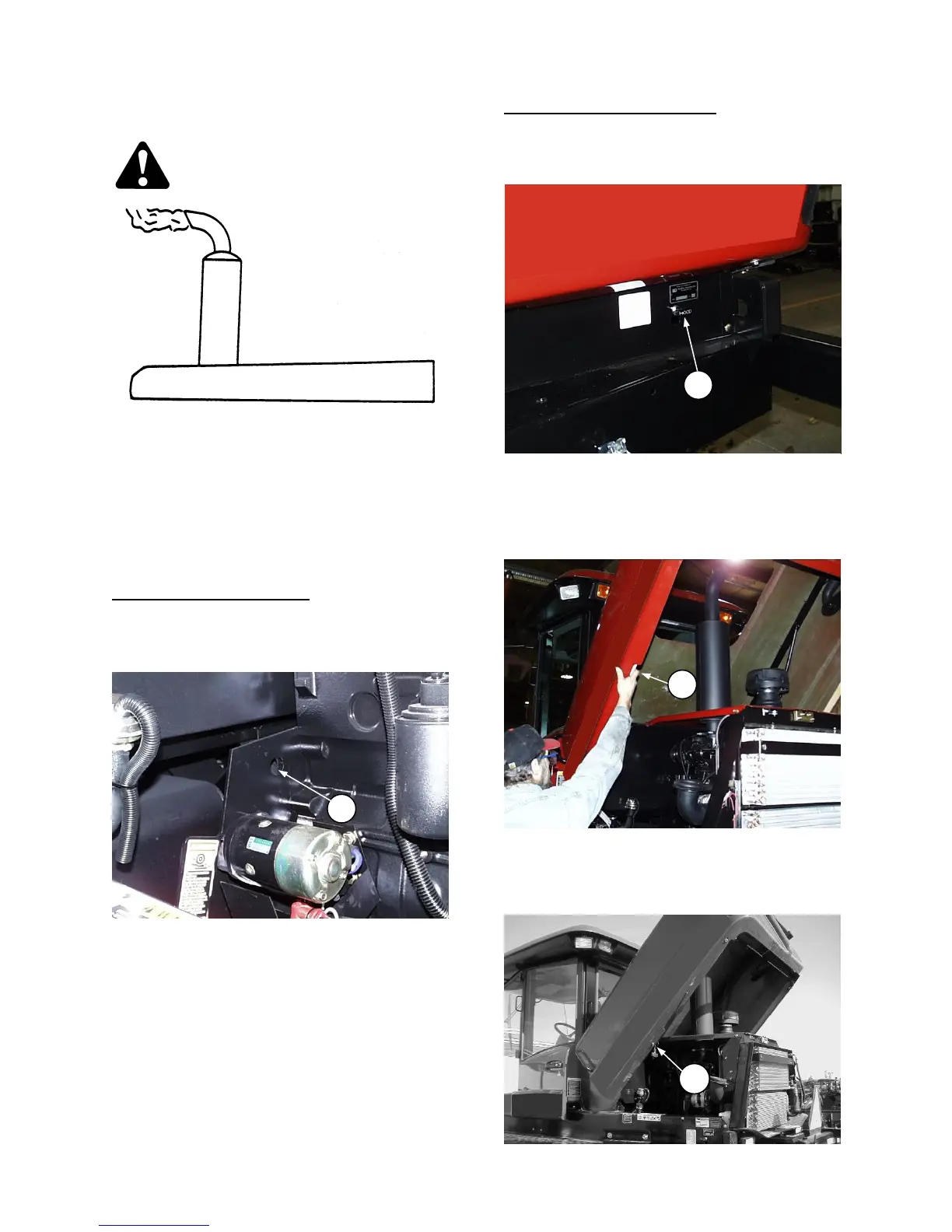

AVOID EXHAUST GAS HAZARDS
A
BARRING TOOL ACCESS HOLE
B
HOOD RELEASE HANDLE
C
CLOSING HOOD
D
