Form # 46584 Issue 11/06 Web Rev_01
62
MAINTENANCE/SERVICE

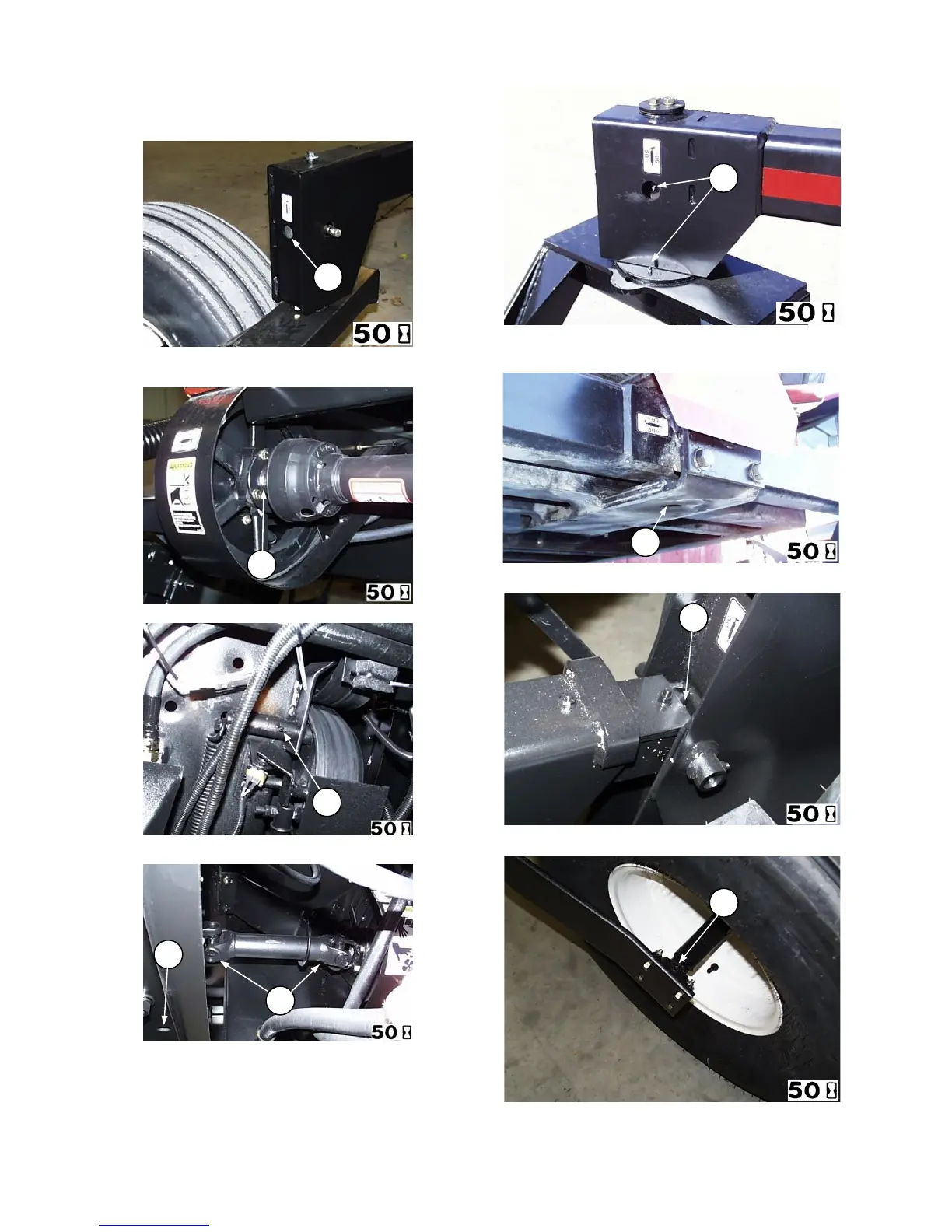

Greasing the Windrower Tractor:
50 Hours (continued)
CASTER PIVOTS: (A) - TWO FITTINGS
MODEL XX50/XX40 TRACTORS
A
HEADER DRIVE PULLEY (B) - ONE FITTING
B
C
HEADER CLUTCH PIVOT (C) - ONE FITTING
H
D
TRANSMISSION DRIVELINE U-JOINTS (D) -
TWO FITTINGS
NOTE: There is a hole at (H) where a screw-driver
can be worked against flywheel ring gear to turn
driveline for zerk access, or a Cummins barring tool
may be used as described on page 64.
E
WALKING BEAM PIVOT (E) - ONE FITTING
F
TOP LIFT LINK REAR PIVOT (F) - TWO FITTINGS
CASTER PIVOTS: (J) – FOUR FITTINGS
MODEL XX52 TRACTORS
J
G
FORKED CASTER SPINDLE BEARINGS (G) -
FOUR FITTINGS (16.5 & 11-16 TIRES ONLY)
To Next Page
