SAFETY
6. Install the transport pin as follows.
7. Remove pin from storage at aft end of APT.

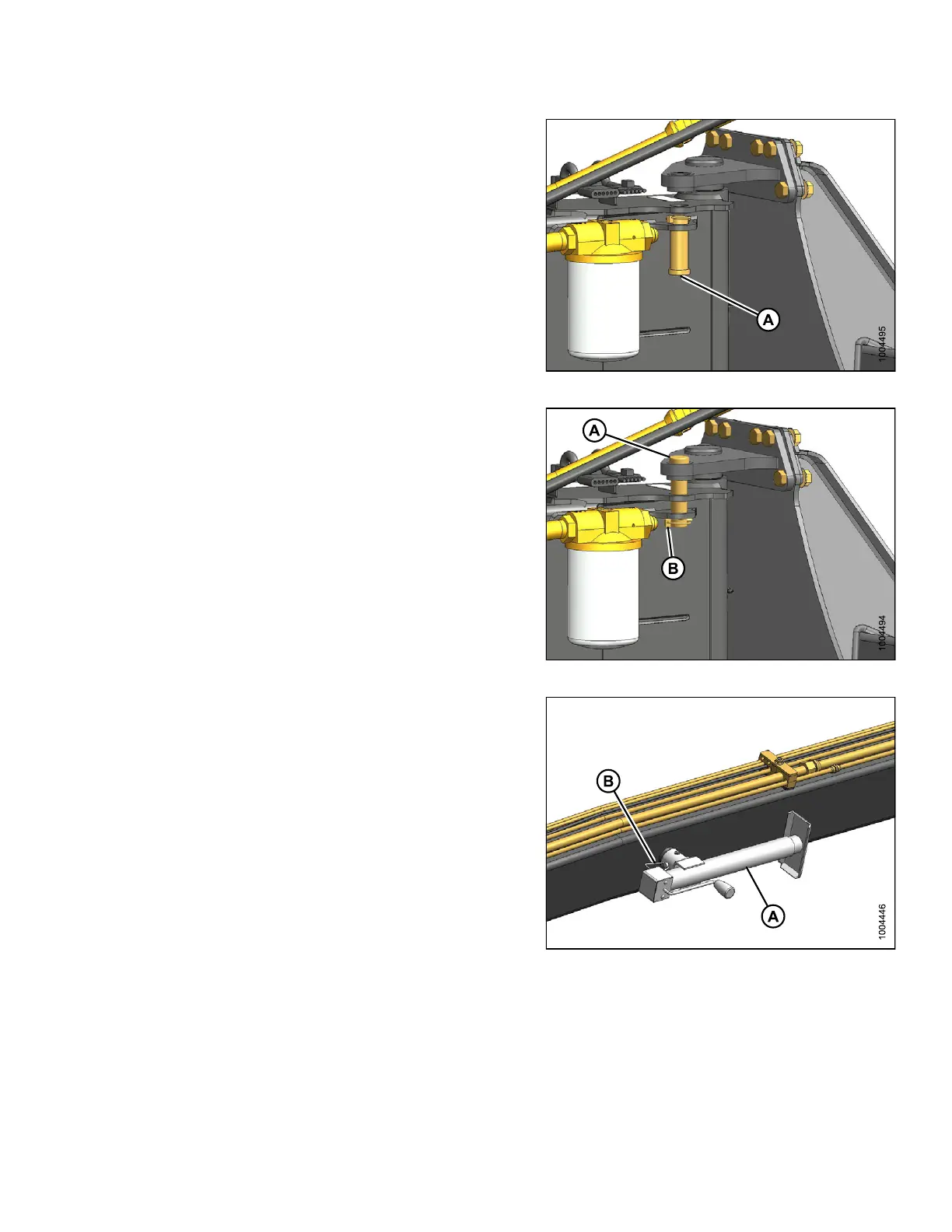

Figure 1.25: Transport Lock Pin
8. Line up holes in APT and frame, and install transport
lock pin (A) as shown.
9. Secure with lynch pin (B).
Figure 1.26: Transport Lock Pin
10. Check that jack is properly attached in storage position
on APT and secured with pin (B).
11. Keep Slow-Moving Vehicle (SMV) sign, reflectors, and
lights clean and visible at rear of mower conditioner.
12. Ensure tires are properly inflated.
13. For towing procedures, refer to one of the following:
• Towing Mower Conditioner with a Tractor
• Towing Mower Conditioner with a Truck
Figure 1.27: APT Jack
