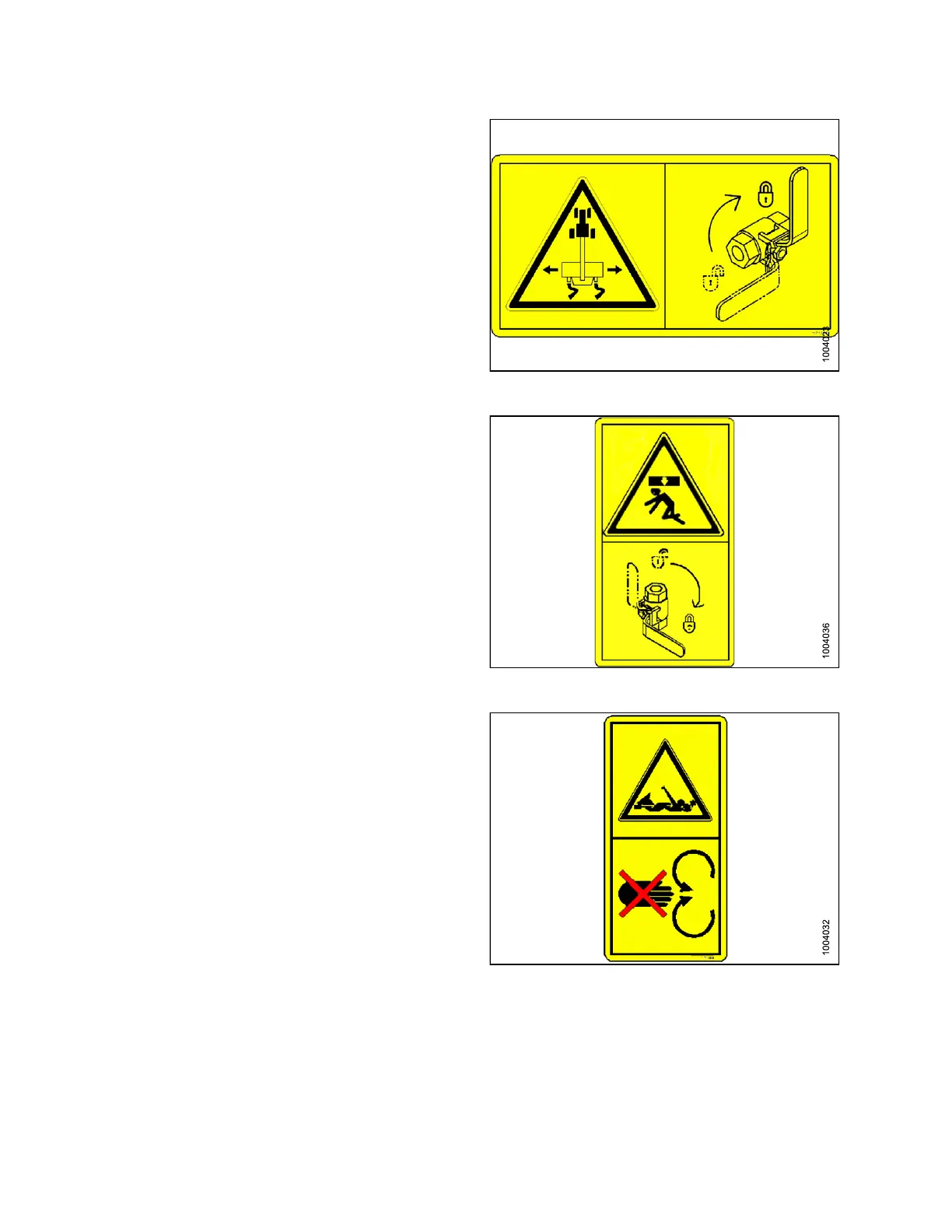

SAFETY
MD #171286
Lock pull-ty pe hydraulic for tra nsport
WARNING
• Charge cylinder with oil before towing.
• Rotate valve handle to lock in transport position.
• Max imum to wing spee d 20 mph (32 km/h ).
• Failure to comply could result in d eath or serious injury.
Figure 1.12: MD #171286
MD #171287
Install lock panel
WARNING
• Rotate valve handle to lock before going under unit.
• Failure to comply could result in d eath or serious injury.
Figure 1
.13: MD #171287
MD #171
288
Entang
lement hazard
CAUTIO
N
•Toavoi
d injury from entanglement with rotating auger,
stand
clear of header while machine is running.
Figure 1.14: MD #171288
169000_SUPPLEMENT_2
6 Revision D
