214683 117 Revision A

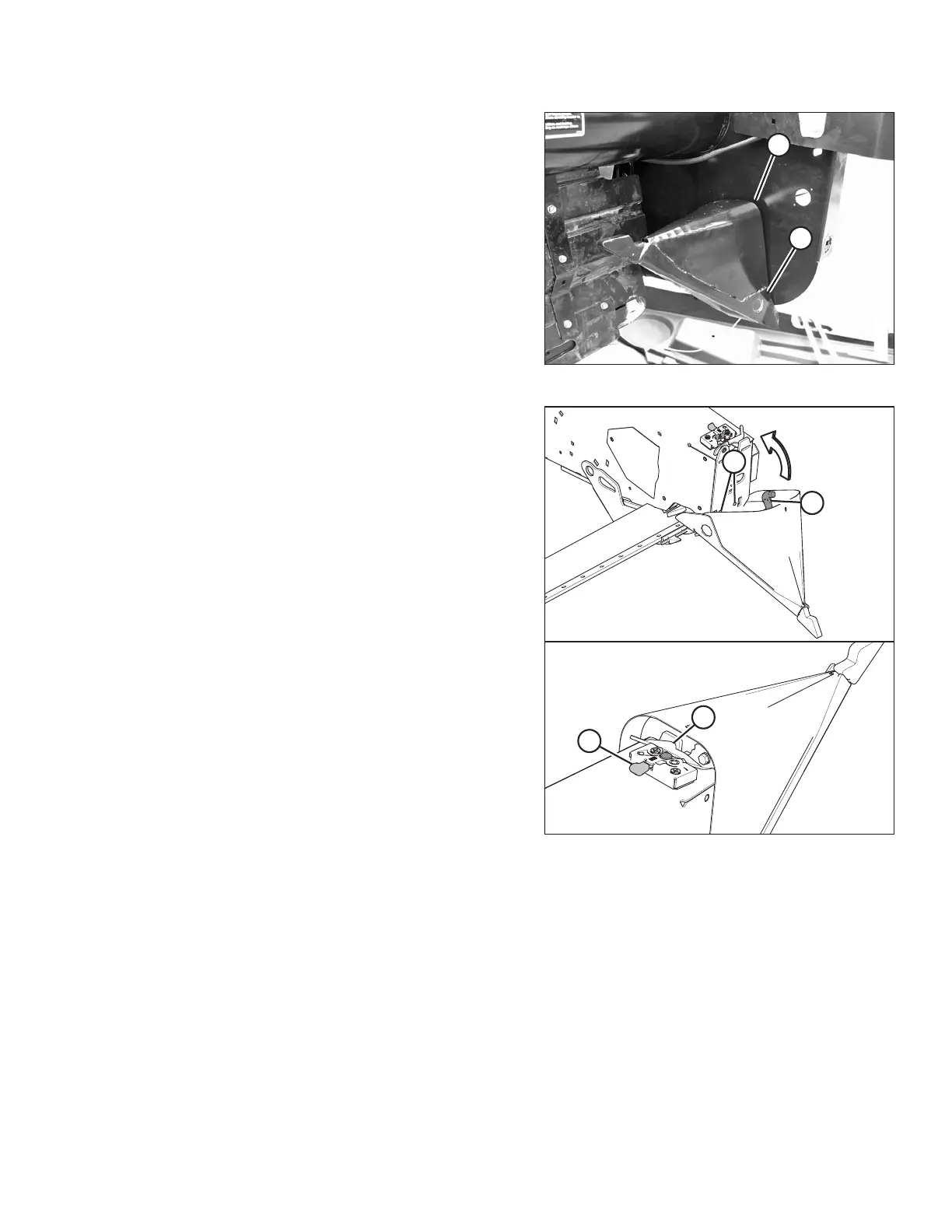

Figure 3.138: Stored Crop Divider
5. Remove crop divider from storage location by lifting
crop divider to disengage lugs (A) at lower end and then
lowering it slightly to disengage pin (B) from endsheet.
Figure 3.139: Crop Divider
6. Position crop divider as shown by inserting lugs (A) into
holes in endsheet.
7. Lift forward end of crop divider until pin (B) at top of crop
divider engages and closes latch (C).
8. Push safety lever (D) downwards to lock pin into
latch (C).
OPERATION
