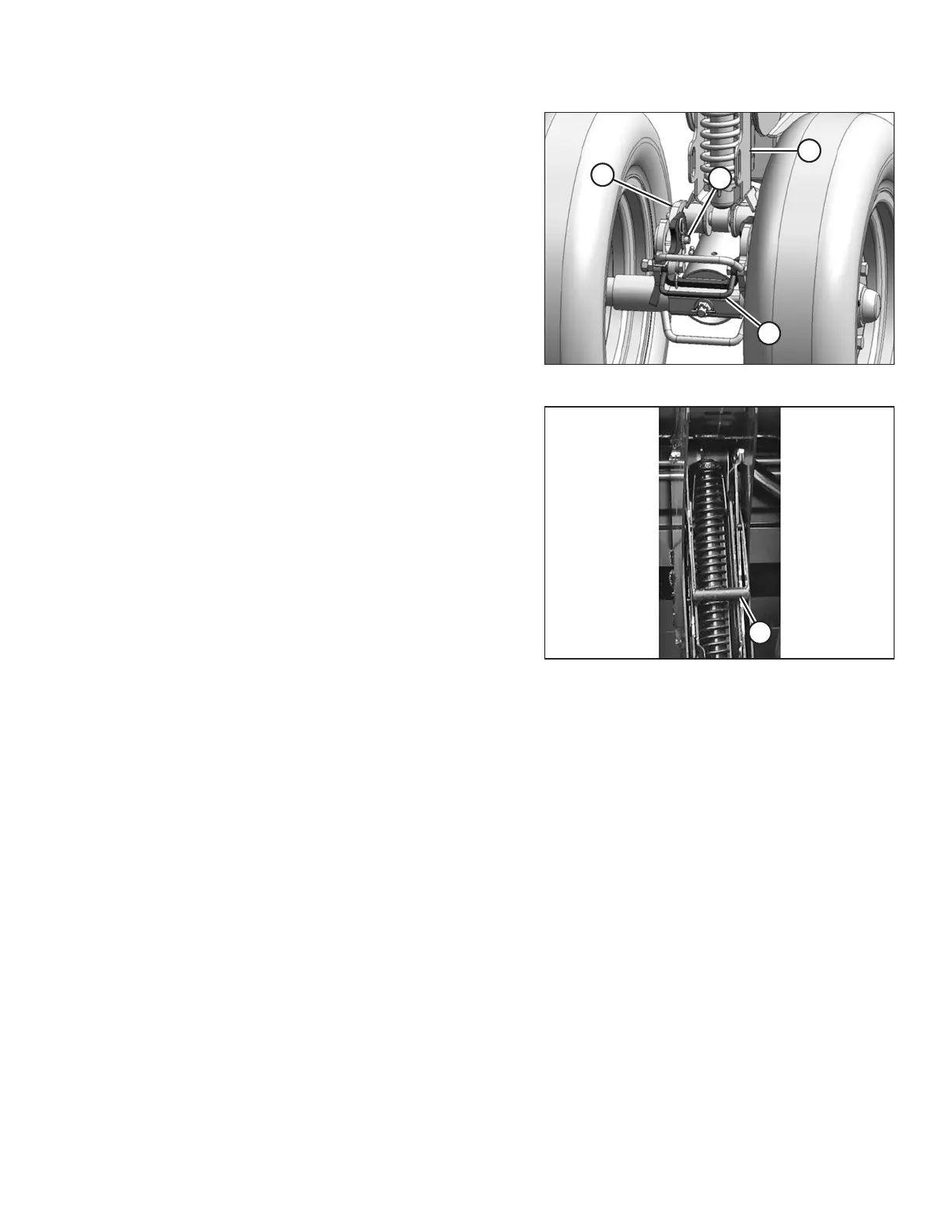

Figure 3.529: Left Front Wheels
3. Remove the hair pin and clevis pin (A).
4. Pull the latch handle (B) to release the suspension
linkage (C), and pull the suspension linkage away from
the spindle (D).
5. Lower the wheels slowly.
1005665
B
Figure 3.530: Suspension Linkage
6. Lower the handle (B) to lock.
