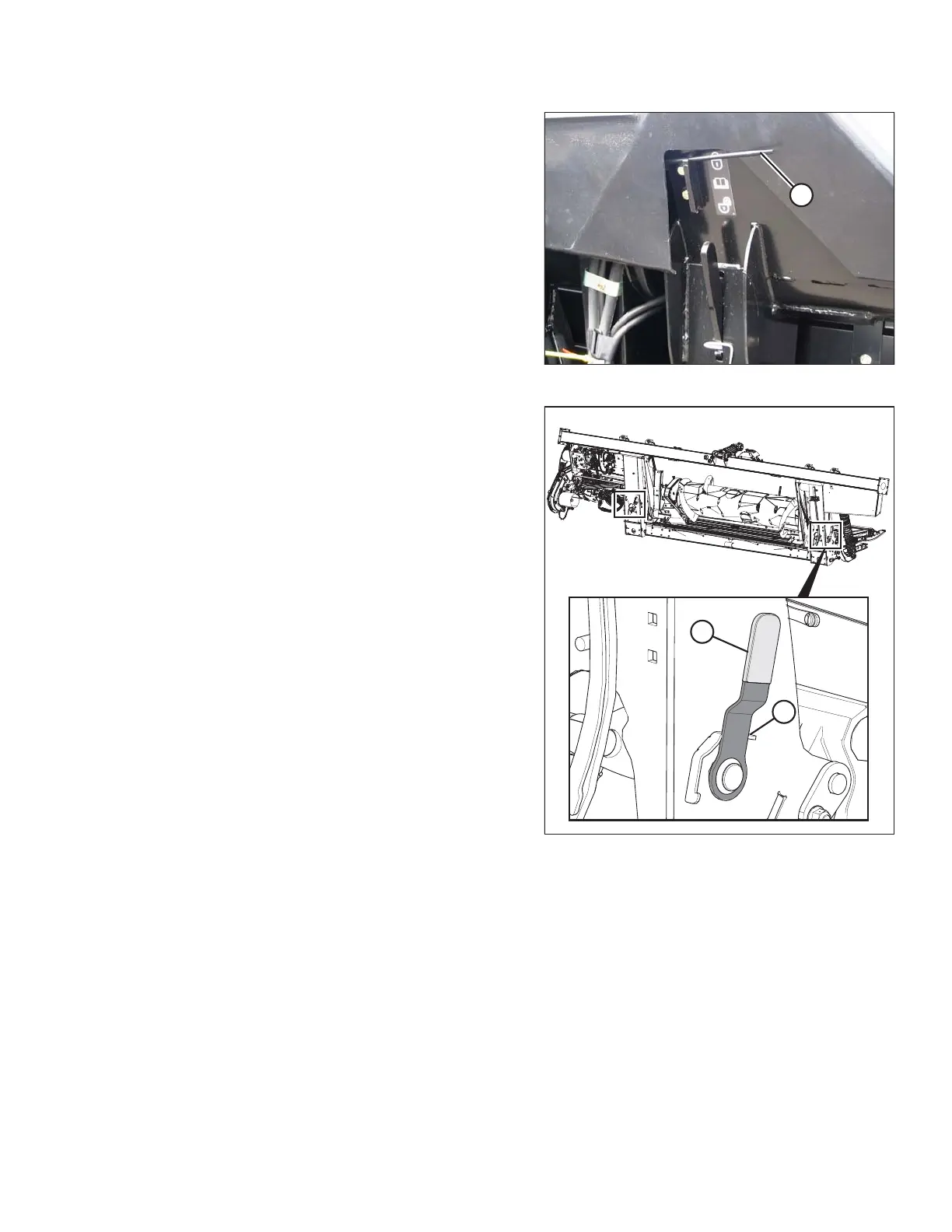

Figure 4.142: Wing Lock
6. Move lever (A) to lock position to engage wing locks.
1019711
A
B
Figure 4.143: Float Lock
7. Engage the float locks by pulling each float lock
handle (A) away from the float module and setting it in
the locked position (B).
