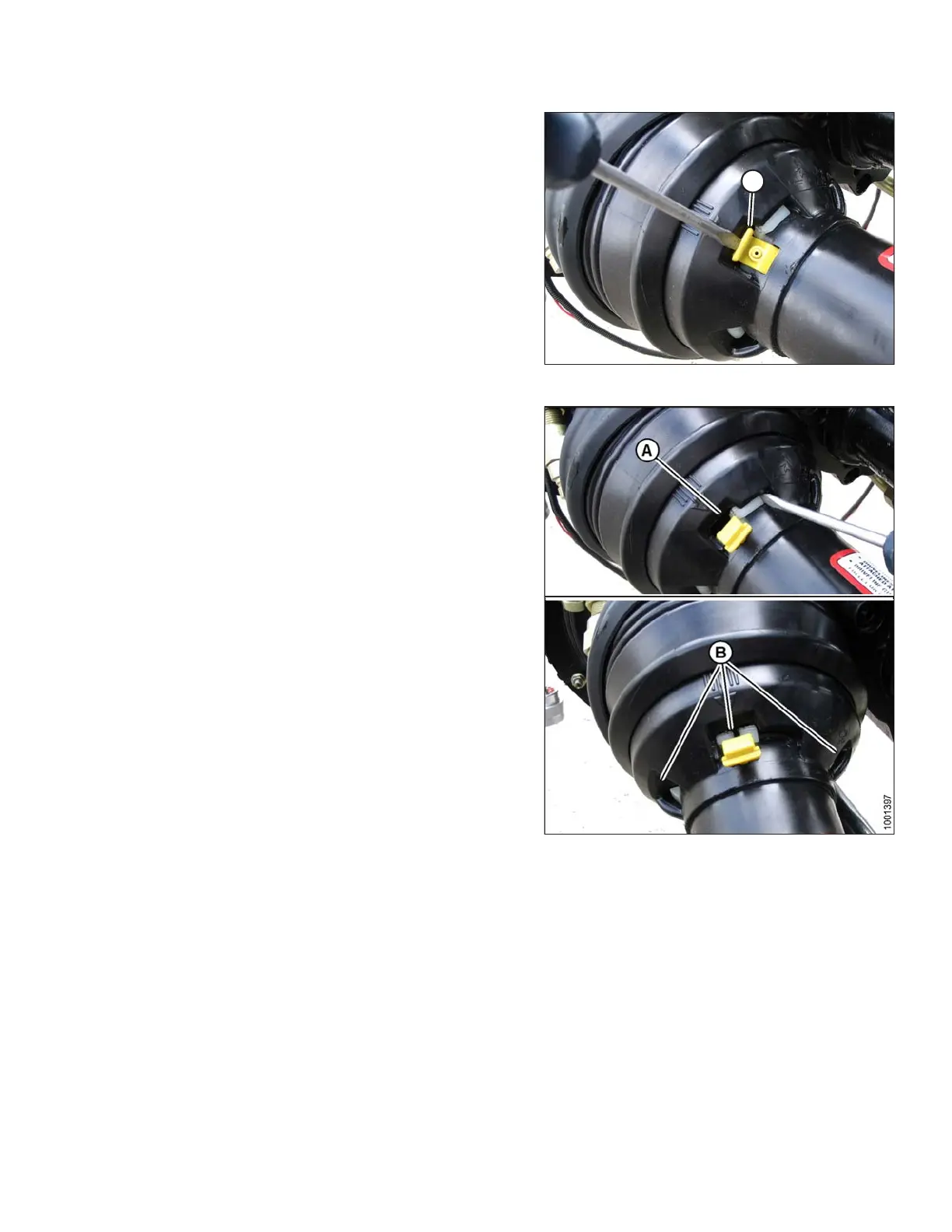

Figure 5.39: Driveline Guard
4. Use a slotted screwdriver to release grease
fitting/lock (A).
Figure 5.40: Driveline Guard
5. Rotate the driveline guard locking ring (A)
counterclockwise using a screwdriver until the lugs (B)
line up with the slots in the guard.
6. Pull the guard off the driveline.
