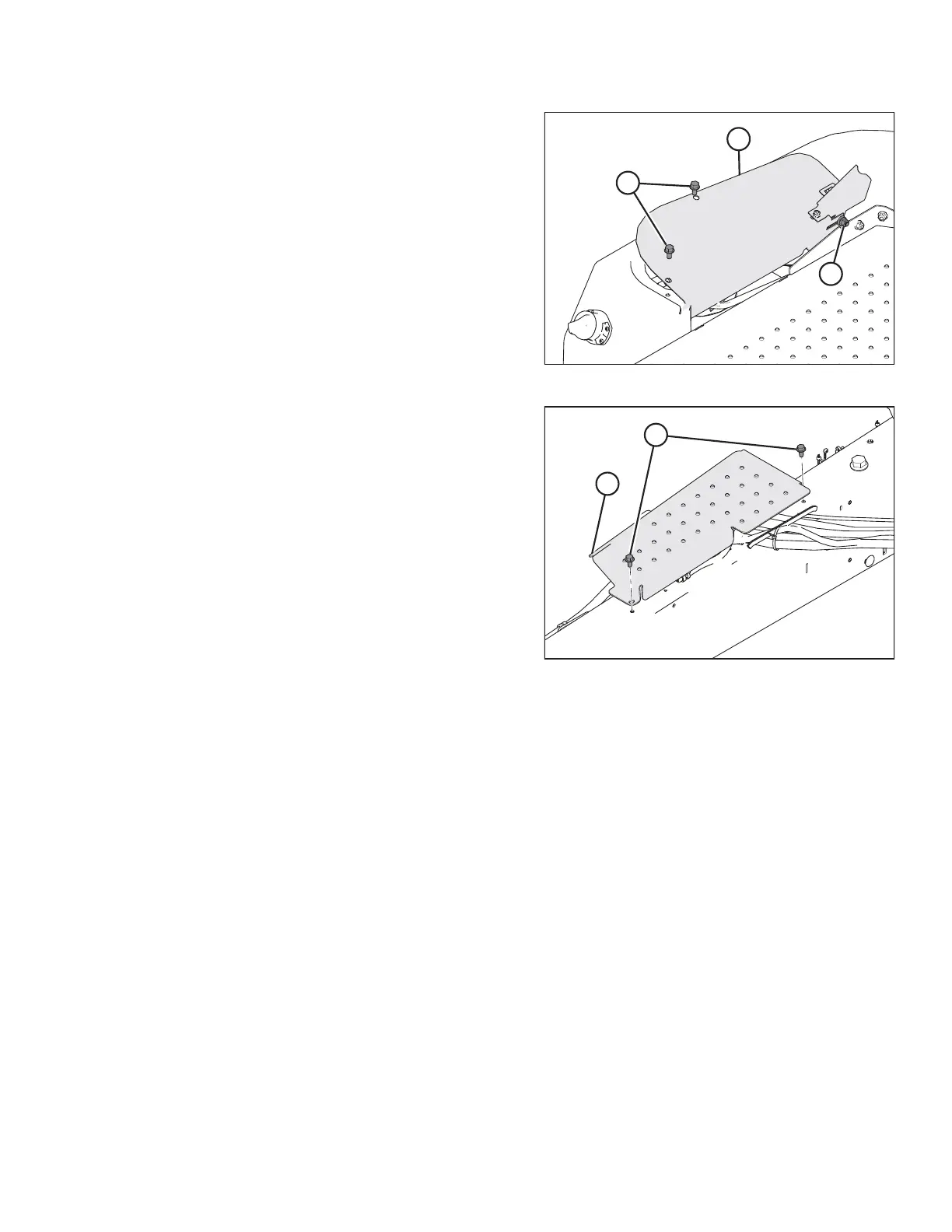

Figure 3.77: DEF Head Cover
18. Replace DEF head cover (C) and secure it with two top
bolts (A), and rear nut/bolt (B). Torque bolts (A) to 17 Nm
(12.5 lbf·ft).

$
%
Figure 3.78: DEF Hose Cover
19. Replace hose cover (B) and secure with two bolts (A).
ASSEMBLING WINDROWER
