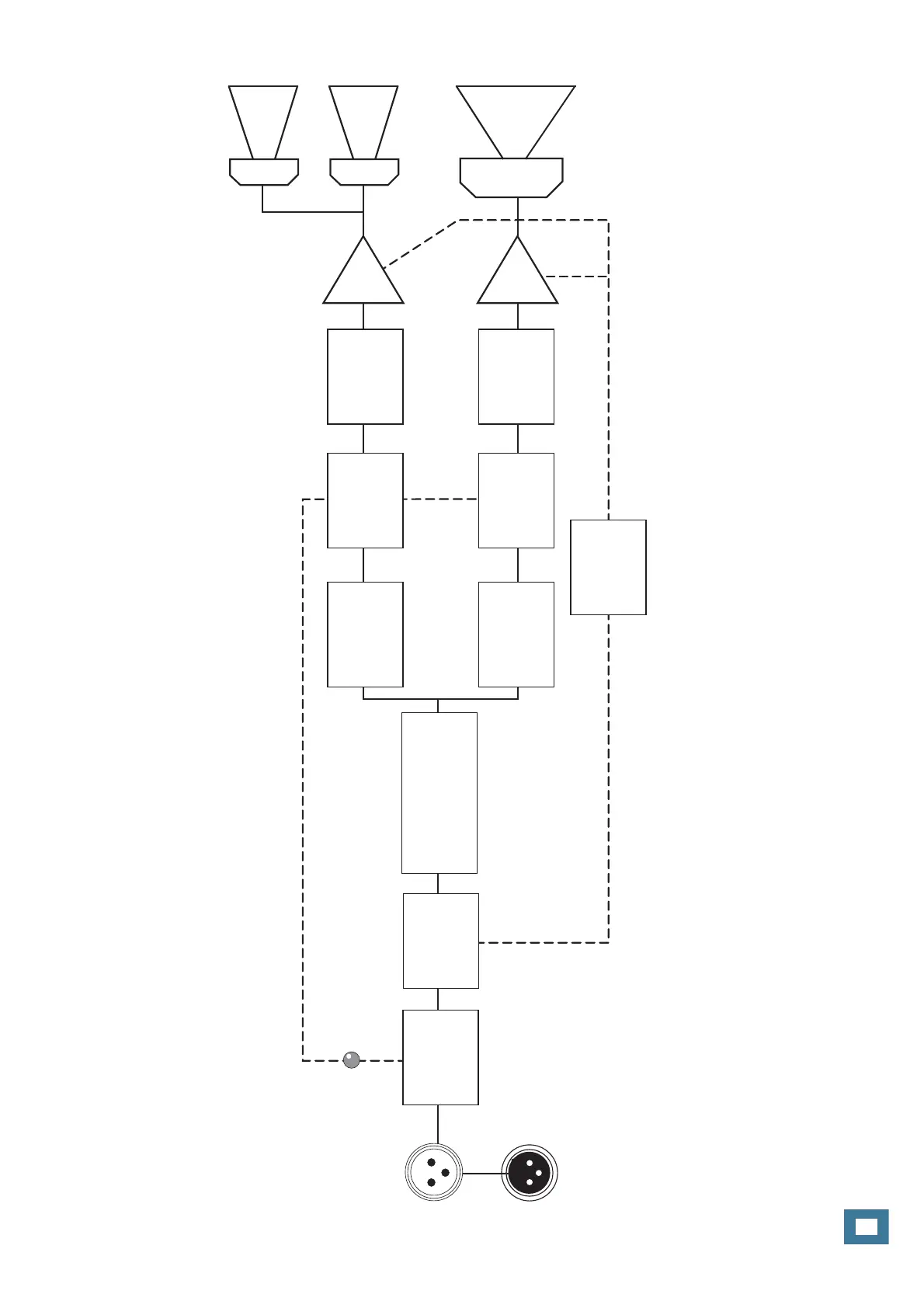

HDA Block Diagram
INPUT XLR
LOOP OUT XLR
HF
HF LF
Amp Amp
Digital to Analog Converter Digital to Analog Converter
Analog to Digital Converter
Signal / Limit LED
HD Loudspeaker Processing
Limiter Limiter
Mute
HD Loudspeaker Processing
1-2 3-4
3-4 Long Throw
Array Mode
Thermal Monitoring
