HDA: 2-WAY SYSTEM
This type of setup will typically be found at small indoor or outdoor gigs, weddings, parades, rental systems,
and/or used as vocal reinforcement. Another possibility is to place HDAs on the stage as front or side fi lls. This
helps provide sound to the fans near the stage where they may not be adequately covered by the PA.

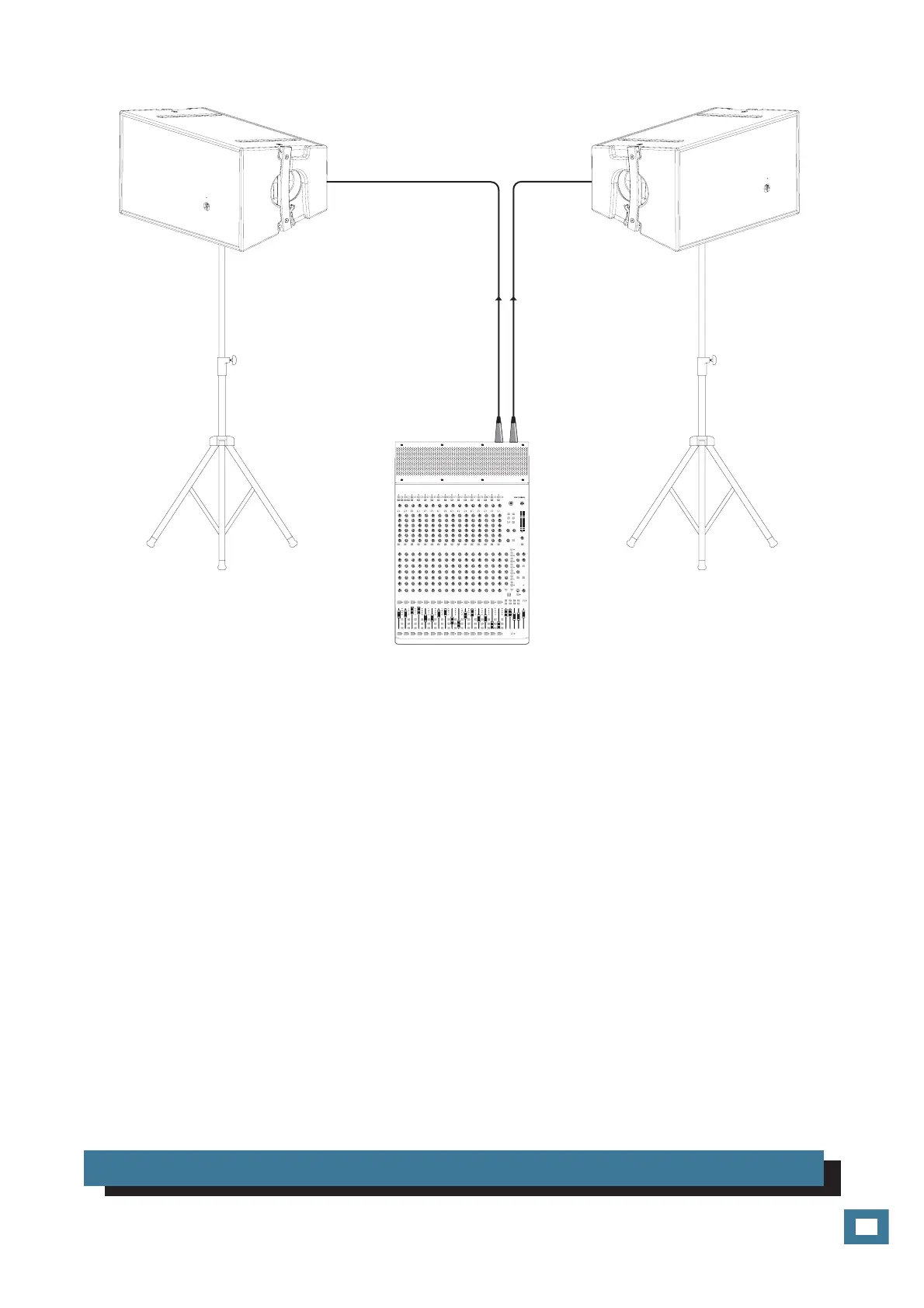

The left and right main outputs from a mixer feed the MAIN INPUTS of the HDAs. Since only one HDA is used
per side, the Array Mode switch should be in the ‘1-2’ position on both speakers.
HDA MAIN INPUT
HDA
MAIN
INPUT
Mixing Console
(Mackie Onyx 1640i shown)
L/R
MAIN
OUT
48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V 48V
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ
SOLO
SOLO
SOLO
SOLO
SOLO
SOLO
PREMIUM ANALOG MIXER w/ PERKINS EQ & FIREWIRE
