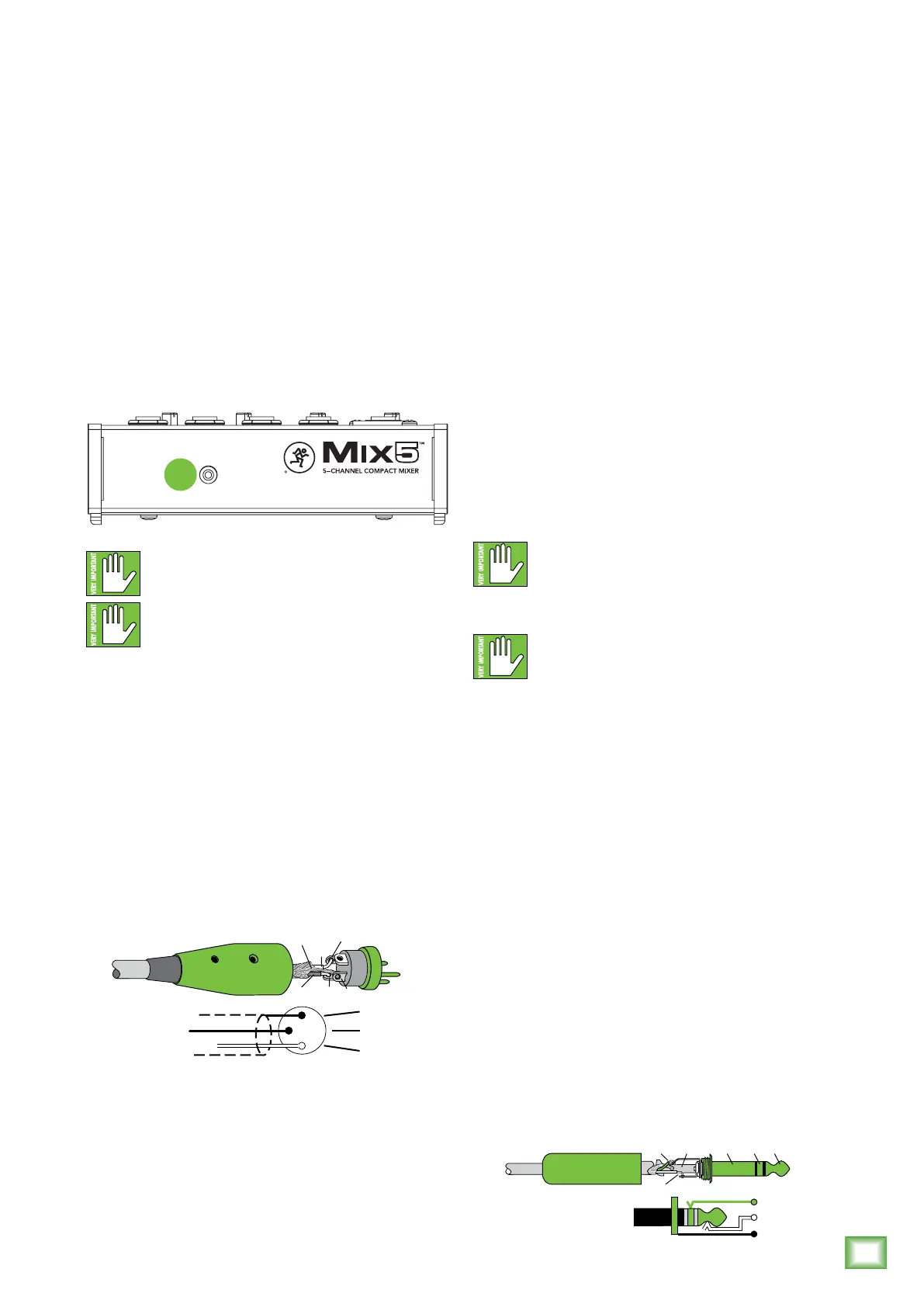

Front and Rear Panel Features
At the risk of stating the obvious, this is where
you plug everything in: power cord, microphones, line-
level instruments and effects, headphones, and the
ultimate destination for your sound: PA system,
laptop, etc. All features described in this section are
on top of the mixer, except for the power connector.
1. Power In and LED
This connection is where you connect the supplied
external AC power supply to provide AC power to the
mixer. Connect the external power supply to the Mix
Series mixer first, then plug the power supply into a
suitable and properly rated AC outlet. The mixer will
turn on automatically when connected and the power
LED will illuminate.
Make sure to use the correct external power
supply.
Mix mixers feature varying power connectors
based on country. Therefore, your power
connector may (or may not) look different
than the one displayed in the illustration above.
2. Mic Ins
This is a female XLR connector that accepts
a balanced mic or line level input from almost any
type of source. Be sure the cables are wired per
AES (Audio Engineering Society) standards:
Balanced XLR Input Connector
Pin 1 – Shield (Ground)
Pin 2 – Positive (+ or hot)
Pin 3 – Negative (– or cold)
Professional ribbon, dynamic, and condenser mics all
sound excellent through these inputs. The mic/line
inputs will handle any kind of level you can toss at
them, without overloading.
Not every instrument is made to connect directly to
a mixer. Guitars commonly need a Direct Injection (DI)
box to connect to the mixer's mic inputs. These boxes
convert unbalanced line-level signals from your guitar
1
2
3
1
SHIELD
COLD
HOT
SHIELD
COLD
HOT
3
2
1
Balanced XLR Input Connector
into balanced mic-level outputs and provide signal and
impedance matching. They also let you send your gifted
guitar renditions over long cables or audio snakes,
with minimum interference or high-frequency signal
loss. Ask your dealer or guitar maker about their
recommendations for a good DI box.
3. Phantom Power
Most modern professional condenser mics are
equipped for phantom power, which lets the mixer
send low-current DC voltage to the mic’s electronics
through the same wires that carry audio. (Semi-pro
condenser mics often have batteries to accomplish the
same thing.) “Phantom” owes its name to an ability to
be “unseen” by dynamic mics (Shure SM57/SM58, for
instance), which don’t need external power and aren’t
affected by it anyway.
Phantom power on the Mix8 and Mix12FX is globally
controlled by the phantom power switch. (This means
the phantom power for all XLR inputs is turned on and
off together.) The Mix5 XLR input always provides +15V.
Never plug single-ended (unbalanced)
micro phones, or ribbon mics into the mic
input jacks of a Mix5 [always] or if the
phantom power switch is engaged [Mix8, Mix12FX].
Do not plug instrument outputs into the
mic input jacks with phantom power on
unless you know for certain it is safe to do so.
4. Line Ins
These 1/4" jacks share circuitry (but not phantom
power) with the mic preamps, and can be driven by
balanced or unbalanced sources at almost any level.
You can use these inputs for virtually any signal you’ll
come across since there is –20 to +30 dB of gain
(50 dB range) available for line inputs via the gain
knob. Always make sure to perform the level setting
procedure on page 5.
TRS stands for Tip-Ring-Sleeve, the three connections
available on a stereo 1/4" cable. This allows for a direct
connection to the channel input jacks. Be sure the
cables are wired per AES (Audio Engineering Society)
standards:
Balanced 1/4" TRS Connector
Sleeve – Shield (Ground)
Tip – Positive (+ or hot)
Ring – Negative (– or cold)
SLEEVE
TIP
SLEEVE
TIP
RING
RING
TIP
SLEEVERING
Balanced 1/4" TRS Connector
