Mackie Mix5 User Manual

6
Mix5 • Mix8 • Mix12FX
Mix5 • Mix8 • Mix12FX
Hookup Diagrams

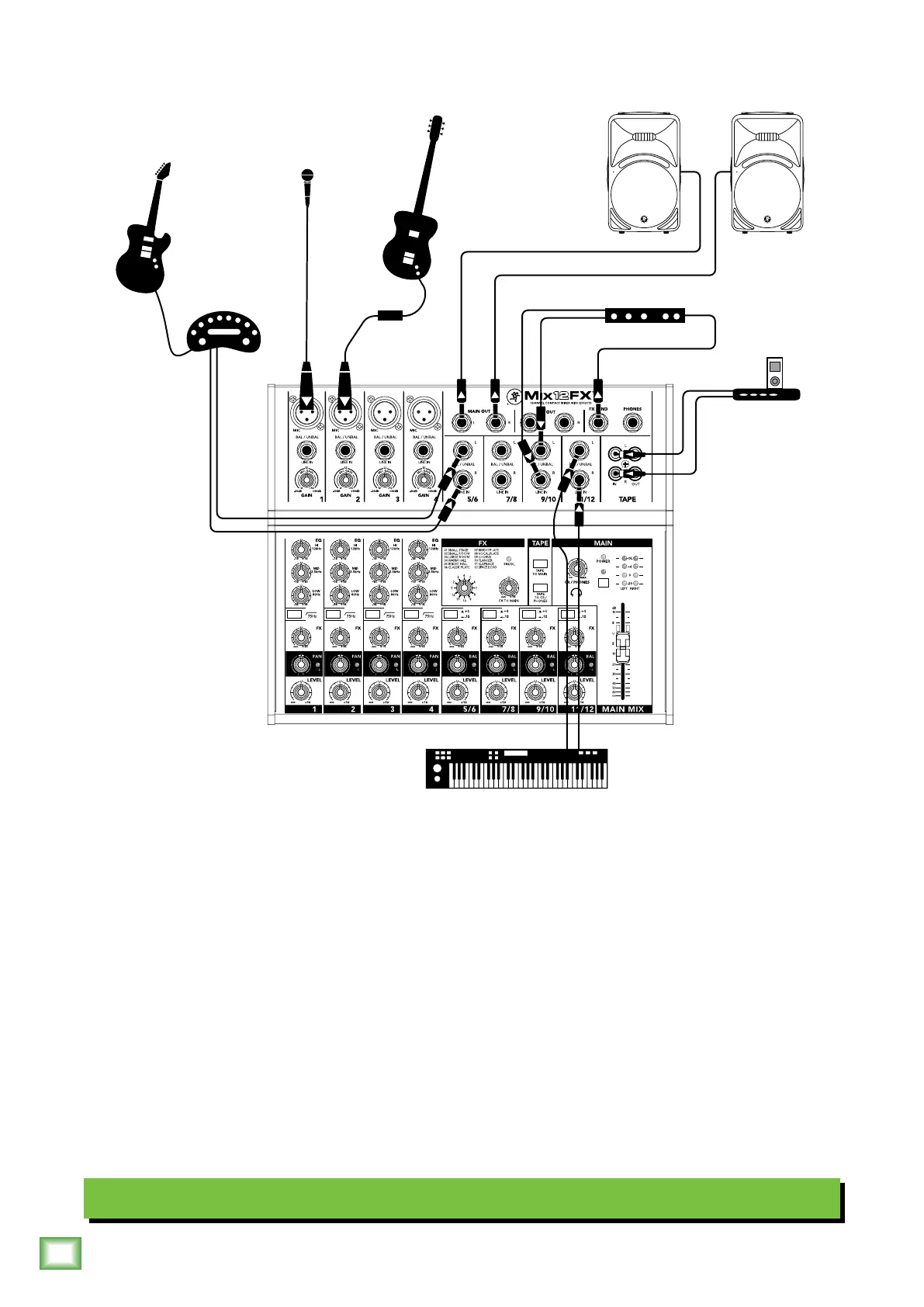

Live Stereo PA System
Mix Series mixers are powerful tools that offer a lot of features, but are still easy to set up and use.
Let's take a look at an example of using a Mix12FX in a live PA environment.
In this example, a microphone is connected to the channel 1 mic input, the rhythm guitar to the channel
2 mic input via Direct Injection (DI), the lead guitar plays through a stereo effects processor plugged into
the channel 5/6 line inputs and a synth is connected to the channel 11/12 line inputs.
The FX send jack connects to an external effects processor which is routed back into the channel 9/10
line inputs, while an MP3 player is connected to the RCA tape inputs to provide entertainment between
sets. The 1/4" L/R main outs connect to a pair of SRM450v3 powered loudspeakers to please your
audience.
48V

Mackie Mix5 Specifications

General

Frequency range	20 - 30000 Hz
Channels quantity	5 channels
Line inputs (RCA)	1
Equalizer bands quantity	2
Microphone input impedance	2000 Ω
DJ mixer	-
Product color	Black
Video capability	No

Weight and Dimensions

Depth	196 mm
Width	140 mm
Height	43 mm
Weight	600 g
Package depth	287 mm
Package width	165 mm
Package height	84 mm
Package weight	900 g
