Page 7 of 20

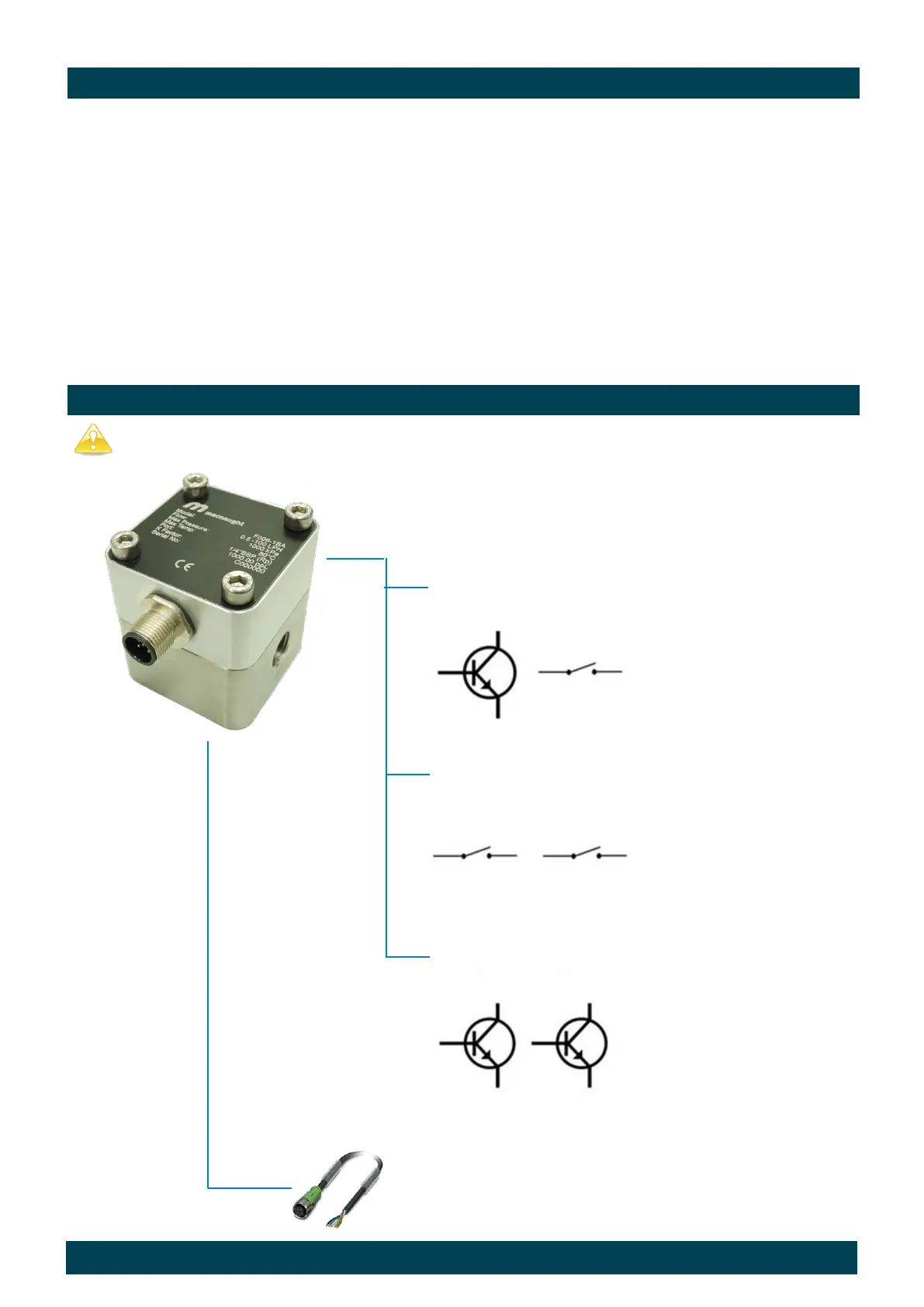

Pulser Wiring Instructions - Models M,F, CR and S - If fitted with DIN connector
Sensor Cable (1.5 meters)
Part number: MXD-C1.5S
1 hall & 1 reed
Hall Effect Reed
Dual Reed
Reed Reed
Dual Hall
Hall Effect 1 Hall Effect 2 Temperature
Notes
Analogue Output (4-20mA)
Analogue outputs are available as an auxiliary display signal by including the following LCD displays with
your flow meter. These may be fitted to the meter or remote (wall mount) types.
Small display with analogue output module Remote or Meter Mount
Large display with analogue output module Remote Mount only
Note: Consult the following instruction sheets if the flow meter is fitted with an LCD Display.
Display Part Number: DR DRA ER ERB ERA ERS
Instruction Sheet: DR013 DR014 MS574 MS392 MS476 MS531
