9 Network Installation
© 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com
Controller 4 Operation Manual 90-30027-00 Rev A-01 Date: 032720

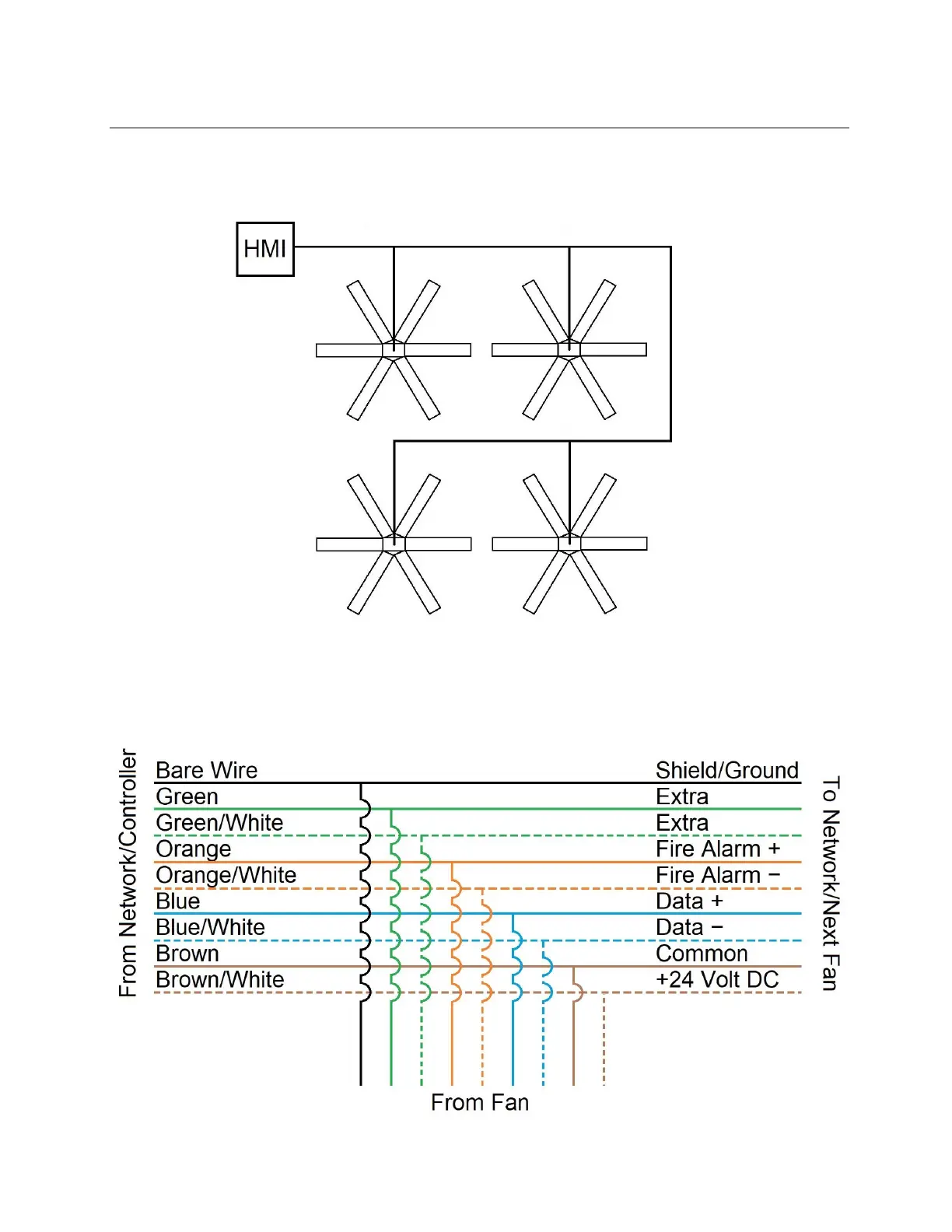

AVD 370 RJ45 Wiring Instructions
AVD 370 fans with RJ45 ports on the board are wired in T-splices. Each T-splice will consist of 3
CAT5e cables. A properly wired T-splice network is shown below:
Typical T-Splice of CAT5e Network Cable
