T-Splice Connection Method for AVD 370 Fans cont.

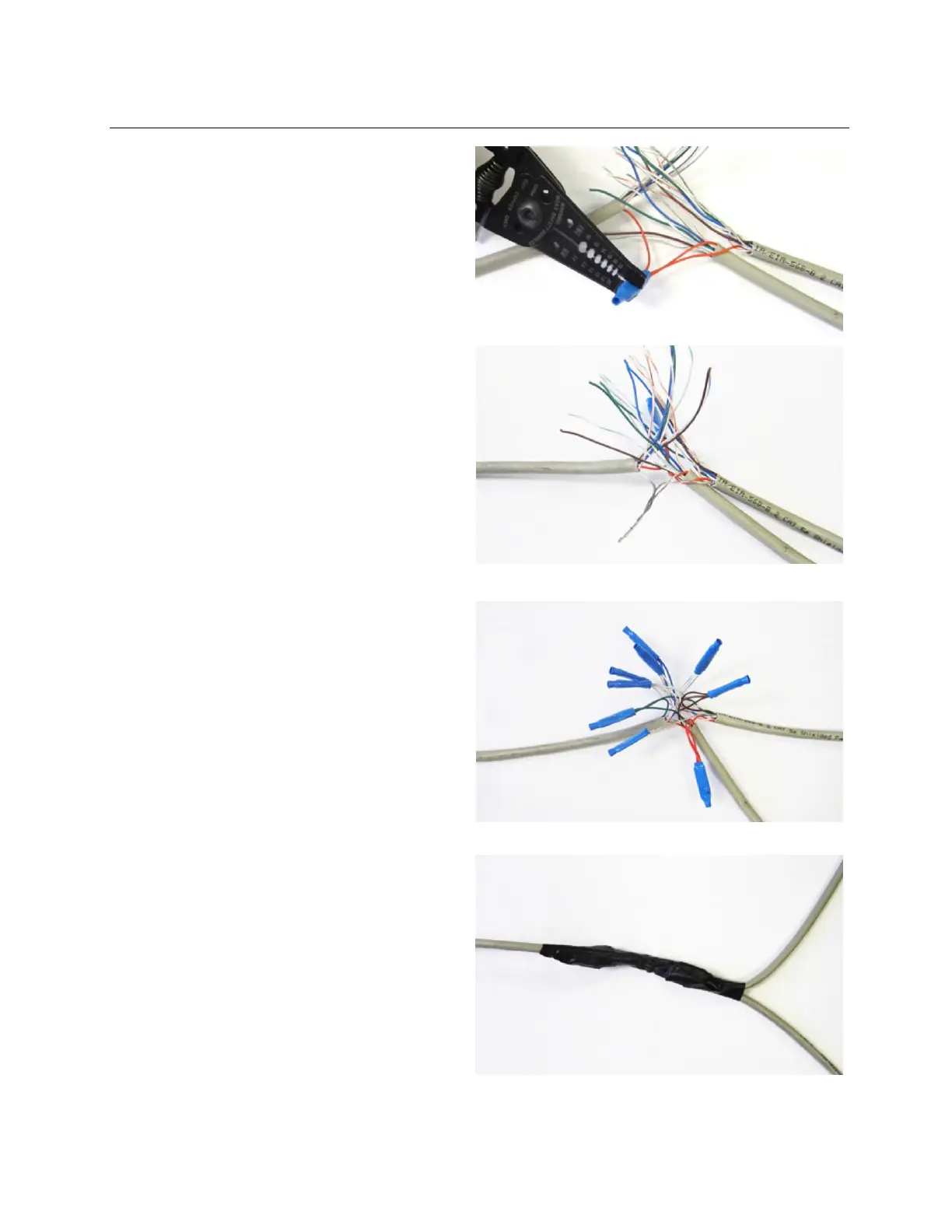

5. Place a gel filled bean crimp onto the end
of the three (3) wires and use a small
crimper or pliers to crimp the bean tight
on the wires.
6. Double check that the three (3) drain
wire/bare wires are also crimped together
as this is what continues the shielding
throughout the network. The shielding
and drain wire MUST be connected to
Earth Ground at only one point of the
cable run.
7. Repeat steps 3-5 for all the wires.
8. Once all the wires are crimped, carefully
twist the wires up. Then fold them back
and tape them up with electrical tape to
clean up your wiring.
