GLULAM MOUNTING ASSEMBLY - CEILING
• Attach the glulam brackets to the top of the Universal Mount at a width that is wide enough to accomodate the glulam (the glulam
brackets are adjustable as shown in the illustration above).
• Attach the extension to the bottom of the Universal Mount with provided hardware pack.
• Attach the glulam brackets to the glulam via 1/2’’ grade 5 bolts (long enough to go through the entire beam with nylon lock nuts).

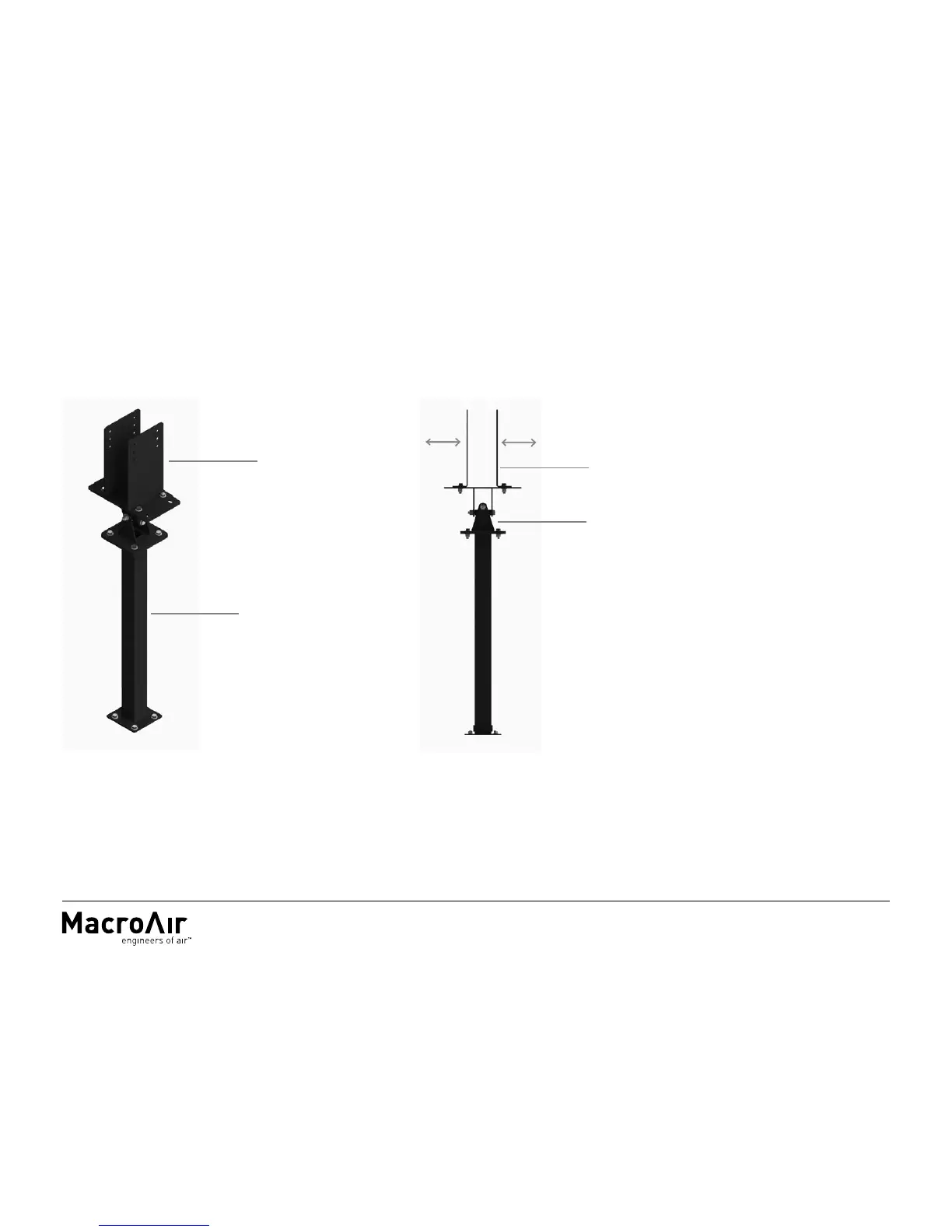

Glulam Brackets
A Minimum of Four
(4) Through Bolts are
Required
Extension
Universal Mount
