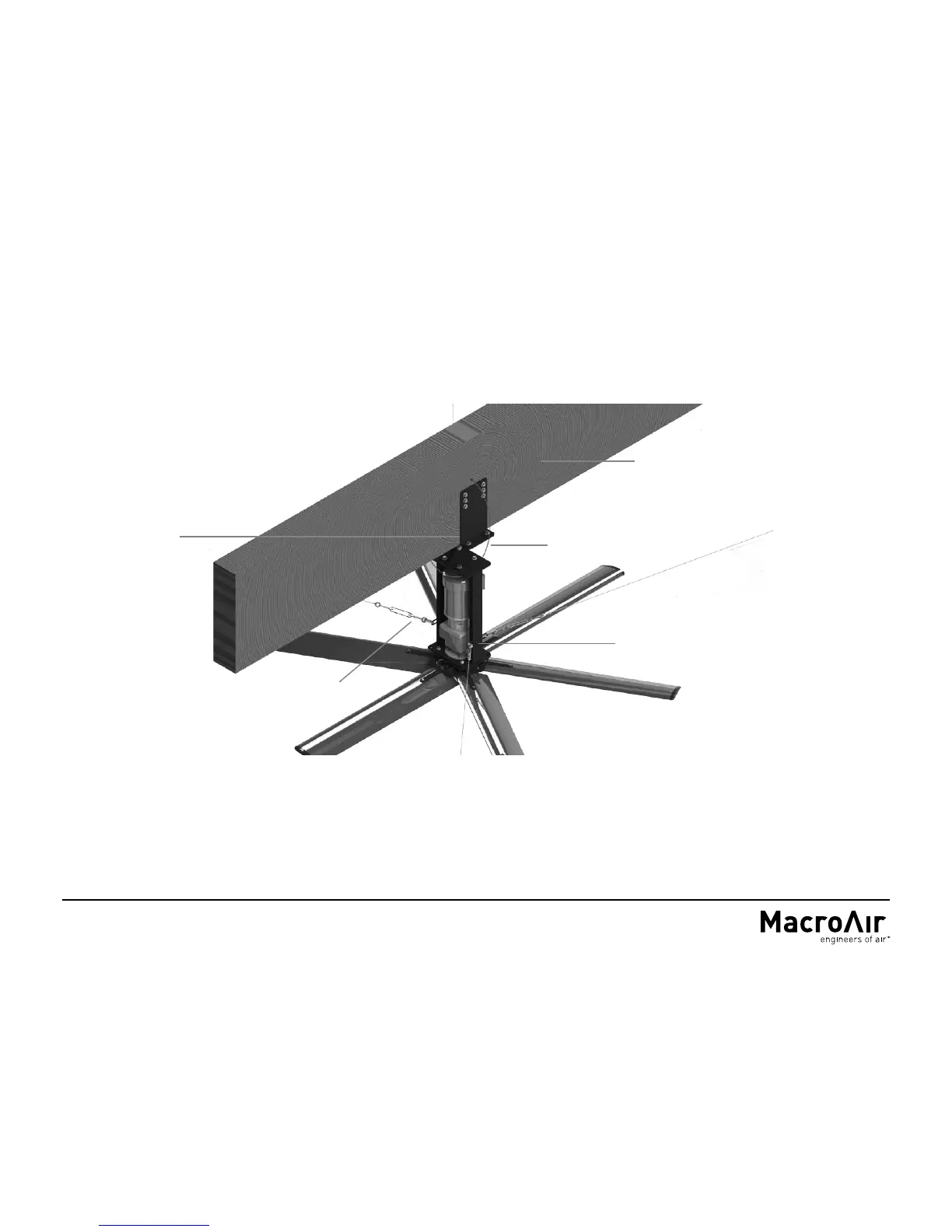

GLULAM MOUNTING ASSEMBLY - CEILING
Mounting Brackets
Guy Wire with
Turnbuckle
Guy Wire Attachment
Points
• Attach the glulam brackets to the glulam and attach the top of the fan frame to the
bottom of the extension with the provided hardware.
• The highest bolt hole should not be below the beam’s center line unless the glulam is
too tall.
Safety Cable
Glulam
AirEco not pictured.
Installation methods
are the same.
