Madas MTC10 - Technical Data; Commissioning the Device; Operations Prior to Installation

IT
EN
FR ES
17
Madas Technical Manual - 9|9.4 - REV. 0 of 8
th
Feb 2019 MTC10
1
2
3
5
4
7
6
13
piping
combuson
head
discharge in open air
internal thermal unit
external roof
8
9
Power
12
11
10

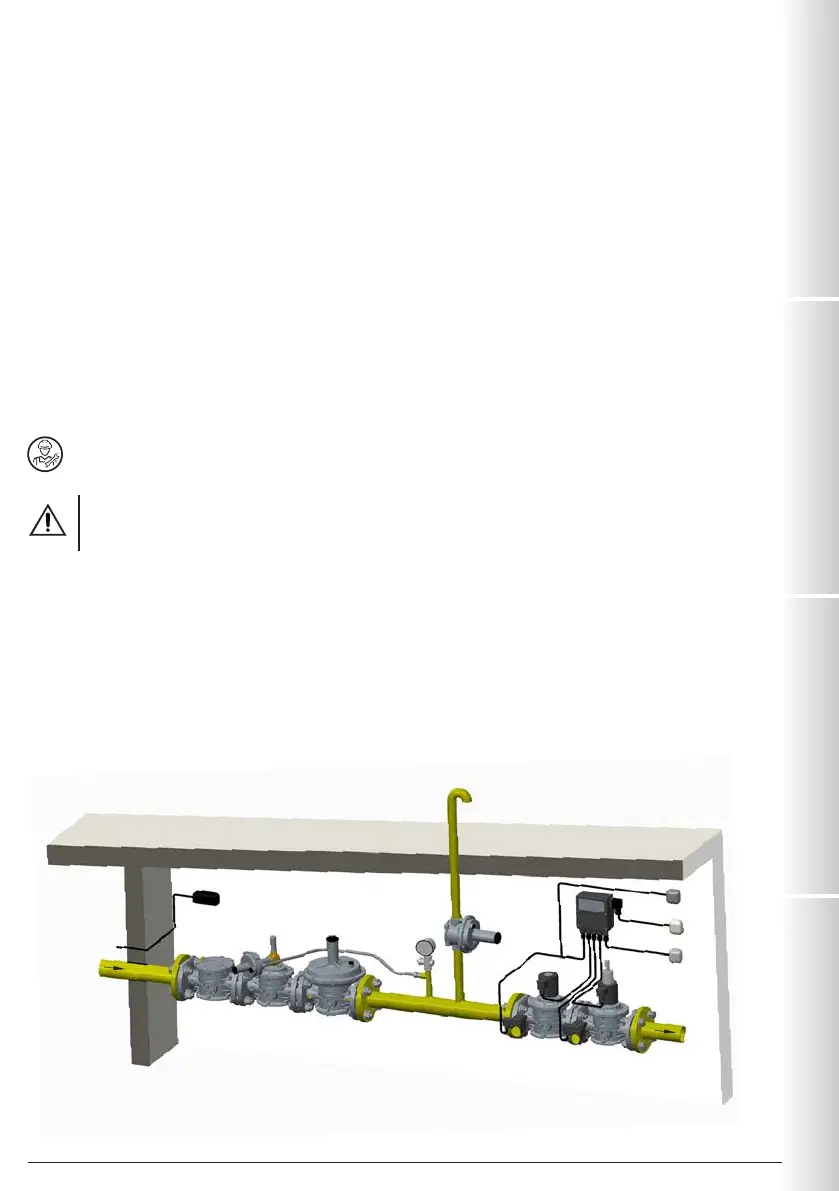

3.2  GENERIC EXAMPLE OF AN INSTALLATION
(Burner Ramp)
1. FM gas filter
2. OPSO series MVB/1 MAX shut off valve
3. RG/2MC pressure regulator
4. Minimum pressure switch
5. EVPC/NC automatic solenoid valve with fast opening
6. Maximum pressure switch
7. EVPCS/NC automatic solenoid valve with slow opening
8. External reset
9. Burner control
10. MTC10 leak test device
11. MVS/1 relief valve
12. Pressure gauge and relative button
13. Gas detector
2.0  TECHNICAL DATA
• Ambient temperature : -20 ÷ +60°C
• Supply voltage : 110 V/50-60 Hz - 230 V/50-60 Hz*
• Power supply tolerance : -15% ... +10%
• Electric wiring : cable gland PG9
• Absorbed power : 3.2 VA (only of the device)
• Output for operation : 2 A
• Output for fault : 1 A
• Fuse : 6.3 A delayed
• Test cycle : approx. 60 s
• Protection rating : IP65
• In compliance with : EN 1643:2000
Directive EMC 2014/30/EU - Directive LVD 2014/35/EU
* Only single-phase, the device does not work if powered with three-phase voltage.
3.0  COMMISSIONING THE DEVICE
3.1  OPERATIONS PRIOR TO INSTALLATION
• Before start-up, make sure that all the instructions on the rating plate are observed;
• Cut off power prior to proceeding with wiring;
• Provide a protection against impacts or accidental contacts if the device is accessible to unqualified personnel.
3.3  INSTALLATION IN PLACES WHERE THERE IS THE RISK OF EXPLOSION (DIRECTIVE 2014/34/EU)
The device is not suitable for use in potentially explosive areas.
