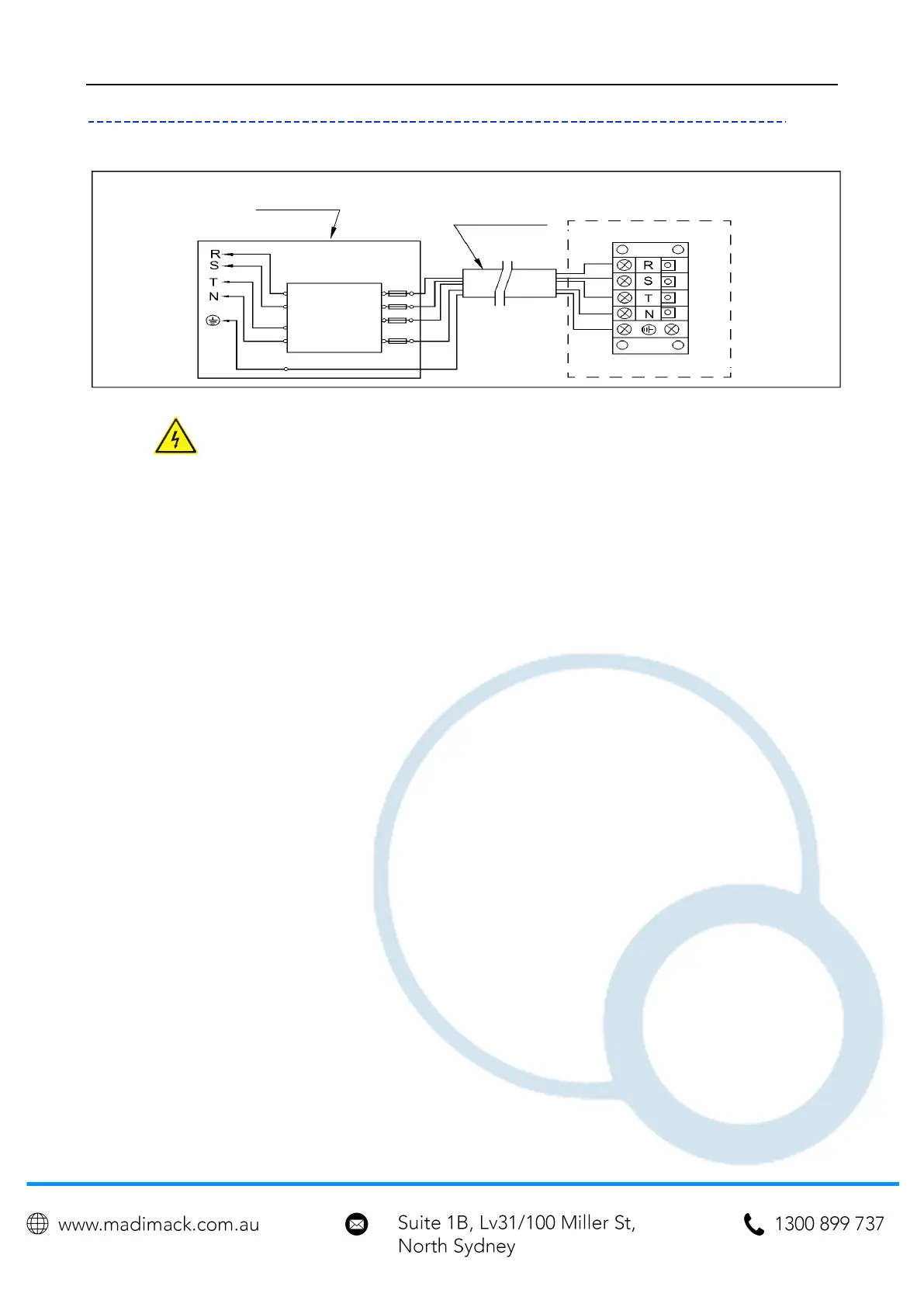

3. Electric wiring Diagram
For power supply: 400V 50Hz
Note: 1) Must be hard wired, plug is not allowed.
2) The swimming pool heat pump must be earthed
Current protection devices must be installed in accordance with local electrical regulations
Please see appendix for further wiring information including pump control and auxiliary input
Distribution Box(Not provided)
Swimming Pool Heat Pump Wiring Board
