Maeda MC-285C - Travelling Operation Units; Crane Operation Units

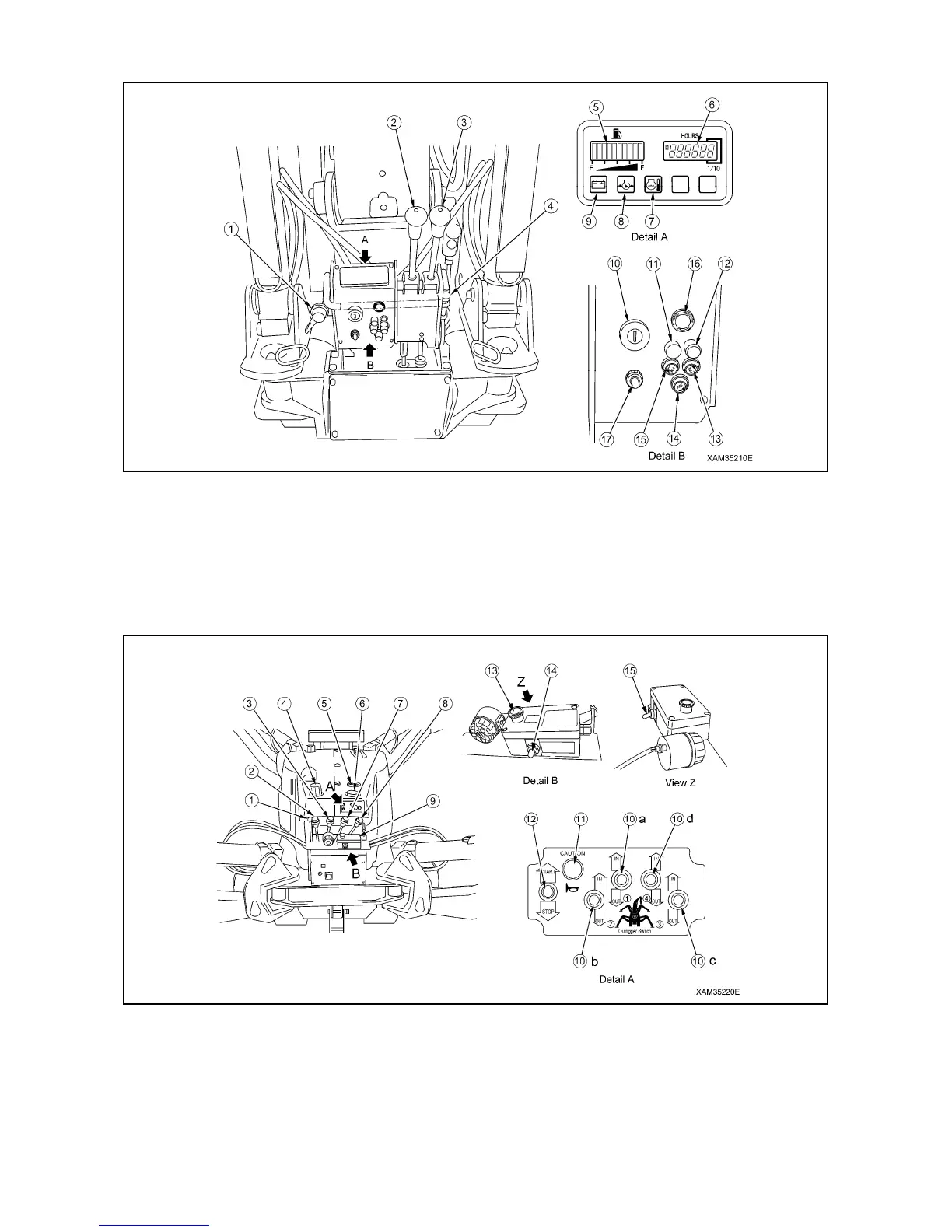

1. TRAVELLING OPERATION UNITS
(1) Acceleration lever
(2) Left travelling lever
(3) Right travelling lever
(4) Travelling lever stand lock lever
(5) Fuel gauge
(6) Hour meter
(7) Engine water temperature monitor
(8) Engine oil pressure monitor
(9) Charge monitor
(10) Main starter switch
(11) Horn switch
(12) Working light switch
(13) Fuse (15A)
(14) Fuse (20A)
(15) Fuse (15A)
(16) Emergency engine stop switch
(17) Engine and electric motor switch
(MC285CRM-E only)
2. CRANE OPERATION UNITS
(1) Acceleration lever
(2) Slewing lever
(3) Boom telescoping lever
(4) Outrigger mode lamp
(5) Load meter
(6) Level
(7) Winch lever
(8) Boom derricking lever
(9) Alarm buzzer
(10) Outrigger control switch
(a) Outrigger [1] control switch
(b) Outrigger [2] control switch
(c) Outrigger [3] control switch
(d) Outrigger [4] control switch
(11) Horn switch
(12) Auxiliary starter switch
(13) Emergency engine stop switch
(14) Hook stowing switch
(15) Emergency stop cancel switch
