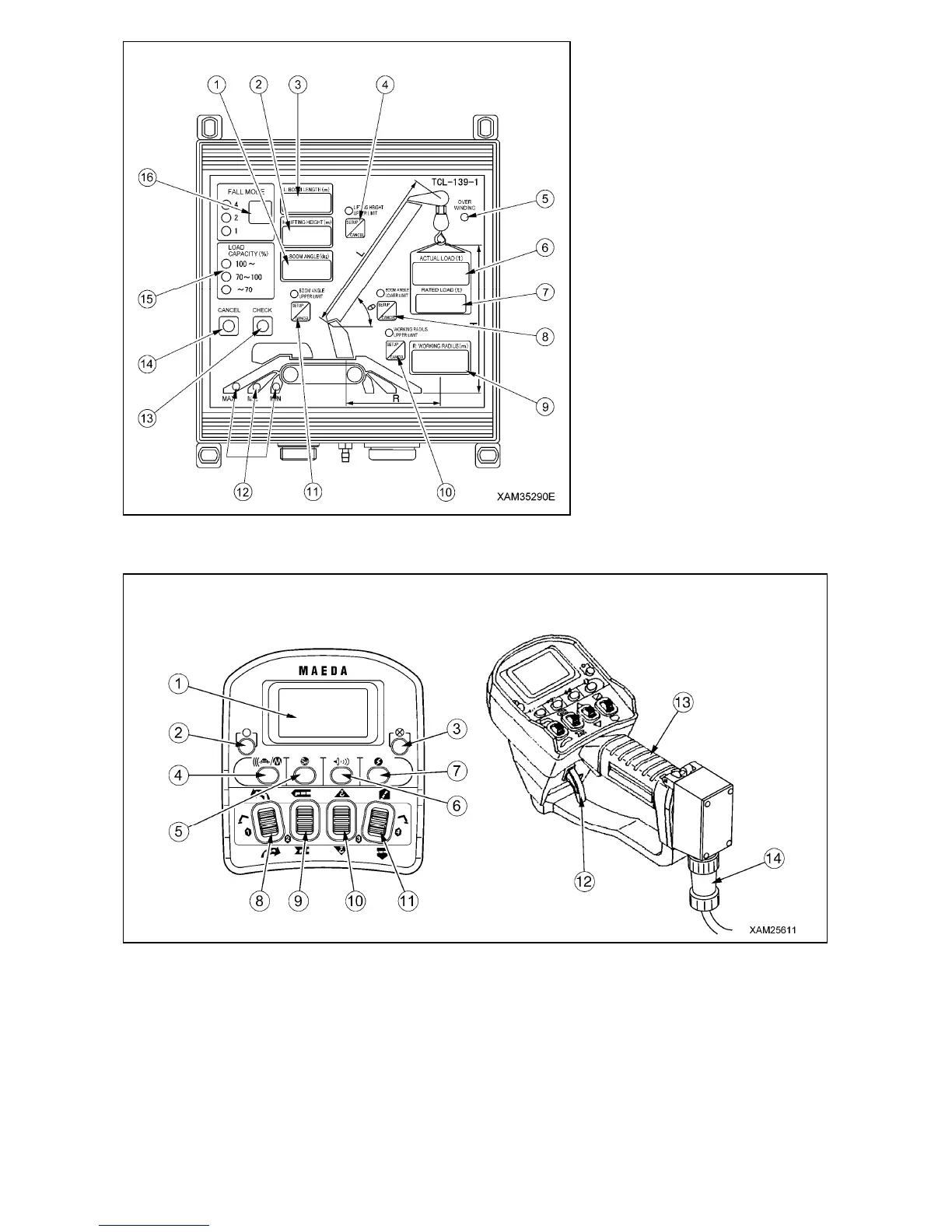

(1) Boom angle display
(2) Lifting height display
(3) Boom length display
(4) Boom lifting height upper limit switch
(5) Over hoist detection LED (Red)
(6) Actual load display
(7) Rated total load display
(8) Boom angle lower limit switch
(9) Working radius display
(10) Working radius upper limit switch
(11) Boom angle upper limit switch
(12) Outrigger extension LED (Orange)
(13) Check switch
(14) Cancel switch
(15) Load capacity LED (Orange)
(16) Fall mode selector & Searcher hook
mode switch
MOMENT LIMITER DISPLAY
8. REMOTE CONTROL
TRANSMITTER
(1) LCD Screen (8) Slewing/No.1 Outrigger Operation Lever
(2) Start/Reset Button (9) Boom Telescoping/No.2 Outrigger Operation Lever
(3) Stop/EMO Button (10) Hook Raising and Lowering/No.3 Outrigger Operation Lever
(4) Speed/Mode Button (11) Boom derricking/No.4 Outrigger Operation Lever
(5) Setting Button (12) Accelerator Lever
(6) Horn Button (13) Grip
(7) Power Switch (14) Connection Cable
