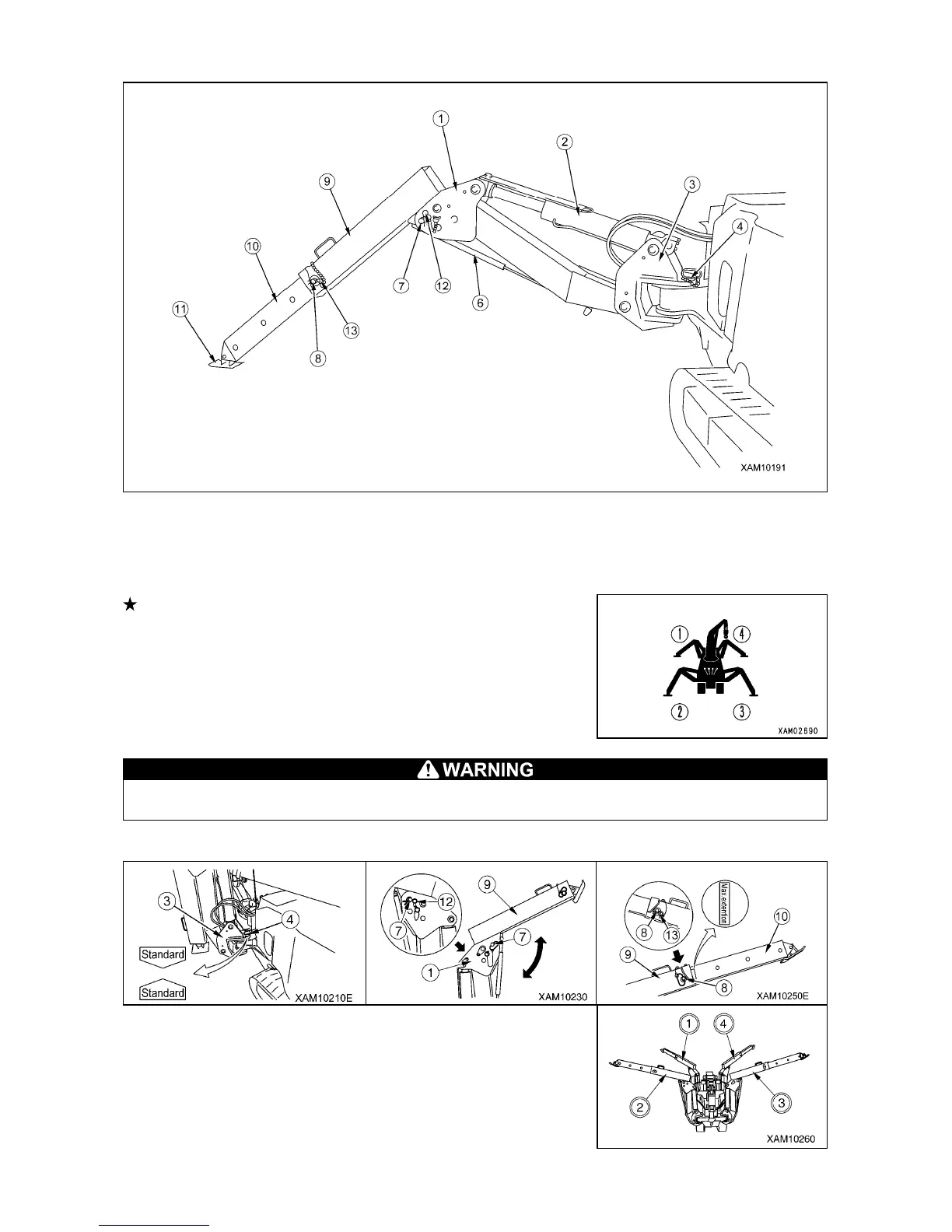

5. OUTRIGGER OPERATION
(1) Outrigger base (6) Stay (Damper type) (10) Inner box
OUTRIGGER COMPONENTS
(2) Outrigger cylinder (7) Outrigger top position pin (11) Outrigger adapter (Foot)
(3) Outrigger rotary (8) Inner box position pin (12) Snap pin
(4) Rotary position pin (9) Outrigger top (13) Snap pin
There are four outriggers installed on the machine. Although the setting
method is described for just one outrigger (outrigger (3), set the other three
outriggers in the same way.
[1] OUTRIGGER SET UP OPERATION
It is forbidden to work with the crane without the outriggers.
(1) TASKS TO BE PERFORMED UPON ENGINE STOP
1. Rotate the outriggers as much as possible (check this with the alignment
of the “STANDARD” decals). Secure with the position pin.
2. Open (lift up) the outriggers as much as possible and secure with the
position pin and snap pin.
3. Pull out the inner box from the outrigger top as much as possible and
secure with the position pin and snap pin.
-5-
