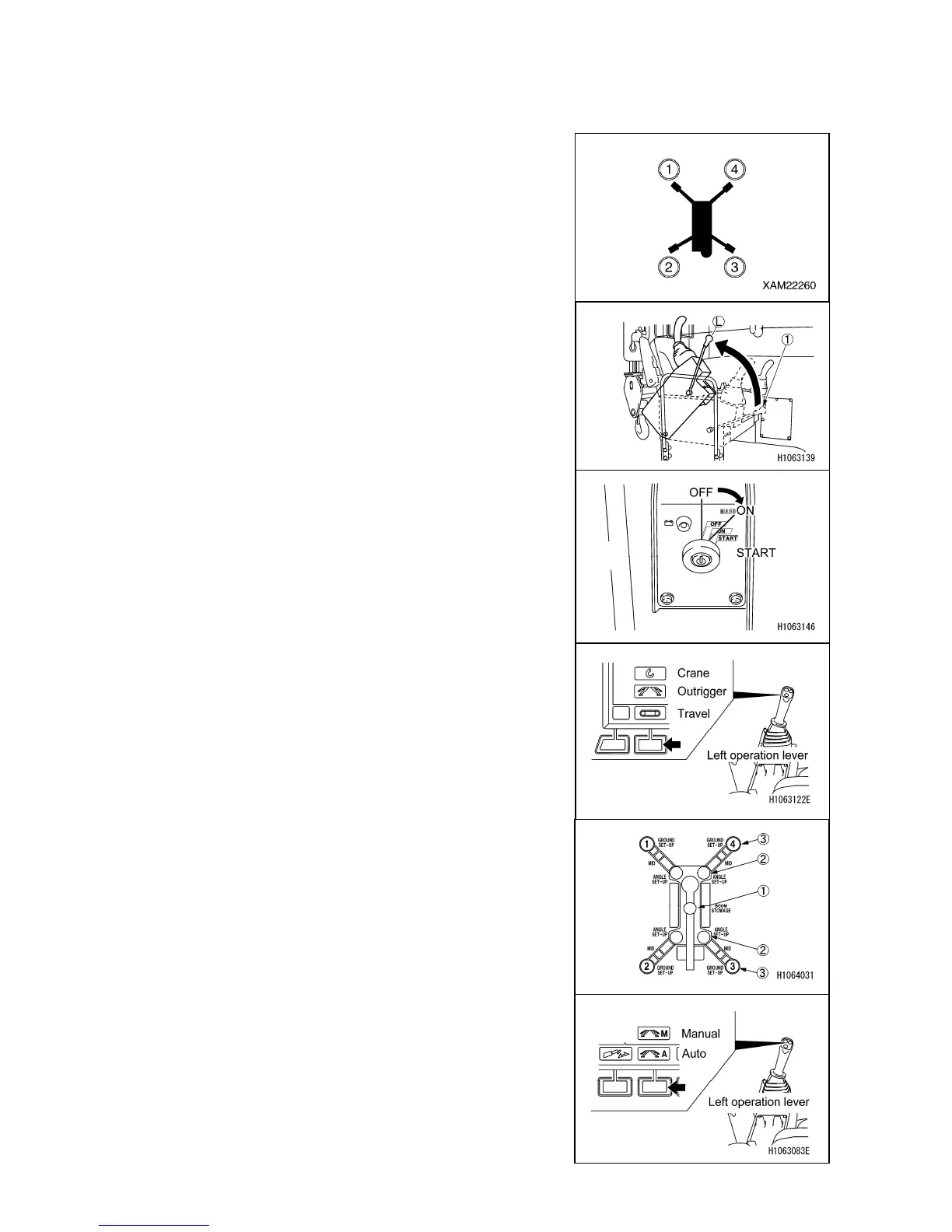

3.3 OUTRIGGER OPERATION
[ OUTRIGGER SETTING OPERATION ]
TASKS TO BE PERFORMED BEFORE STARTING THE ENGINE
There are 4 outriggers installed on the machine.
The following explains the setting procedure for only one
“OUTRIGGER (4)”. Repeat the same procedure for the other
three outriggers.
1. Shift the lock lever (1) into the lock (L) position.
2. Turn the starter switch to the “ON” position.
3. Change the mode to Outrigger mode with the mode
selector switch (1) (Travel/Outrigger/Crane) on the
monitor or the left control lever.
4. Make sure that the crane stowage (1) lamp on the monitor
is lit in yellow.
5. Select the Manual mode with the mode selector switch (3)
(Manual/Auto) on the monitor or the left control lever.
