Maeda MC815C - 1 Description of Controls; Outrigger Operation Panel

- 2 -

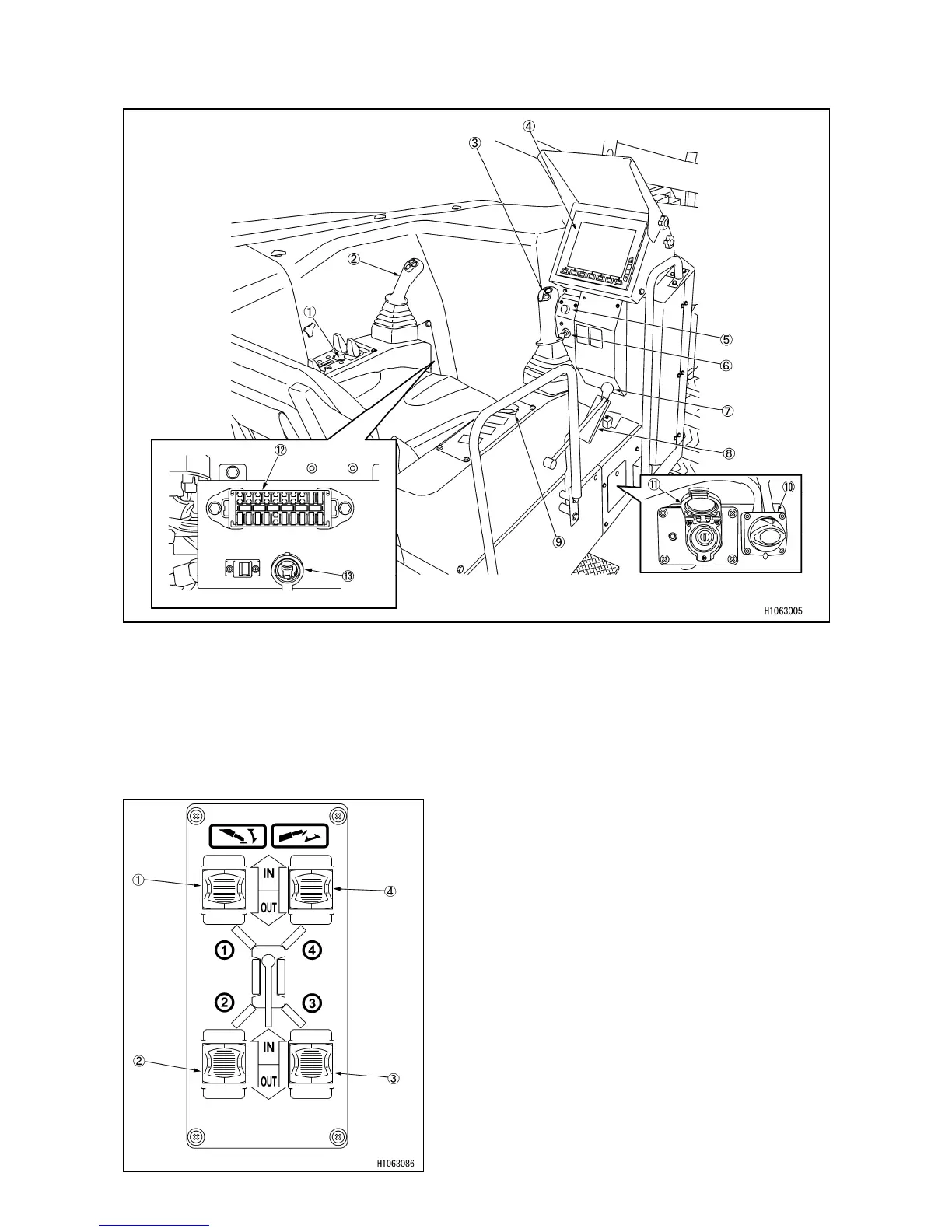

1. DESCRIPTION OF CONTROLS
(1) Outrigger operation panel
(2) Left control lever
(3) Right control lever
(4) Monitor
(5) Emergency stop switch
(6) Starter switch
(7) Lock lever
(8) Accelerator pedal
(9) Light switch
(10) Disconnect switch
(11) Override switch
(12) Fuse box
(13) Cigar socket
1.1 OUTRIGGER OPERATION PANEL
(1) Outrigger (1) switch
(2) Outrigger (2) switch
(3) Outrigger (3) switch
(4) Outrigger (4) switch
