Maeda MC815C - Page 7

- 5 -

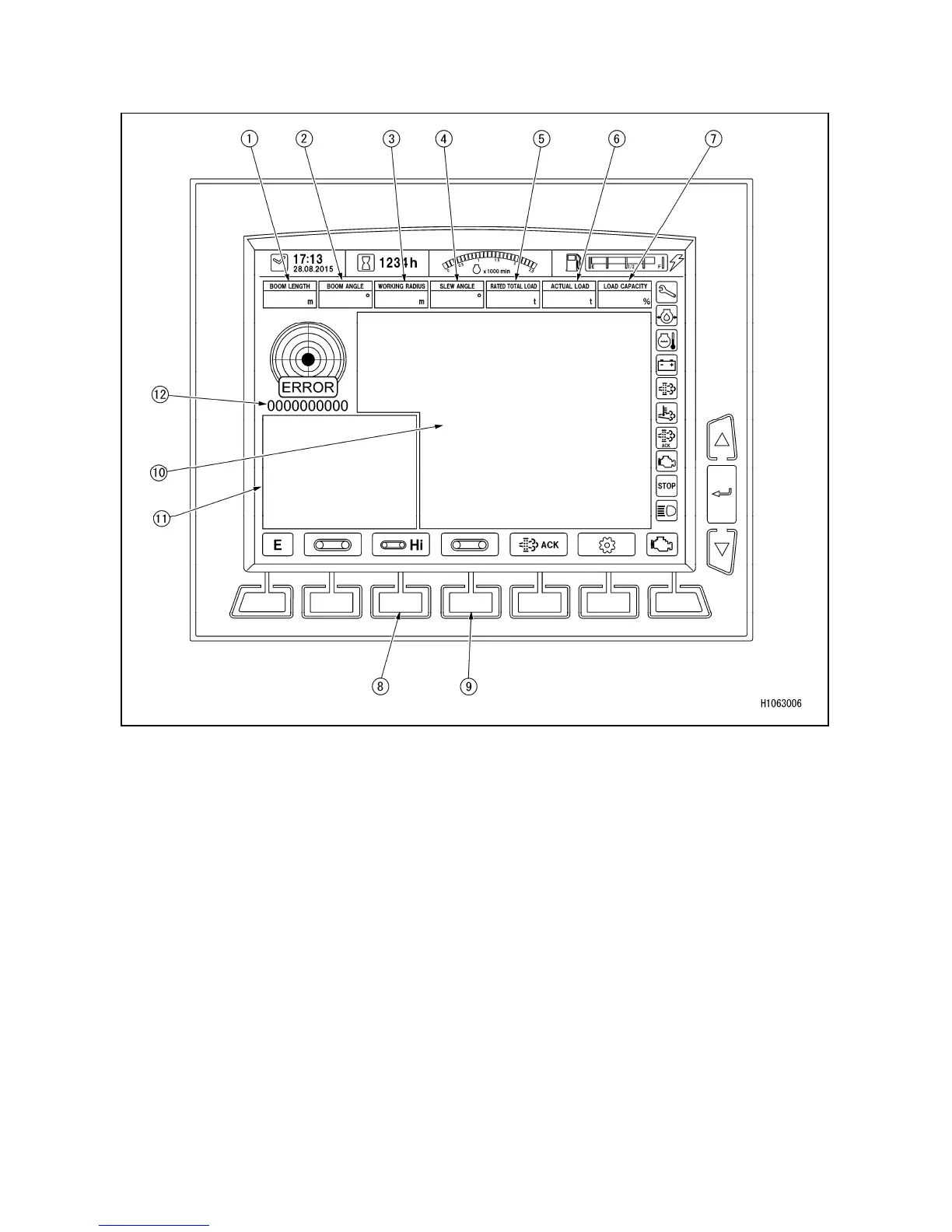

[ MONITOR DISPLAY (TRAVELING MODE) ]
(1) BOOM LENGTH
(2) BOOM ANGLE
(3) WORKING RADIUS
(4) SLEW ANGLE
(5) RATED TOTAL LOAD
(6) ACTUAL LOAD
(7) LOAD CAPACITY
(8) MODE SELECTOR
SWITCH (2) (Traveling
Hi/Low)
(9) MODE SELECTOR
SWITCH (3) (Pick/Carry)
(10) FRONT VIEW CAMERA
MONITOR
(11) LEFT SIDE-VIEW
CAMERA MONITOR
(12) Error codes
