STEERING WHEEL
Operating manual T225 / T230 41

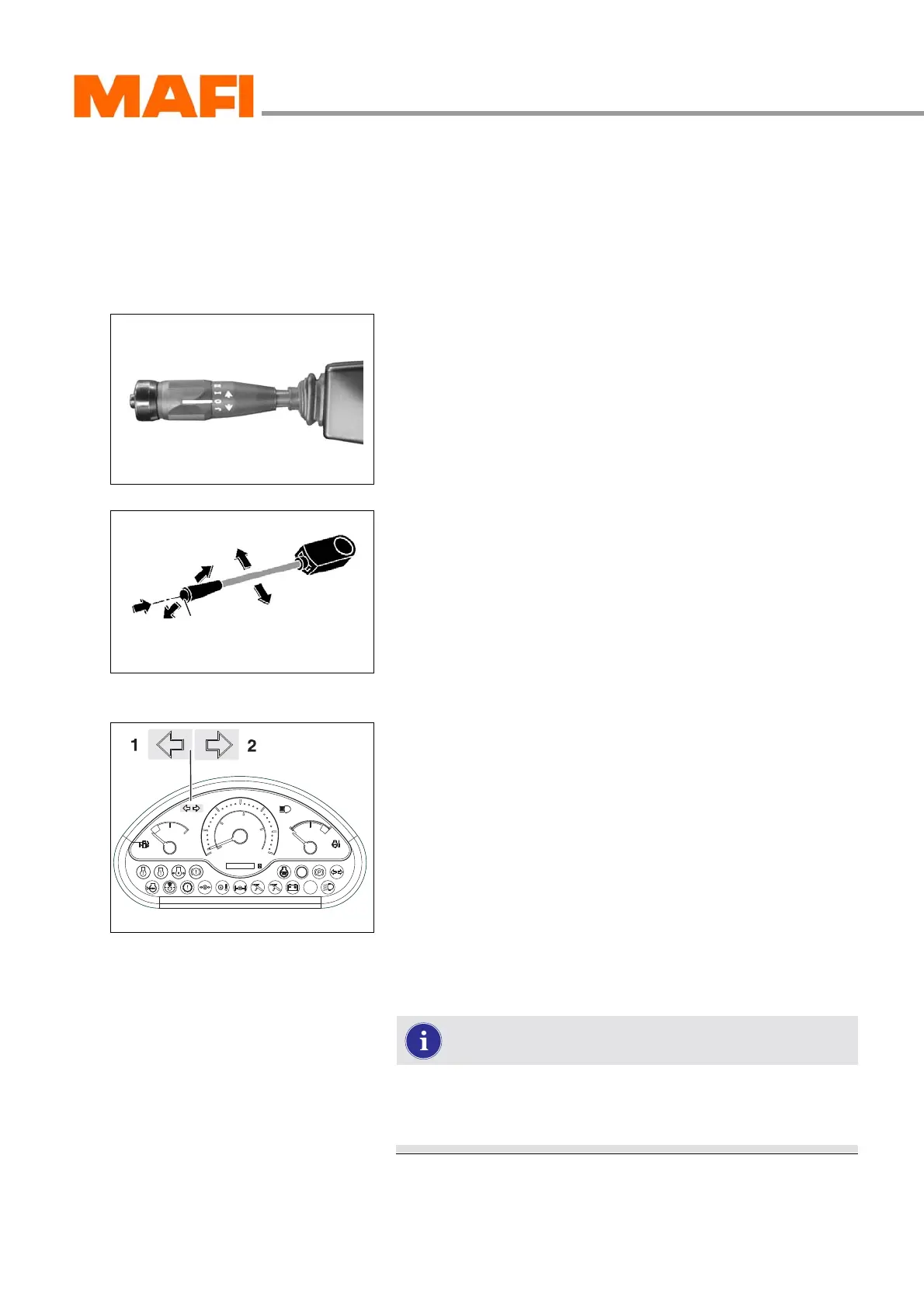

Combination switch
The combination switch is located on left side of the steering
wheel. You can use the combination switch to operate the
indicators, horn, flash, high beams/low beams, and the front
windscreen washer and wiper.
Direction indicator/high beam
Fig. 19: Combination switch
Fig. 20: Functional schematics of the combination switch
1 Left-hand direction indicator
2 Right-hand direction indicator
3 Horn
4 High beam
5 Low (dipped) beam (centre = neutral setting)
6 Flash
Direction indicator
Fig. 21: Function indicator for turning signal
1 Left-hand direction indicator
2 Right-hand direction indicator
X
Press the combination switch forward in the direction of
arrow 2.
3 Right-hand direction indicator flashes.
X Press the combination switch backward in the direction of
arrow 1.
3 The left-hand direction indicator flashes.
The position of the combination switch is maintained
after the curved movement has been completed. It does
not automatically assume its original position.
