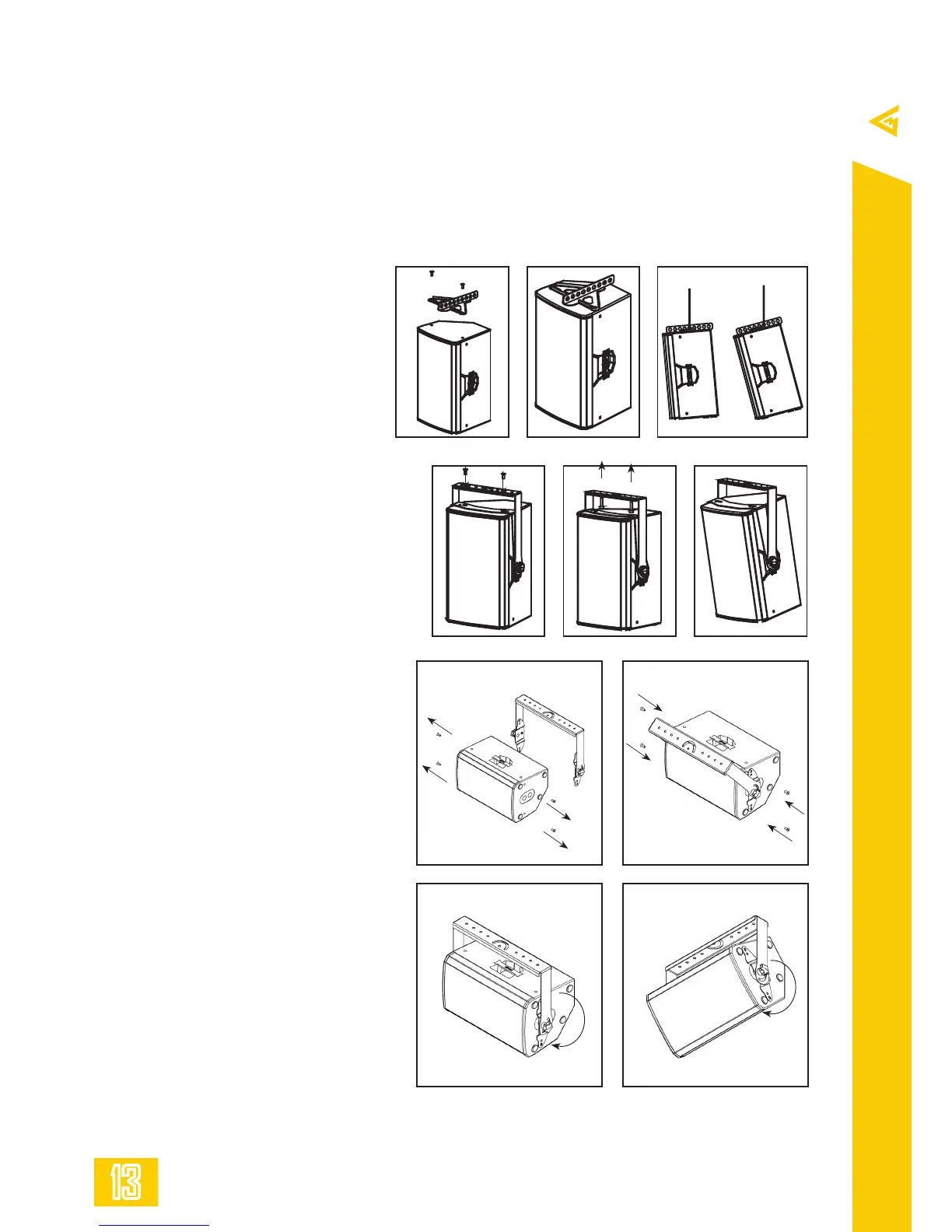

5.5. Flying via flying adapter
Required accessories:
AZ320 (part No. MK008-0150-00)
AZ350 (part No. MK008-0151-00)
Fast and neat flying of the single Z series’ full-range cabinet using flying adapter.
5.6. Mounting via rotating bracket
Required accessories:
LZ320 (part No. MK008-0152-00)
LZ350 (part No. MK008-0153-00)
- Secure a Z series’ cabinet onto the
inner half-bracket using M10 bolts.
- Use M10 bolts or threaded rods with
nut to secure the outer half-bracket to
the support structure.
- Release the wing-nuts and adjust the
tilt angle of the speaker.
- Tighten up the wing-nuts firmly.
- Secure Z series’ cabinet onto the flying
adapter using M10 bolts.
- Mount the assembly using the
standard 5/8 inch shackle.
- Use dierent mounting points of flying
adapter to choose dierent tilt angles.
5.7. Wall or ceiling mounting using
the horizontal bracket
Accessories:
HZ320 (part No. MK008-0162-00)
HZ350 (part No. MK008-0163-00)
1. Remove four M10 bolts from mounting
points and position HZ320 (Z 320 and Z
320A) or HZ350 (Z 350, Z 350A). (Pic. 1.)
2. Use two M10 bolts to secure HZ320 or
HZ350 horizontal bracket in place. (Pic. 2.)
3. Use winches on each side of the cabinet
to adjust vertical tilt. (Pic. 3, 4.) Z series
speaker with HZ320 or HZ350 may be
mounted to wall or ceiling using mounting
holes of the horizontal bracket.
1
3
4
2
