6.3. MAIN window

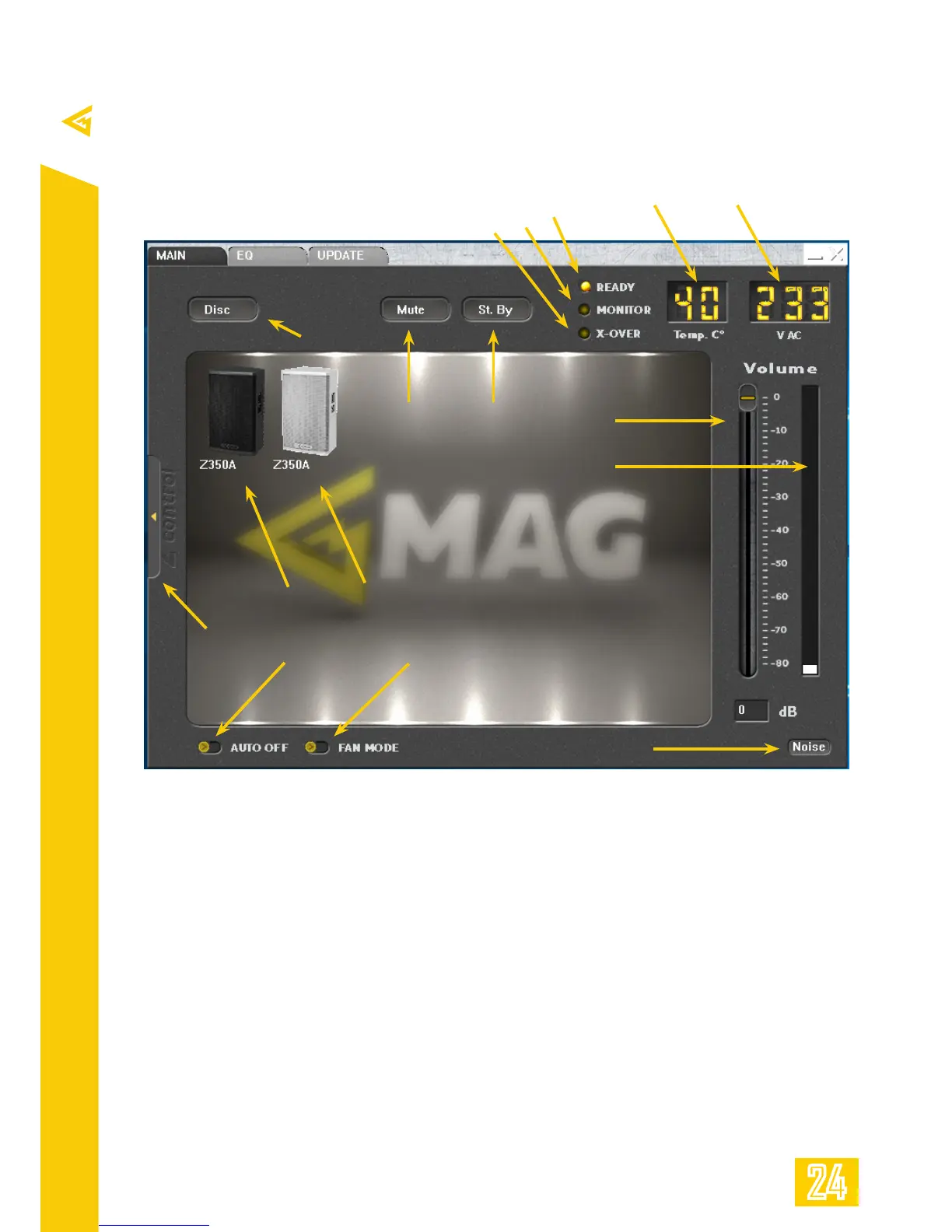

MAIN window provides overview of the connected Z series speakers, volume adjustment, sensor
information, utility controls, and grouping.
In order to control speaker parameters, select the speaker first. MAIN window provides functions of mut-
ing and standby mode, speaker volume adjustment, engaging pink noise generator, and switching of Auto
O mode, shuting down the amplifier to prevent hum and preserve energy while no input is availalbe, and
Fan Mode, engaging smart temperature controlled fan speed management.
Also MAIN window provides information on amplifier temperature, input mains voltage, and speaker
preset status.
18 19
20
21
23
26
27
28
29
30
3132
33
24
25
22
18. DISCOVERED SELECTED SPEAKER.
Shows discovered powered Z series
speaker that has been selected for
controls.
19. DISCOVERED DESELECTED
SPEAKER. Shows discovered powered
Z series speaker that has not been
selected. Its parameters are not being
controlled.
20. SPEAKER DISCOVERY BUTTON.
Click this to discover Z series powered
speakers in the vicinity.
21. MUTE BUTTON. Click to mute
selected speakers.
22. STANDBY BUTTON. Click to put
selected speakers into energy saving
standby mode.
23. READY LED. Indicates speaker has
been initialized and is working normally.
24. MONITOR LED. Indicates selected
speaker has MONITOR button pressed
down on the back panel.
25. X-OVER LED. Indicates selected
speaker has X-OVER button pressed
down on the back panel.
26. TEMP INDICATOR. Shows
temperature of the selected speaker’s
amplifier.
27. V AC INDICATOR. Shows input mains
voltage of selected speaker.
28. VOLUME FADER.
29. INPUT SIGNAL INDICATOR. Show
momentary input signal level.
30. NOISE BUTTON. Engages pink noise
generator for selected speaker.
31. FAN MODE SWITCH. Switches
between normal and smart temperature
controlled fan modes.
32. AUTO OFF SWITCH. Engages Auto
O mode, which switches the amplifier
o while no input signal is present.
33. GROUP PANEL BUTTON. Shows
Group side panel.
