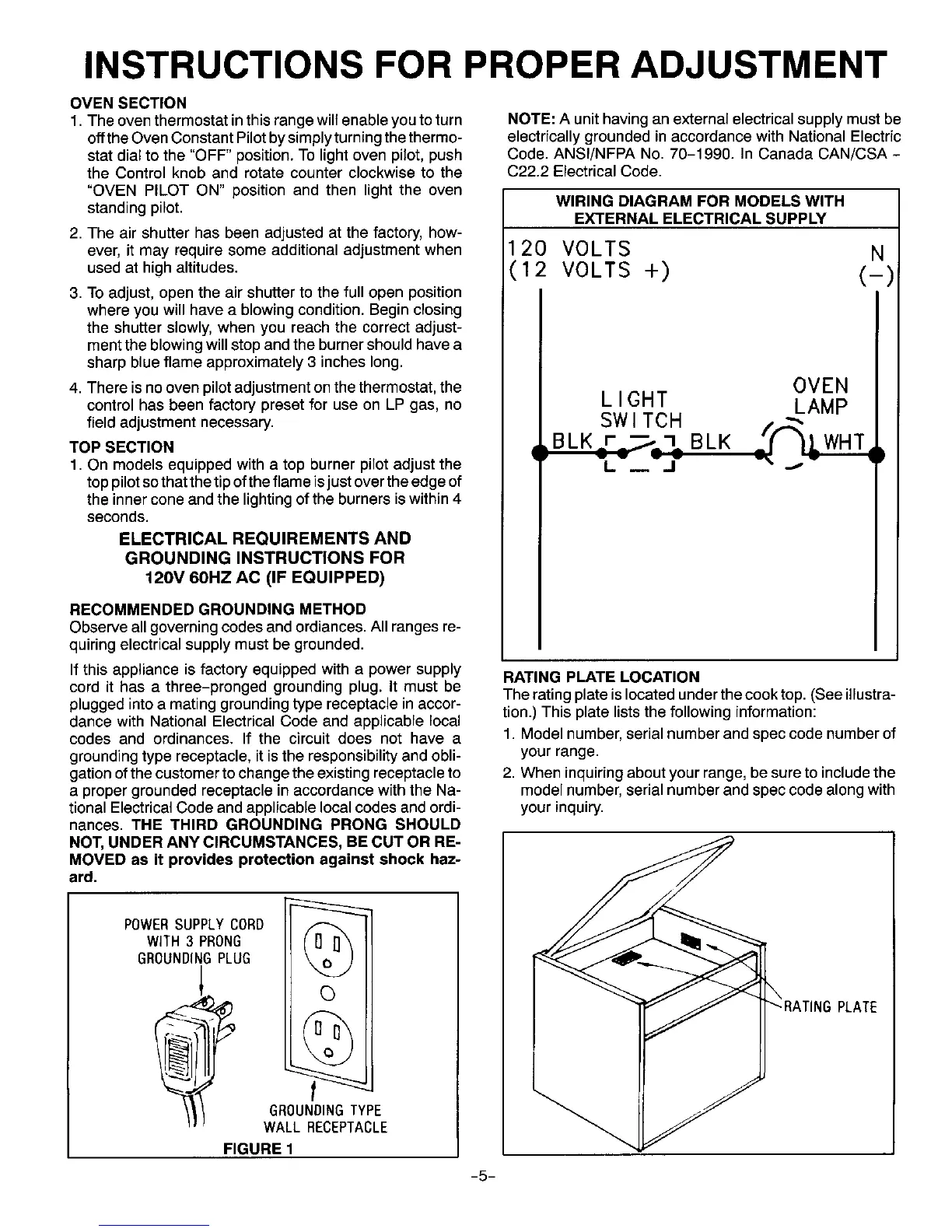

INSTRUCTIONS FOR PROPER ADJUSTMENT
OVENSECTION
1. Theoven thermostat in thisrangewiltenable you to turn NOTE: A unithaving an externalelectricalsupply must be
offtheOvenConstantPilotbysimplyturningthethermo- electricallygroundedinaccordancewith NationalElectric
stat dialto the "OFF" position.To lightovenpilot,push Code.ANSI/NFPA No. 70-1990. In Canada CAN/CSA -
the Controlknob and rotatecounterclockwiseto the C22.2 ElectricalCode.
"OVEN PILOT ON" positionand then lightthe oven
standingpilot. WIRING DIAGRAM FOR MODELS WITH
EXTERNAL ELECTRICAL SUPPLY
2. The air shutterhas been adjustedat the factory,how-
ever,it may requiresome additionaladjustmentwhen ! 20 VOLTS N
used at high altitudes. (12 VOLTS +) (_)
3. Toadjust, open the air shutter to the full open position
where you will have a blowing condition. Begin closing
the shutter slowly, when you reach the correct adjust-
ment the blowing will stop and the burner shouldhave a
sharp blue flame approximately 3 inches long.
4. There is no oven pilot adjustment on the thermostat, the 0 V F"N
control has been factory preset for use on LP gas, no L IGHT LAMP
field adjustment necessary. SWITCH /.... ,
TOP SECTION _ L_.._e/_
BLK
1. On models equipped with a top burner pilot adjust the L m J _s
toppilotsothatthetipoftheflameisjustovertheedgeof
the innerconeandthe lightingofthe burnersiswithin4
seconds.
ELECTRICAL REQUIREMENTS AND
GROUNDING INSTRUCTIONS FOR
120V 60HZ AC (IF EQUIPPED)
RECOMMENDED GROUNDING METHOD
Observeall governingcodes and ordiances.All ranges re-
quiring electrical supply must be grounded.
If this appliance is factory equipped with a power supply RATING PLATELOCATION
cord it has a three-pronged grounding plug. It must be The rating plate is located underthe cooktop. (Seeillustra-
plugged into a mating grounding type receptacle in accor- tion.) This plate lists the following information:
dance with National Electrical Code and applicable local
codes and ordinances. If the circuit does not have a 1. Modelnumber, serial number and spec code number of
grounding type receptacle, it is the responsibility and obli- your range.
gation ofthe customerto changethe existing receptacleto 2. When inquiring about your range,besure to includethe
a proper grounded receptacle in accordance with the Na- modelnumber,serial number and spec code along with
tional ElectricalCodeand applicablelocal codes and ordi- your inquiry.
nances. THE THIRD GROUNDING PRONG SHOULD
NOT,UNDER ANYCIRCUMSTANCES, BECUT OR RE-
MOVED as it provides protection against shock haz-
ird.
POWERSUPPLYCORD
WITH3 PRONG
GROUNDINGPLUG
0 \
""RATINGPLATE
GROUNDINGTYPE _ y
WALLRECEPTACLE
FIGURE 1
