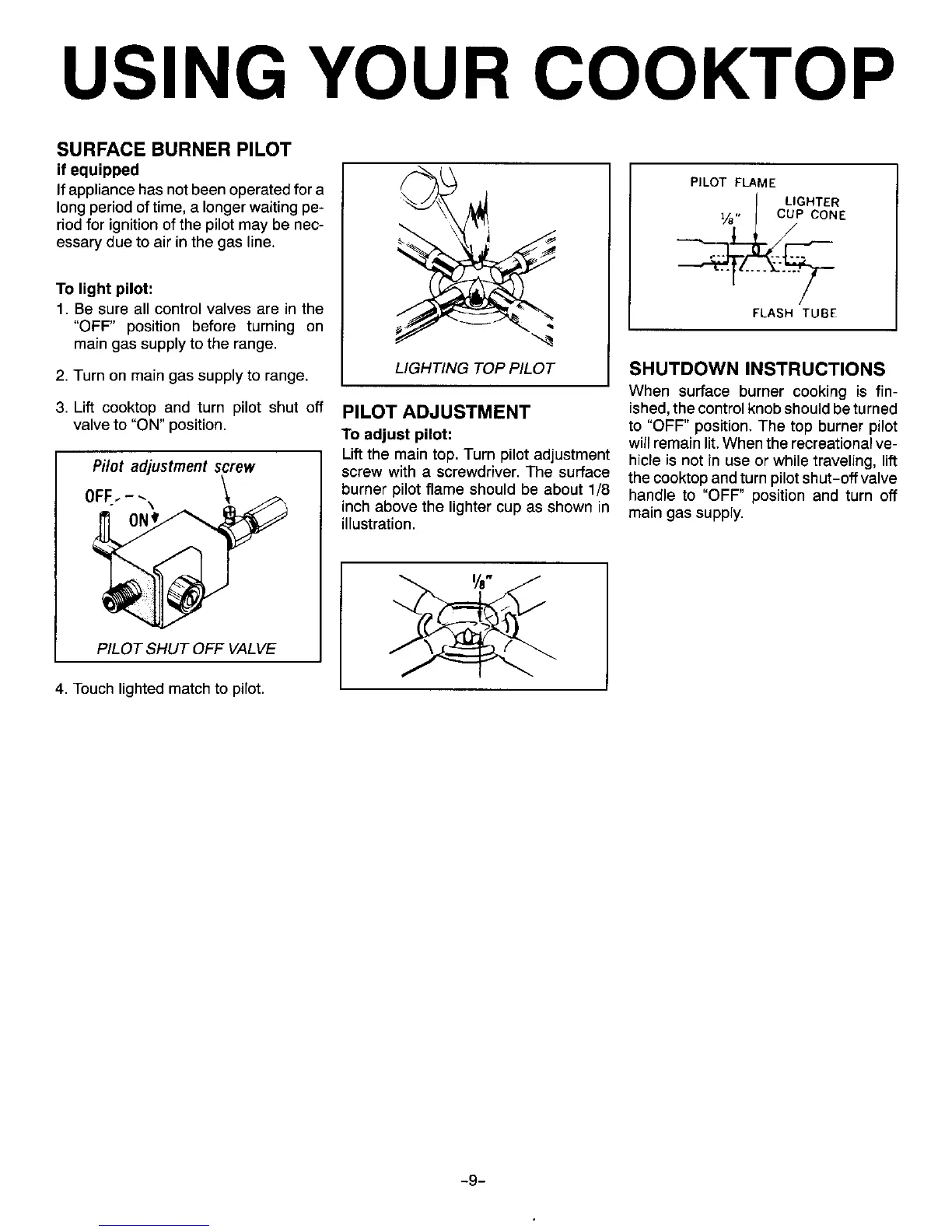

USING YOUR COOKTOP
SURFACE BURNER PILOT
if equipped _
PILOT FLAME
Ifappliance has not been operatedfora I LIGHTER
long period of time, a longerwaitingpe- it_,, J cup CONE
riod for ignition of the pilot may be nec- __i__ _ --_ _ _
essary due to air in thegas line. -'-
To light pilot:
1. Be sure all controlvalves are inthe FLASHTUBE
"OFF" position before turning on
main gas supply to the range.
2. Turn on main gas supply to range. LIGHTING TOP PILOT SHUTDOWN INSTRUCTIONS
When surface burner cooking is fin-
3. Lift cooktop and turn pilot shut off PILOT ADJUSTMENT ished,the control knob shouldbeturned
valve to "ON" position. To adjust pilot: to "OFF" position.The top burner pilot
will remain lit.When the recreationalve-
Lift the main top. Turn pilot adjustment hicle is not in use or while traveling, lift
Pilot adjustment screw screw with a screwdriver. The surface the cooktop andturn pilotshut-off valve
_'_ burner pilotflame should be about 1/8 handle to "OFF" position and turn off
0FF,.---\ inch above the lighter cup as shown in main gas supply.
illustration.
P/LOT SHUT OFF VALVE _"___'...._
4. Touch lighted match to pilot.
-9-
