Magnavox MDR513H/F7 User Manual

10 EN10 EN
FUNCTIONAL OVERVIEW
(
*
) The unit can also be turned on by pressing these buttons.
1. y STANDBY-ON button
Press to turn on the unit, or to turn the unit to the
standby mode. (To completely shut down the unit,
you must unplug the AC power cord)
2. Disc tray
Place a disc when opening the disc tray.
3. A OPEN/CLOSE button*
Press to open or close the disc tray.
4. Display
Refer to “Front Panel Display” on page 14.
5. HDD button
Press to select the HDD output mode.
6. DVD button
Press to select the DVD output mode.
7. C STOP button
Press to stop playback or recording.
8. B PLAY button*
Press to start or resume playback.
9. I RECORD button
Press once to start a recording. Press repeatedly to
start one-touch timer recording.
10. CHANNEL
/ buttons
Press to change the channel up and down.
11. DV-IN jack (L3)
Use to connect the DV output of external device with
a DV cable.
12. AUDIO input jacks (L2)
Use to connect external device with an RCA audio
cable.
13. VIDEO input jack (L2)
Use to connect external device with an RCA video
cable.
14. S-VIDEO input jack (L2)
Use to connect the S-video output of external device
with an S-video cable.
15. Infrared sensor window
Receive signals from your remote control so that you
can control the unit from a distance.

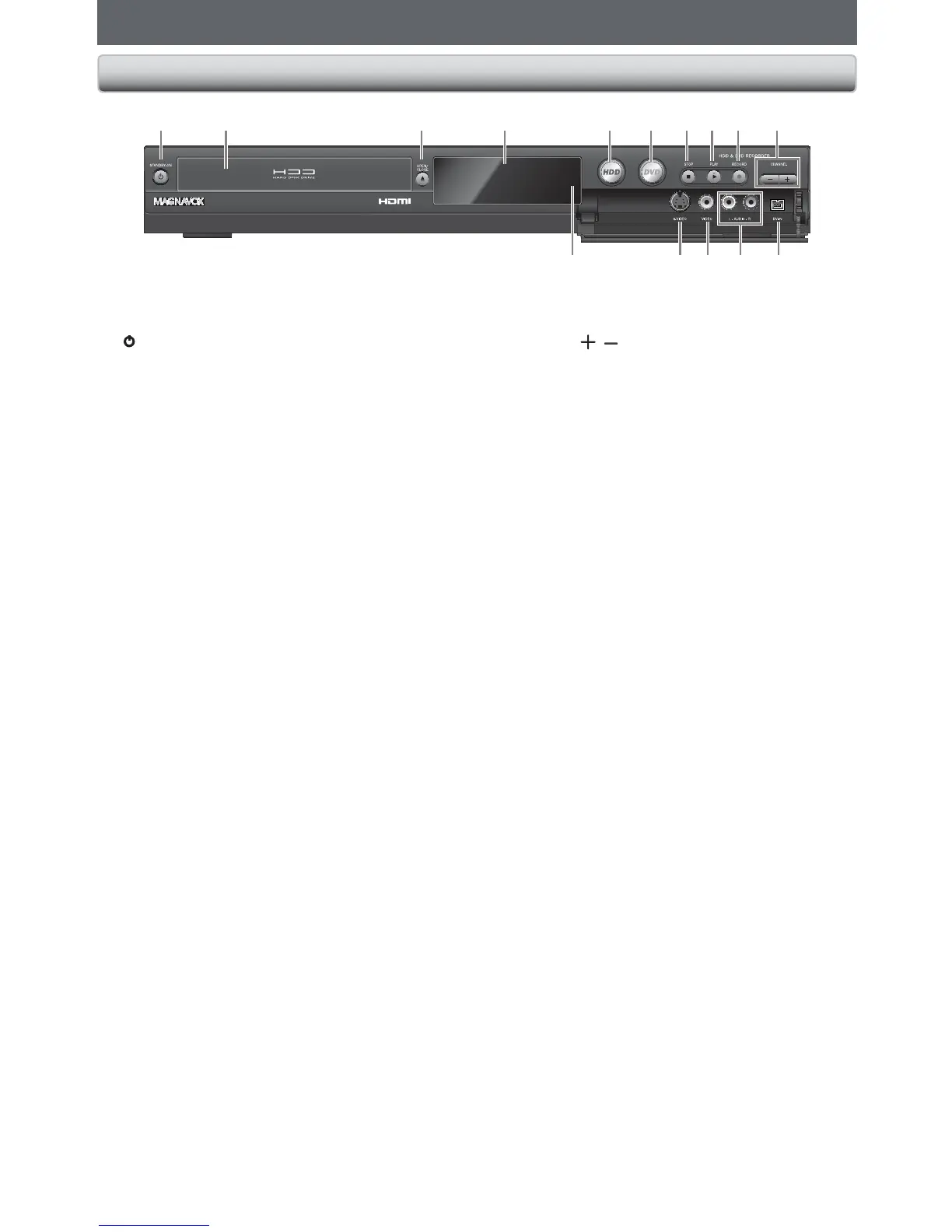

Front Panel
21 3* 5 6 7 8* 9104
1213 111415

Magnavox MDR513H/F7 Specifications

Power

power supply voltage	120V
power supply frequency	60Hz

Ports & interfaces

rear connections	Analog audio Left/Right out, Component Video output, Composite video (CVBS) output, Digital coaxial out, HDMI output, S-Video out, Analog audio Left/Right in, Composite video (CVBS) input, S-Video in
front connections	Analog Audio Left/Right In, Composite Video (CVBS) In, DV In, S-Video In

Weight and Dimensions

set dimensions	420 x 59 x 290 mm
set weight	3.4 kg
packaging dimensions	520 x 147 x 413 mm
weight including packaging	4.6 kg
