CONNECTION
Read this first:
1) Disconnect the AC power cords of the devices from the AC outlet.
2) Make the connection as illustrated below.
3) After making all the connections, connect the AC power cords of the devices.

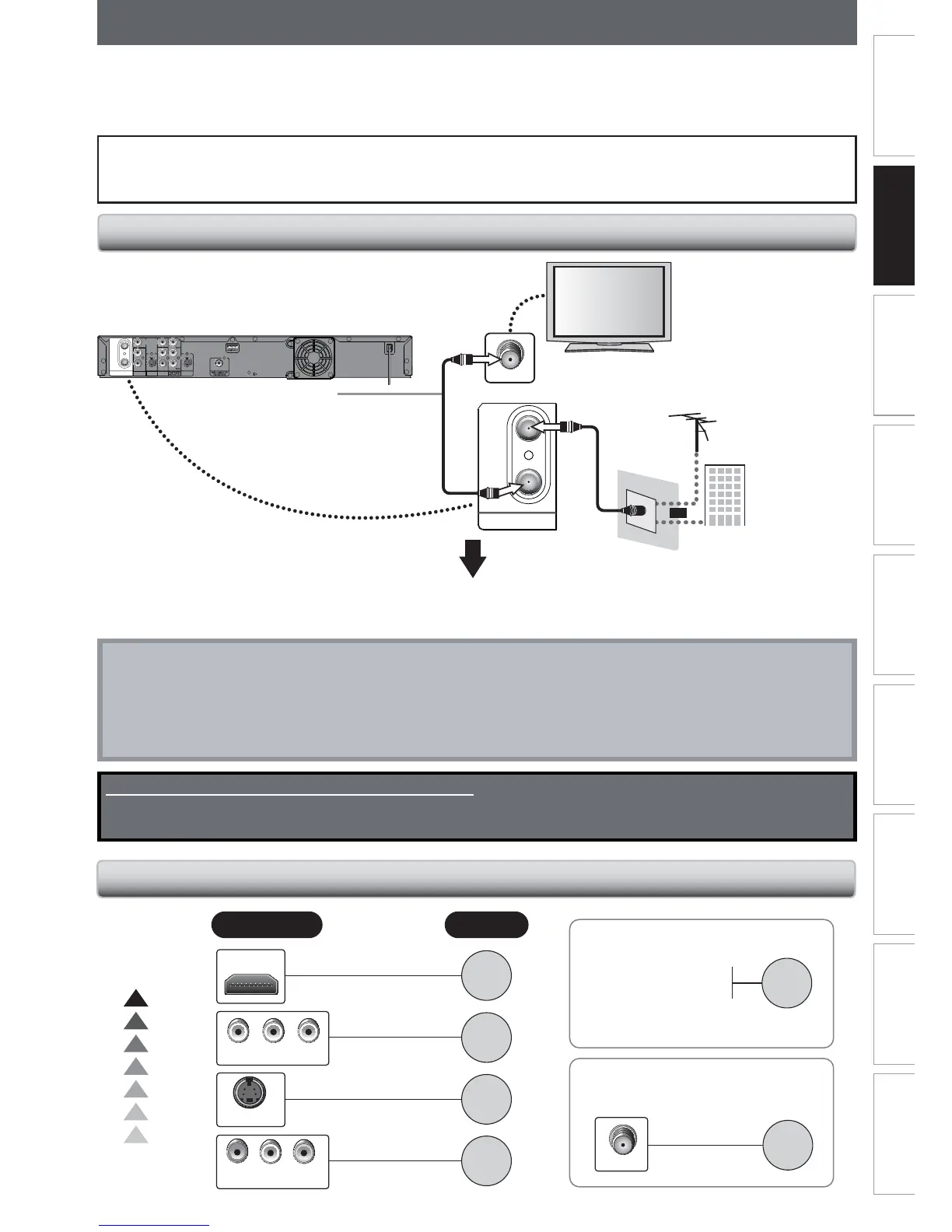

Antenna Connection (Required)
IN
OUT
ANTENNA
This connection is for
TV pass through only
VHF / UHF
antenna
cable TV
company
RF coaxial
cable
or
RF coaxial
cable
ANT. IN
rear of this unit
IN
IN
OUT
V DEO
N
UDIO N
(
L
)
S VIDEO
S VIDEO
UD O OU
OUT
IDE
OUT
ANTENNA
R
L
COAX AL
Choose one of the following connections
depending on the jacks on your TV.
Note
• For your safety and to avoid damage to the device, please unplug the RF coaxial cable from the ANTENNA IN jack before
moving the unit.
• If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be
more effective than set-top versions.
• ANTENNA OUT jack is for tuner pass through only. HDD / DVD playback through the RF is not possible.
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
Please purchase the rest of the necessary cables at your local store.
Overview
If Your TV has
Refer to
If you are using
cable / satellite box
Standard
Quality
Higher
Quality
If your device has
only an ANT. IN jack
page
18
COMPONENT VIDEO IN
AUDIO IN
LR
VIDEO IN
page
20
page
19
page
17
page
17
page
16
S-VIDEO IN
HDMI IN
ANT. IN
• Connect this unit directly to the TV. If the RCA audio/video cables are connected to a VCR, pictures may be
distorted due to the copy protection system.
•
When “Progressive Scan” is set to “ON”, no video signal will be output from the VIDEO OUT or S-VIDEO OUT jack.
To Next Page
