11EN 11EN
Recording Playback Editing
Introduction
Connections Basic Setup Function Setup Others
Español
Recording Playback Editing
Introduction
Connections Basic Setup Function Setup Others
Español
1. ANTENNA IN jack
Use to connect an antenna.
2. VIDEO IN jack (L1)
Use to connect external device with an RCA video
cable.
3. VIDEO OUT jack
Use to connect a TV monitor, AV receiver or other
device with an RCA video cable.
4. HDMI OUT jack
Use an HDMI cable to connect to a display with an
HDMI compatible port.
5. AC Power Cord
Connect to a standard AC outlet to supply power to
this unit.
Unplug this cord from the AC outlet to completely
shut down the unit.
6. DIGITAL AUDIO OUTPUT (COAXIAL) jack
Use to connect an AV receiver, Dolby Digital decoder
or other device with a digital audio coaxial input jack
with a digital audio coaxial cable.
7. S-VIDEO OUT jack
Use to connect the S-video input of a TV monitor, AV
receiver or other device with an S-video cable.
8. COMPONENT VIDEO OUTPUT jacks
Use to connect a TV monitor with component video
inputs with a component video cable.
9. AUDIO OUT jacks
Use to connect a TV monitor, AV receiver or other
device with an RCA audio cable.
10. S-VIDEO IN jack (L1)
Use to connect the S-video output of external device
with an S-video cable.
11. AUDIO IN jacks (L1)
Use to connect external device with an RCA audio
cable.
12. ANTENNA OUT jack
Use to connect an RF coaxial cable to pass the signal
from the ANTENNA IN to your TV.
Note
Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause permanent
damage to the unit.
This unit does not have the RF modulator.

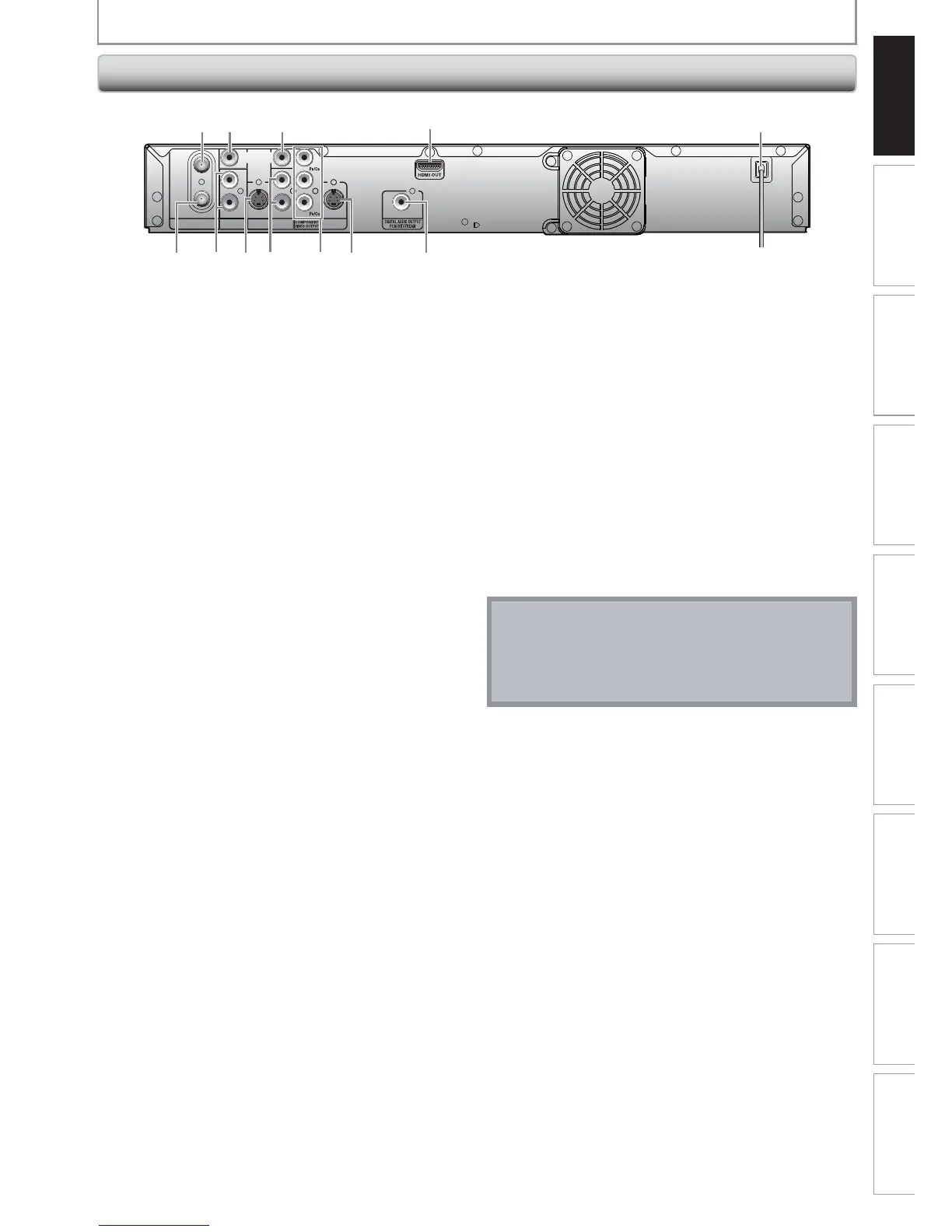

Rear Panel
FUNCTIONAL OVERVIEW
IN
OUT
VIDEO
IN
AUDIO IN
(
L1
)
S VIDEO
S VIDEO
AUD O OUT
OUT
L
R
VIDEO
OUT
Y
ANTENNA
R
L
COAXIAL
IN
21
9
3 5
4
810 712 11 6
