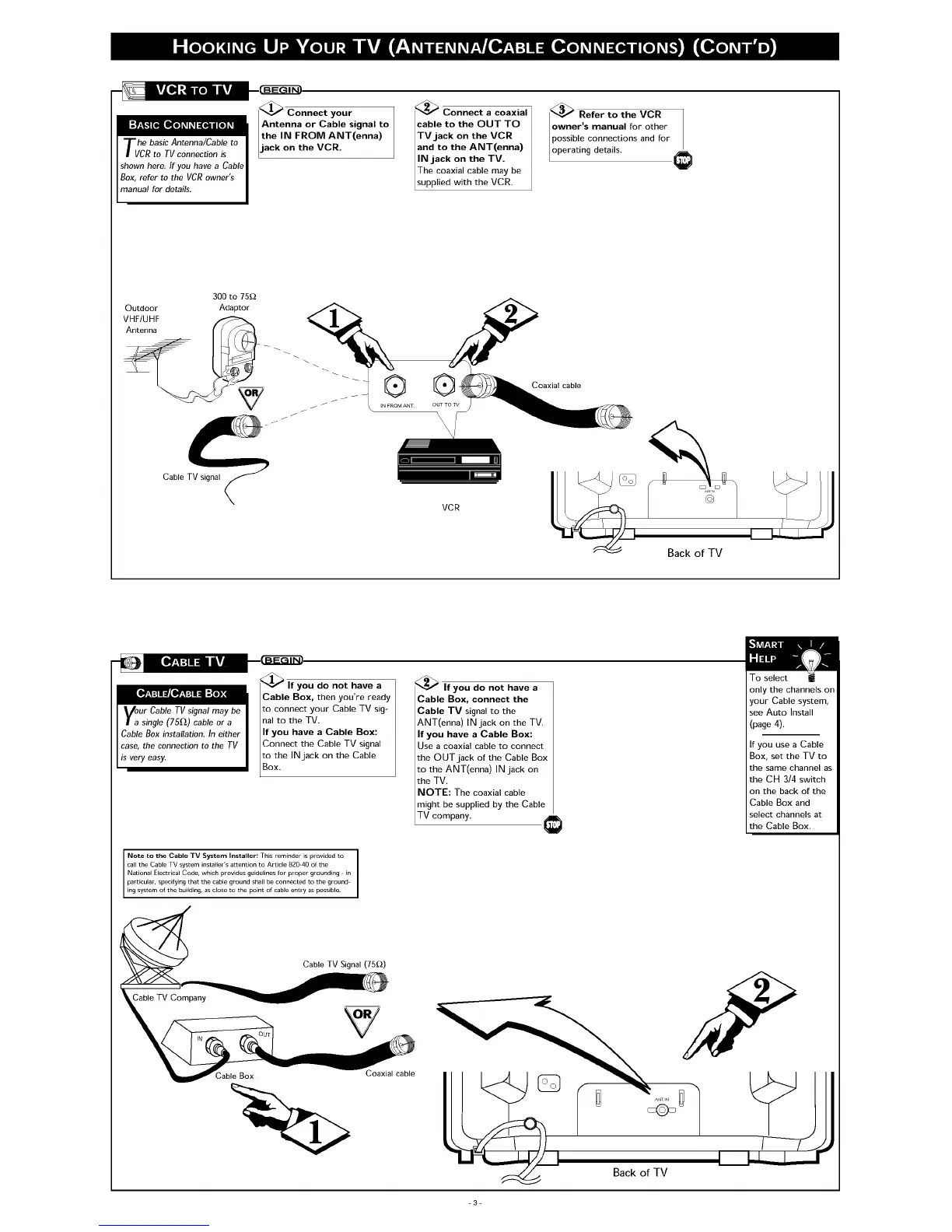

_ Connect your
Antenna or Cable signal to
the IN FROM ANT(enna)
jack on the VCR.
_ Connect a coaxial
cable to the OUT TO
TVjack on the VCR
and to the ANT(enna)
INjack on the TV.
The coaxial cable may be
suppliedwith the VCR.
_ Refer to the VCR
owner's manual for other
possible connections and for
operat ng deta s.
300 to 75_2
®
IN FROM ANT OUT TO T_/
\
\
\
\
\
Coaxial cable
Cable TV signal
VCR
Back of TV
_lf you do not have a
Cable Box, then you're ready
to connect your Cable TV sig-
nal to the TV.
If you have a Cable Box:
Connect the Cable TV signal
to the IN jack on the Cable
Box.
If you do not have a
Cable Box, connect the
Cable TV signal to the
ANT(enna) IN jack on the TV.
If you have a Cable Box:
Use a coaxial cable to connect
the OUTjack of the Cable Box
to the ANT(enna) IN jack on
the TV.
NOTE: The coaxial cable
might be supplied by the Cable
TV company.
To select if
only the channels on
your Cable system,
see Auto Install
(page 4)
If you use a Cable
Box, set the TV to
the same channel as
the CH 3/4 switch
on the back of the
Cable Box and
select channels at
the Cable Box.
Note to the Cable TV System installer: This reminder is provided [o /
call the Cable TV system instalier's attention [o Article 820-40 of [he
]
National Electrical Code, which provides guidelines for proper grounding - [n
particular, specifying that the cable ground shall be connected [o the ground-
ing system of the building, as close to the point o[ cable entry as possible,
Cable TV Company
Cable TV Signal (75_)
-3-
To Next Page
