1-10-14
VR1601
+B ADJ
FOCUS-VR
(UPPER SIDE)
SCREEN-VR
(LOWER SIDE)
GND
TP1405
B-OUT
TP1503
+B ADJ
J1160
BT9100F01012-A

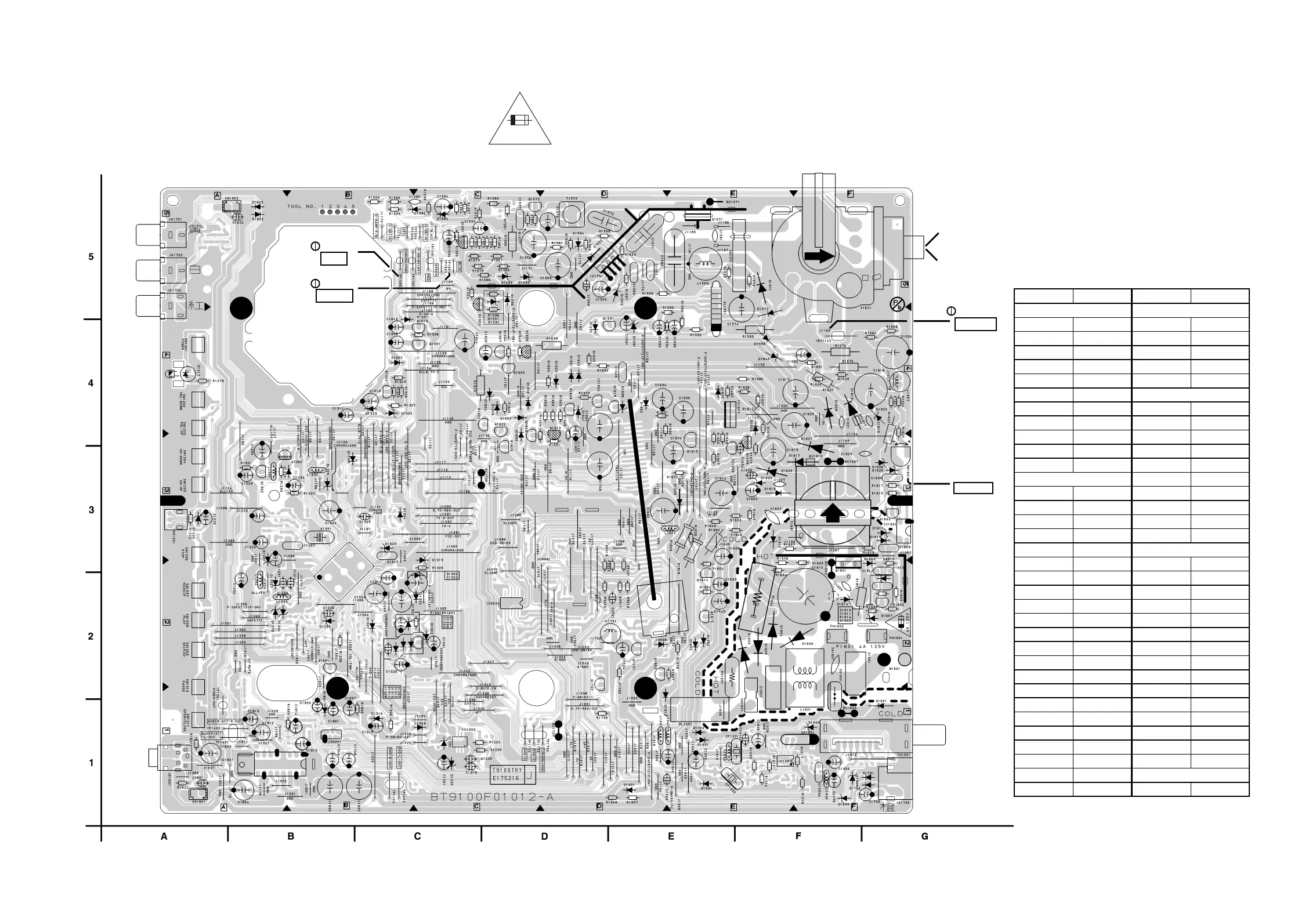

Main CBA Top View < TV Section >
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.
CAUTION ! :
ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.
4A 125V
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
Because a hot chassis ground is present in the power
supply circuit, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly,when troubleshooting this type power supply
circuit, a variable isolation transformer is required.
MAIN CBA
Ref No. Position Ref No. Position
IC1001 F-1
Q1621
C-4
IC1201
B-3
Q1622
D-4
IC1202
C-1
Q1623
D-4
IC1551 D-5
Q1731
E-2
IC1601
G-3
Q1732
D-2
IC1602
F-4
IC1603 E-3 CL1501 E-5
IC1604 C-3
CN1 E-3
IC1801 B-1
CN2 E-3
IC9202 D-2
CN3 E-3
IC9301 D-3
CN4 E-3
CN1571 E-5
Q1285 B-3
CN1601
F-1
Q1301
C-4
CN1801
A-1
Q1303 B-3
CN1802
B-5
Q1304 C-4
CN9301
B-1
Q1571 E-5
Q1572 D-5 J1160 F-4
Q1591 E-5
TP1304
C-5
Q1601 F-3 TP1305
C-5
Q1602 G-2 TP1401
A-1
Q1604 G-3 TP1402
A-1
Q1605 D-4 TP1403
C-1
Q1606 D-4 TP1404
C-1
Q1607 D-4 TP1405
C-5
Q1608 D-4
TP1501 C-5
Q1609 F-3
TP1502 C-5
Q1610 D-4
TP1503 C-5
Q1612 D-4 TP1731
C-5
Q1613 C-4 TP1732
D-1
Q1614 E-2 TP1733
D-1
Q1615 E-3 TP1734
D-1
Q1616 E-2
Q1619 E-4 VR1601 G-3
TRANSISTORSICS
CONNECTORS
TEST POINTS
VARIABLE RESISTOR
TRANSISTORS
