3. GENERAL TRANSMITTER INFORMATION

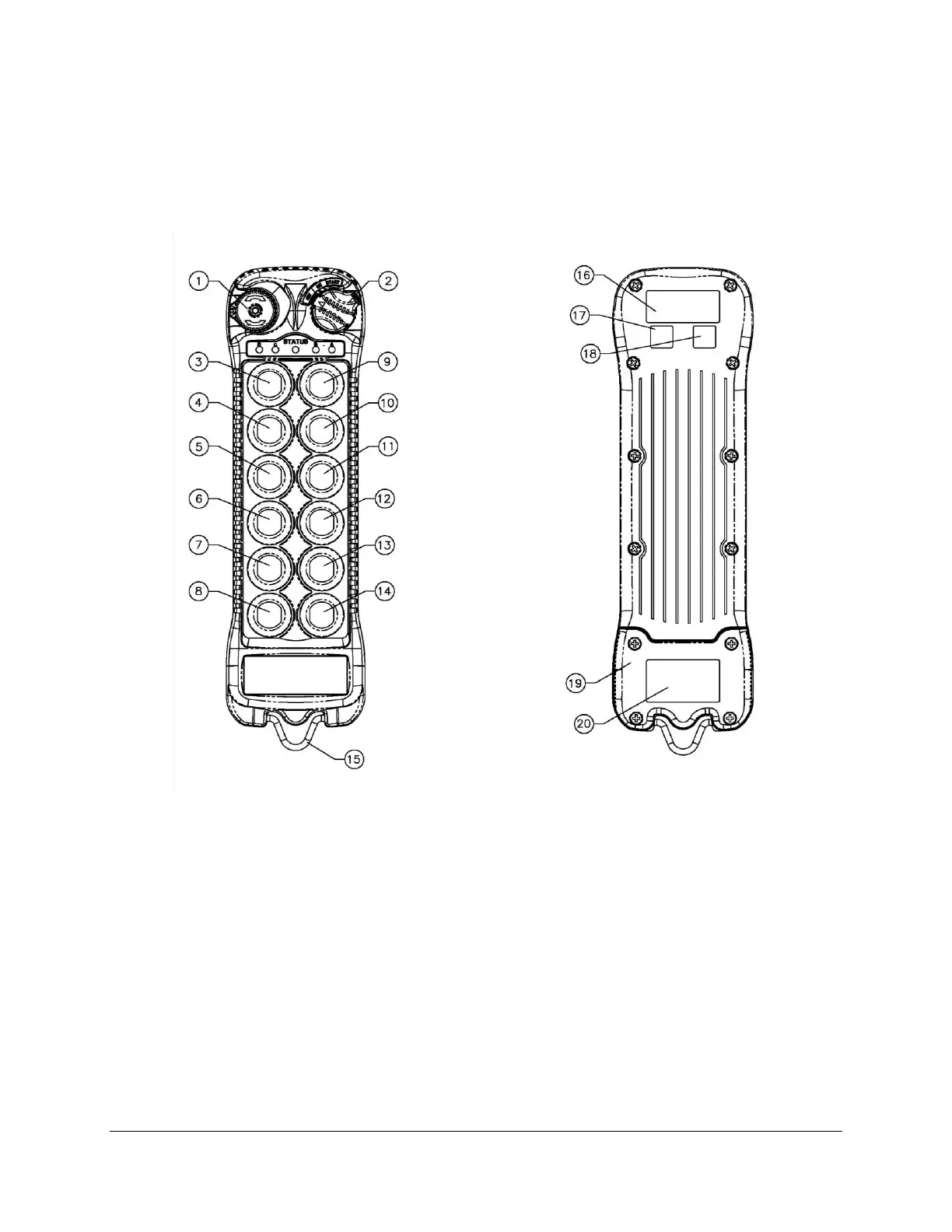

3.1 EXTERNAL ILLUSTRATION (12 BUTTON CONFIGURATION)
Figure 1
Figure 2
1. Emergency Stop Button
2. Removable Power Key
3. Push Button #1
4. Push Button #3
5. Push Button #5
6. Push Button #7
7. Push Button #9
8. Push Button #11
9. Push Button #2
10. Push Button #4
11. Push Button #6
12. Push Button #8
13. Push Button #10
14. Push Button #12
15. Strap Ring
16. System Information
17. System Channel
18. Unit Number
19. Battery Cover
20. FCC Information
NOTE: Push Buttons #9-#12 are not present on the Flex 8 EM or EX.
NOTE: Push Buttons #5-#12 are not present on the Flex 4 EM or EX.
