Enrange Flex EM/EX Instruction Manual
April 2019
Page 11 of 19

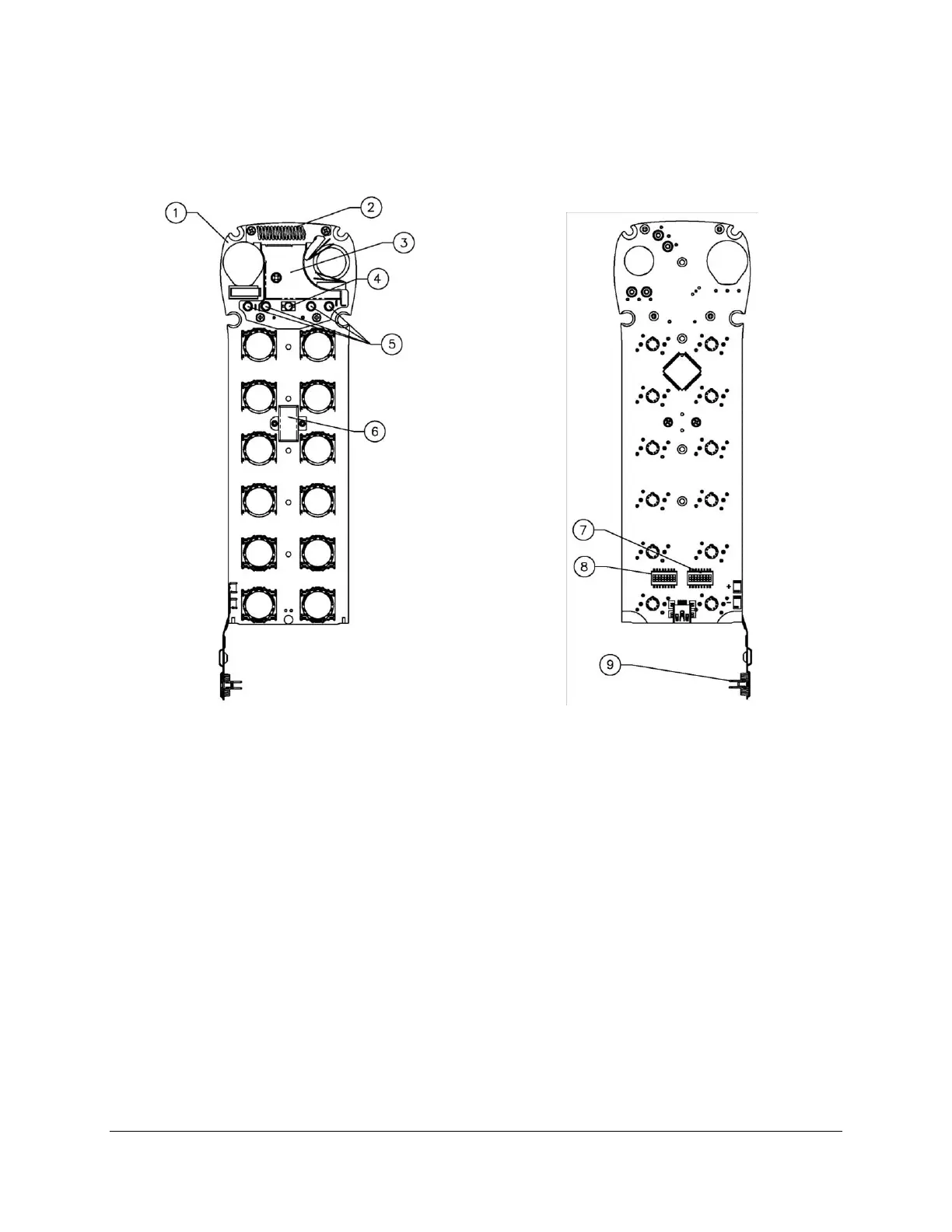

3.2 INTERNAL ILLUSTRATION (12 BUTTON CONFIGURATION)
Figure 3
Figure 4
1. Encoder Board
2. Aerial Antenna
3. Transmitting Module
4. Status LED Display
5. Function LED Displays
6. I-CHIP
7. Dip-Switch Bank 1
8. Dip-Switch Bank 2
9. Battery Contact Mechanism
NOTE: The Flex 8 EM or EX will differ slightly.
NOTE: The Flex 4 EM or EX will differ slightly.
3.3 TYPES OF BUTTONS
Both the Flex EM and EX are offered in a number of button configurations. They can be in four button,
eight button, or twelve button configurations. The illustrations within this manual show the twelve button
configurations. The difference between the Flex EM and Flex EX transmitters are the type of buttons: the
Flex EM transmitter has single step (speed) push buttons while the Flex EX has two-step (speed) buttons.
For additional information on how these buttons operate your system, consult the drawings provided with
the system.
