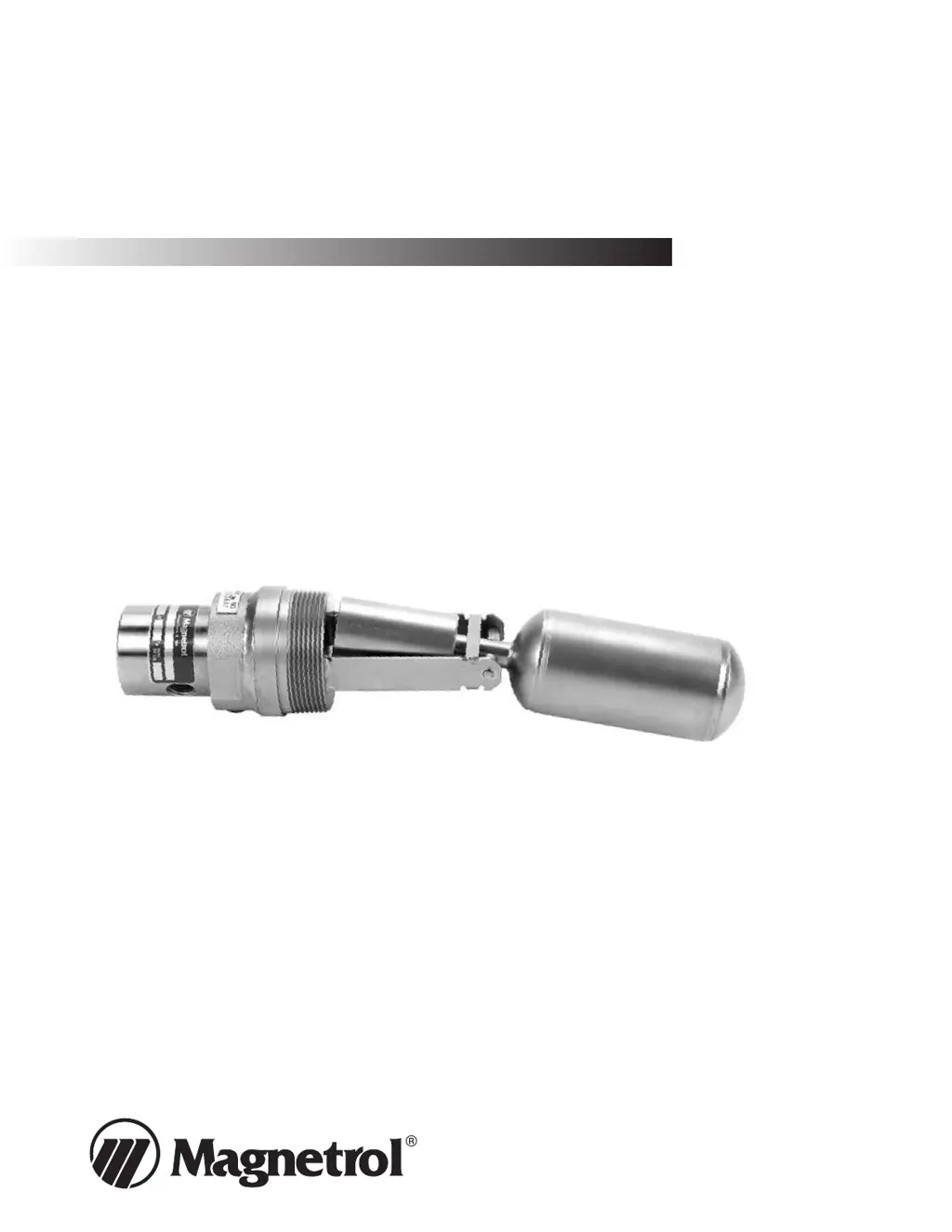

Magnetrol Tuffy 039-6000-100

Questions and Answers

R
Randy ReynoldsAug 5, 2025
What to do if my Magnetrol Tuffy 039-6000-100 Measuring Instruments Tuffy fails to shut off or turn on inlet air?
- T
  Tina ScottAug 5, 2025
  If your Magnetrol Measuring Instruments Tuffy fails to shut off or turn on inlet air, first check the float for a full range of travel, listening for a clicking sound from the mechanism. If the mechanism operates correctly when removed, ensure liquid is entering the storage tank or vessel, checking for closed valves or clogged pipelines. If the float is filled with liquid or collapsed, replace the entire level switch. Also, verify the unit is installed correctly with the serial number tag on top. If issues persist, contact the factory.
S
Sandra KingAug 14, 2025
How to check Magnetrol Tuffy 039-6000-100 Tuffy if it fails to shut off or turn on inlet air?
- M
  Michael SmithAug 14, 2025
  If the Magnetrol Measuring Instruments Tuffy fails to shut off or turn on inlet air: * Check the float for a full range of travel and listen for a clicking sound from the mechanism. * If the mechanism works when removed, ensure liquid is entering the tank or vessel, checking for closed valves or clogs. * If the float is filled with liquid or collapsed, replace the level switch. * Verify correct installation with the serial number tag on top. If problems continue, contact the factory.
B
bcoleAug 26, 2025
Why Magnetrol Tuffy 039-6000-100 Tuffy fails to shut off or turn on inlet air?
- Z
  Zachary HernandezAug 26, 2025
  The Magnetrol Measuring Instruments Tuffy may fail to shut off or turn on inlet air due to several reasons. The float might not have a full range of travel. Liquid might not be entering the storage tank or vessel because of a closed valve or clogged pipeline. Alternatively, the float could be filled with liquid or collapsed, requiring replacement of the level switch. Incorrect installation, such as the serial number tag not being positioned on the top of the unit, can also cause this issue. If these steps don't resolve the problem, further assistance from the factory may be needed.

Summary

Installation and Operating Manual

Notice of Trademark, Copyright, and Limitations

Details Magnetrol's trademarks, copyright, and limitations regarding product information.

Warranty

Outlines Magnetrol's five-year warranty for mechanical level and flow controls.

Quality Assurance

Explains Magnetrol's commitment to quality, certified by ISO 9001.

1.0 Installation

1.1 Unpacking

Procedures for carefully unpacking and inspecting the Tuffy Liquid Level Control for any damage.

1.2 Before You Begin

Pre-installation checks including site preparation and necessary tools for the Tuffy Liquid Level Control.

1.3 Mounting

1.3.1 Mounting an NPT Tuffy

Instructions for mounting the Tuffy using NPT threads, ensuring correct orientation.

1.3.2 Mounting a Tuffy with Flange

Steps for mounting the Tuffy using a flange connection, including gasket and bolt procedures.

1.3.3 Mounting External Cage Tuffy

Guidance for installing the Tuffy in an external cage, focusing on piping and cage placement.

1.4 Airline Connections

Airline Connections

Details on connecting pneumatic supply and outlet lines to the Tuffy Liquid Level Switch.

2.0 Reference Information

2.1 Description

Overview of Tuffy liquid level switches and their pneumatic switch operation.

2.2 Theory of Operation

Explanation of how the float and magnet mechanism controls pneumatic output based on liquid level.

2.3 Preventive Maintenance

Recommendations for periodic inspections and maintenance to ensure reliable operation of the Tuffy control.

2.4 Troubleshooting

Guidance on diagnosing and resolving issues if the Tuffy fails to shut off or turn on inlet air.

2.5 Specifications

Technical specifications for the Tuffy Liquid Level Control, including pressure, temperature, and materials.

2.6 Parts

Identification of physical parts for the pneumatic switch models of the Tuffy Liquid Level Control.

2.7 Model Numbers

Explanation of the model number structure for Tuffy Float Switches.

ASSURED QUALITY & SERVICE COST LESS

Service Policy

Details Magnetrol's policy for returning, rebuilding, or replacing controls under warranty or otherwise.

Return Material Procedure

Procedure for returning materials, including obtaining an RMA number and required documentation.

Magnetrol Tuffy 039-6000-100 Specifications

General

Model	Tuffy 039-6000-100
Category	Measuring Instruments
Type	Level Switch
Material	316 Stainless Steel
Process Connection	1-1/2" NPT
Power Supply	120/240 VAC
Output	SPDT
