8-39
40 c
m
BLIND ZONE
4
0 cm
BLIN
D
ZONE
W12H55
W12H62

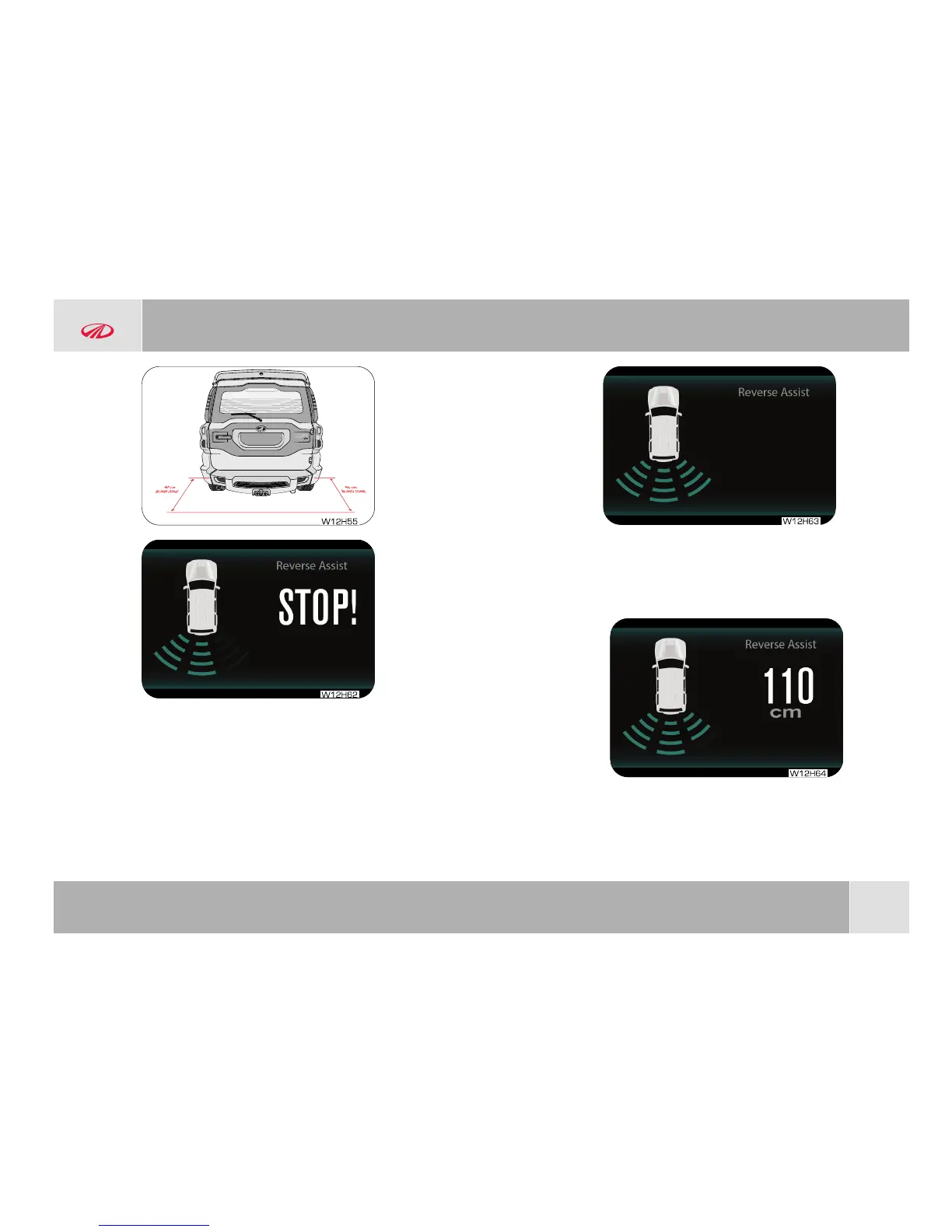

Operation of RPAS
1. Start the vehicle (IGN is turned ON)
2. Change the gear to reverse (engage the reverse gear). The RPAS will be
displayed on the infotainment screen.
W12H63
3. Start moving the vehicle in the reverse direction
4. Display bars in the respective direction will glow according to obstacles in its
path
• If the obstacle is between 100 to 120 cm, bar 4 will be turned ON
W12H64
• If the obstacle is between 75 to 100 cm, bar 3 & 4 will be turned ON
FEATURES AND CONTROL
