• If the obstacle is less than 50 cm, all bars in that direction will be turned
ON and a STOP! symbol will be displayed
5. The alert sound can be heard from the driver and co-driver side speaker.
Frequency of the beep will increase if obstacles comes closer (crossing each
display bar) and the sound will be continuous if any of the obstacle is less than
50 cm
6. The RPAS distance displayed will be the minimum of distances sensed by left,
center and right sensors. For eg. Assume 3 obstacles are placed as below;
• Obstacle at left at 100 cm
• Obstacle at center at 90 cm
• Obstacle at right at 76 cm

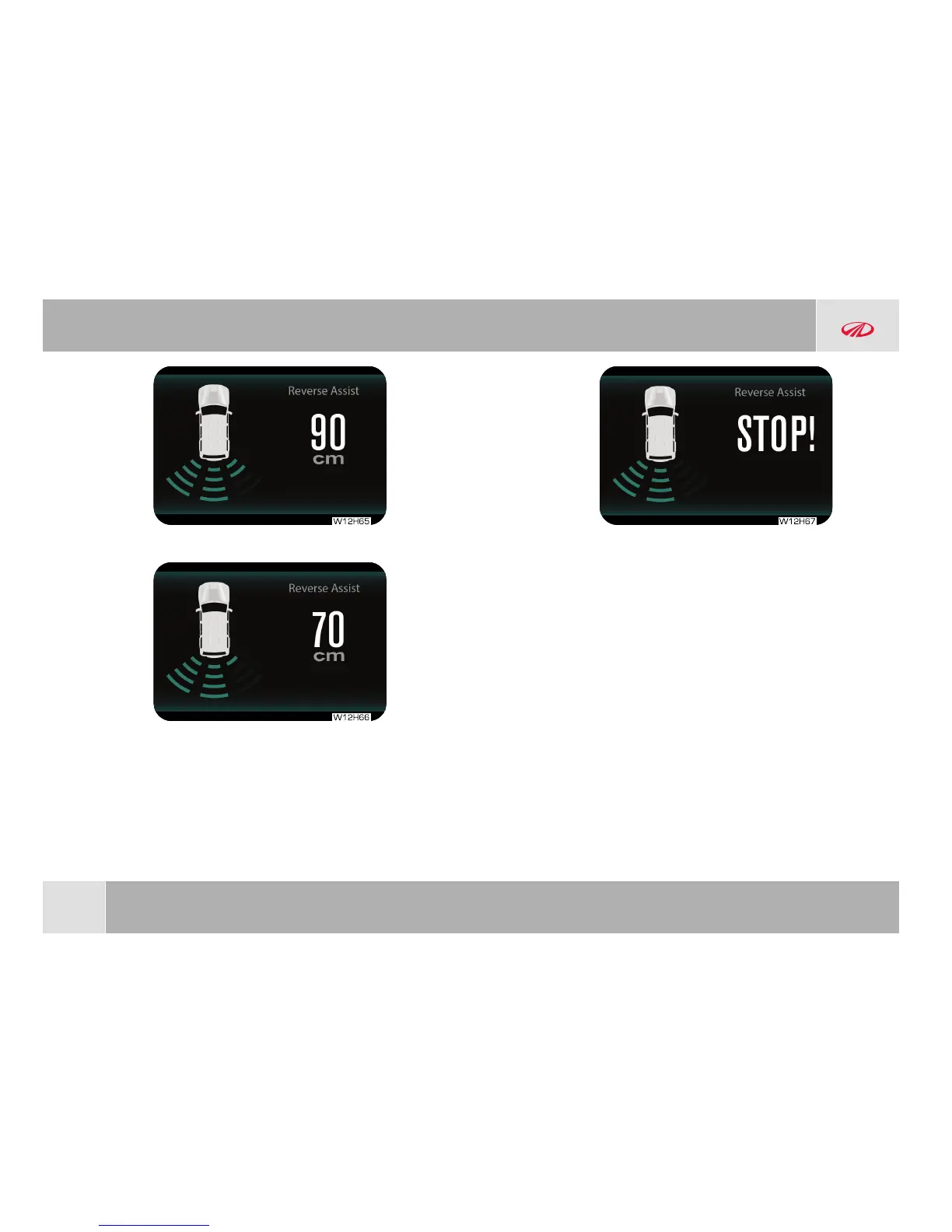

On engaging the gear in reverse, infotainment will display as below. Along with
this, a beep sound can be heard from the driver & co-driver speakers.
Frequency of the beep will increase if the obstacle comes closer (crossing
each zones) and the sound will be continuous if any of the obstacles is less
than 50 cm.
FEATURES AND CONTROL
