35 Series-HST, Model - 3535, 4035, 4535 & 5035
33

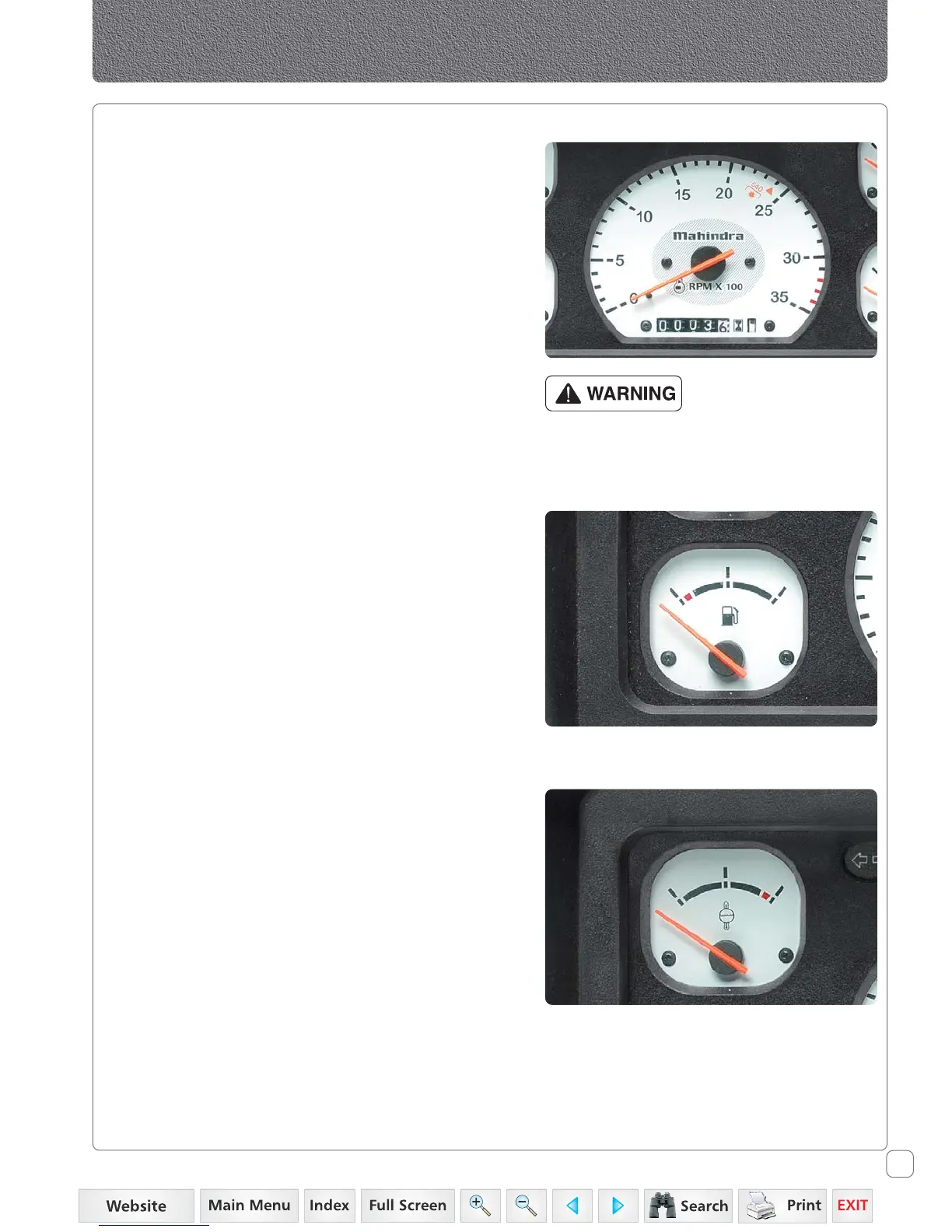

Engine RPM Meter
This meter gives the number of Revolution Per Minute of
the engine. To arrive at the RPM value at any given point of
time, multiply the pointer reading by 100.
Example : If the reading shows 15, the actual engine RPM
value = 15 x 100 = 1500.
PTO 540 RPM Mark
This mark is located in the Engine RPM Meter. It indicates
Engine RPM at which the PTO shaft will rotate at 540 RPM.
Hour Counter
This is a Digital Hour Counter located in the RPM meter.
It is operated by pulses coming from Alternator when the
engine is running. Hour counter displays the cumulative
engine running hours.
Fuel Gauge
The Fuel Gauge indicates quantity of fuel available in the
fuel tank. Refill the fuel tank when the pointer lies in Red
Band.
Coolant Temperature Gauge
This gauge indicates coolant temperature of the engine.
When the pointer lies in RED band :
1. Indicates excessive engine coolant temperature.
2. Get the cause identified.
3. Further engine operation should be done only after
elimination of the problem.
Instrument Cluster
Do not drive the vehicle when Engine RPM is in
Red Zone for longer duration.
