Mahindra 5035 User Manual

35 Series-HST, Model - 3535, 4035, 4535 & 5035
48
Hydraulic System & Operation

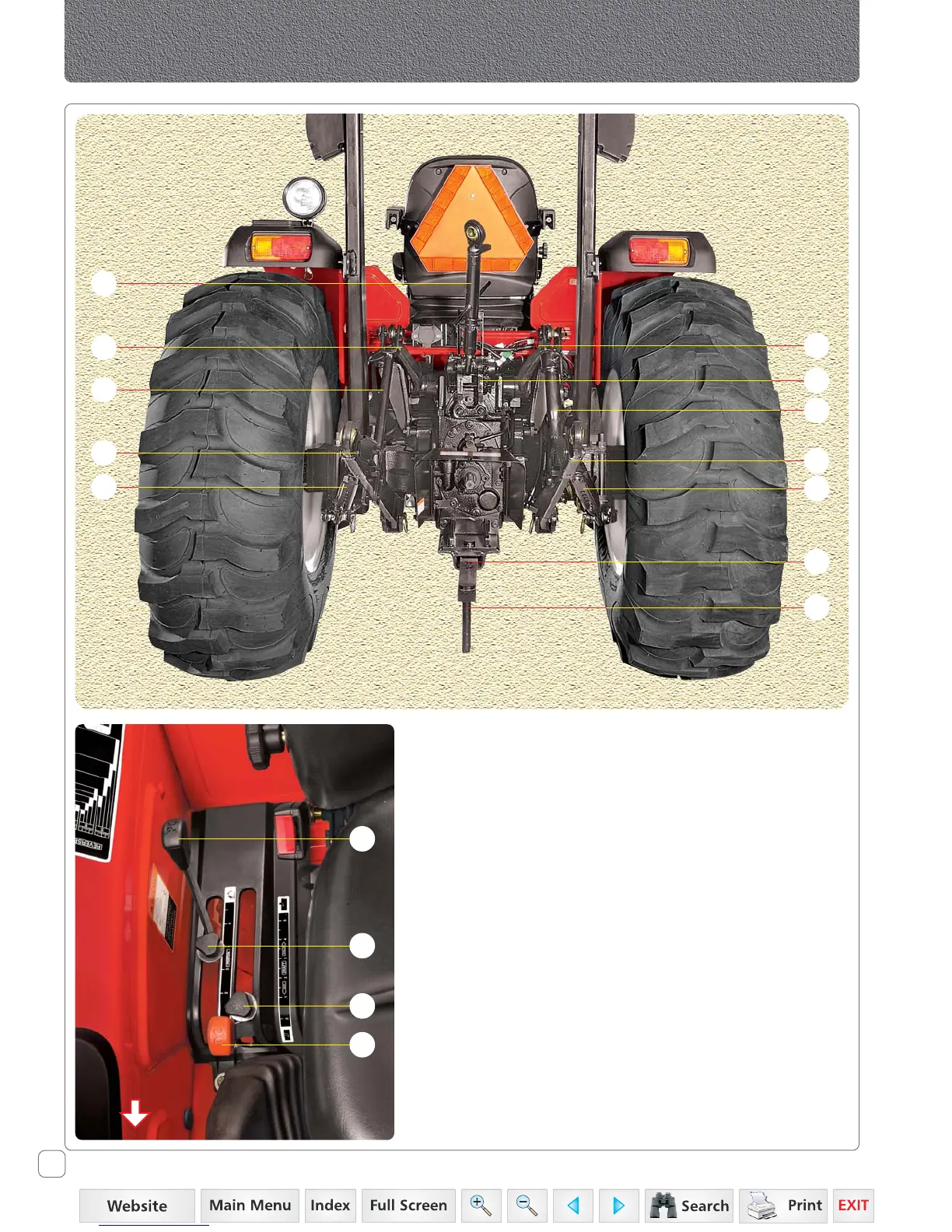

Three Point Linkage
1. Top Link.
2. Lift Arm LH
3. Lift Rod LH
4. Lower Link LH
5. Lateral Stabiliser LH
6. Lift Arm RH
7. Draft Sensing Bracket
8. Adjustable Lift Rod RH
9. Lower Link RH
10. Lateral Stabiliser RH
11. Drawbar
12. Towing Pin
Quadrant Assembly
13. Position Control Lever
14. Position Control Stop Screw
15. Draft Control Stop Screw
16. Draft Control Lever
15
16
13
14
Tractor Front
1
3
5
4
7
6
8
11
12
10
2
9

Mahindra 5035 Specifications

General

Transmission	8 Forward + 2 Reverse
No. of Cylinders	3
Steering Type	Power Steering
PTO RPM	540
Engine Type	Diesel
Brakes	Oil Immersed Brakes
Clutch Type	Single
