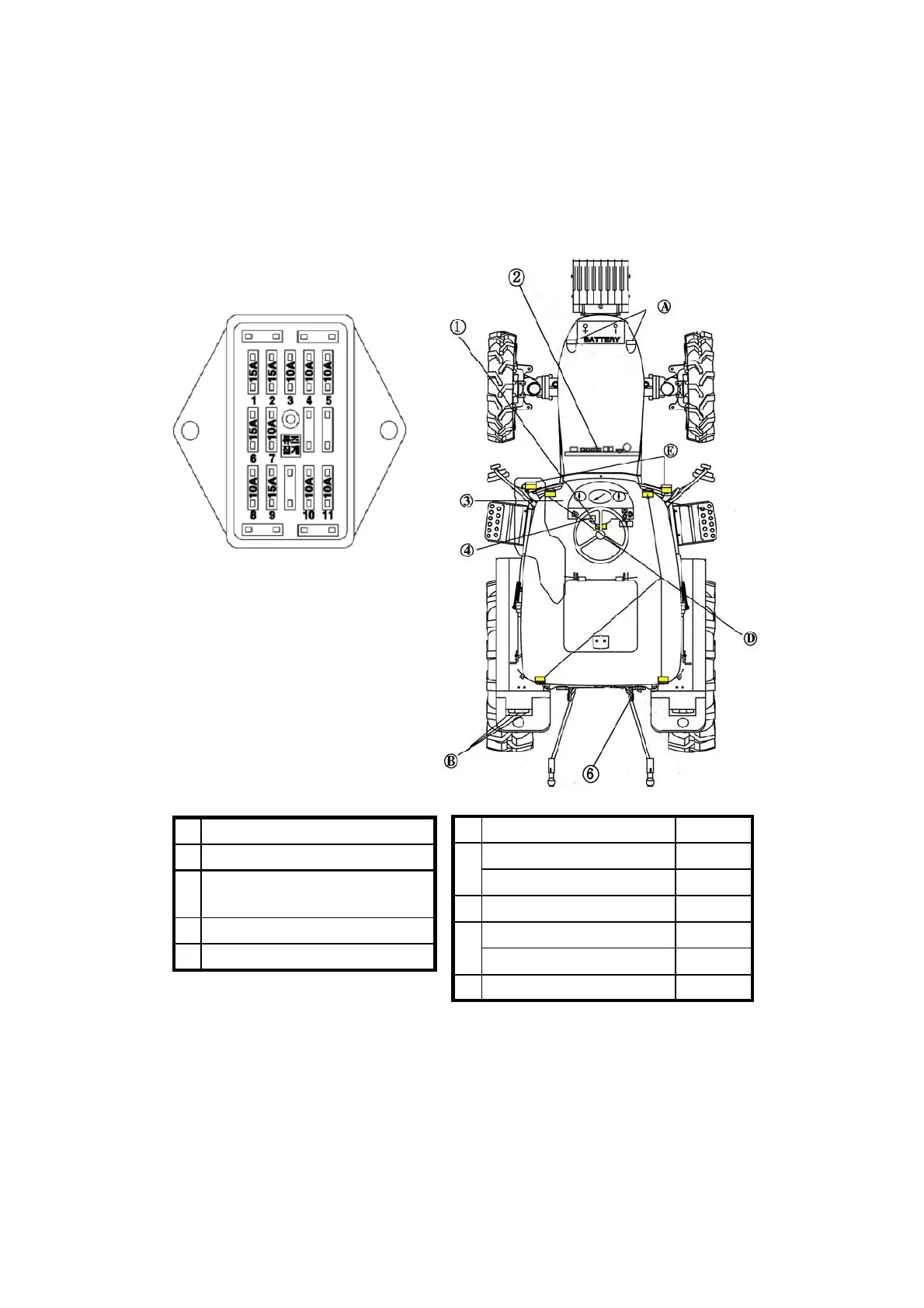

Drawing for fixing position of the fuse
Wiring diagram of the electric instrument
1. PANEL
2. LIGHT, HORN
3. WORKING LIGHT
4. STOP LAMP
5. TURN SIGNAL
6. CONTROLER
7. ENGINE STOP
8. FUEL PUMP
9. COUPLER
10. AUTO ROLLING
11. QUICK TURN
1
FUSE BOX
2
SLOW BLOW FUSE
3
UNITS FOR DIRECTION
SIGNAL RELAY FOR THE POWER
4
PTO MONITOR
A
HEAD LAMP 12V55W
B
DIRECTION SIGNAL LAMP 12V21W
STOP LAMP BACK LIGHT 21/5W
D
WORKING LAMP 12V35W
E
DIRECTION SIGNAL LAMP 12V21W
6
COUPLER FOR THE TRAILER
E
SIDE LAMP 21V5W
G
NUMBER LAMP (EU) 12V10W
109
