PTO monitor Lamp
■ THE PTO MONITOR LAMP on the dash panel indicates the state
of the PTO shaft.
1. If the monitor glows: The PTO is rotating
2. If the monitor is off: The PTO is off
If the monitor blinks: The PTO is presently stationary but will
.
instantly start rotating if the clutch pedal is released or the implements lowered.

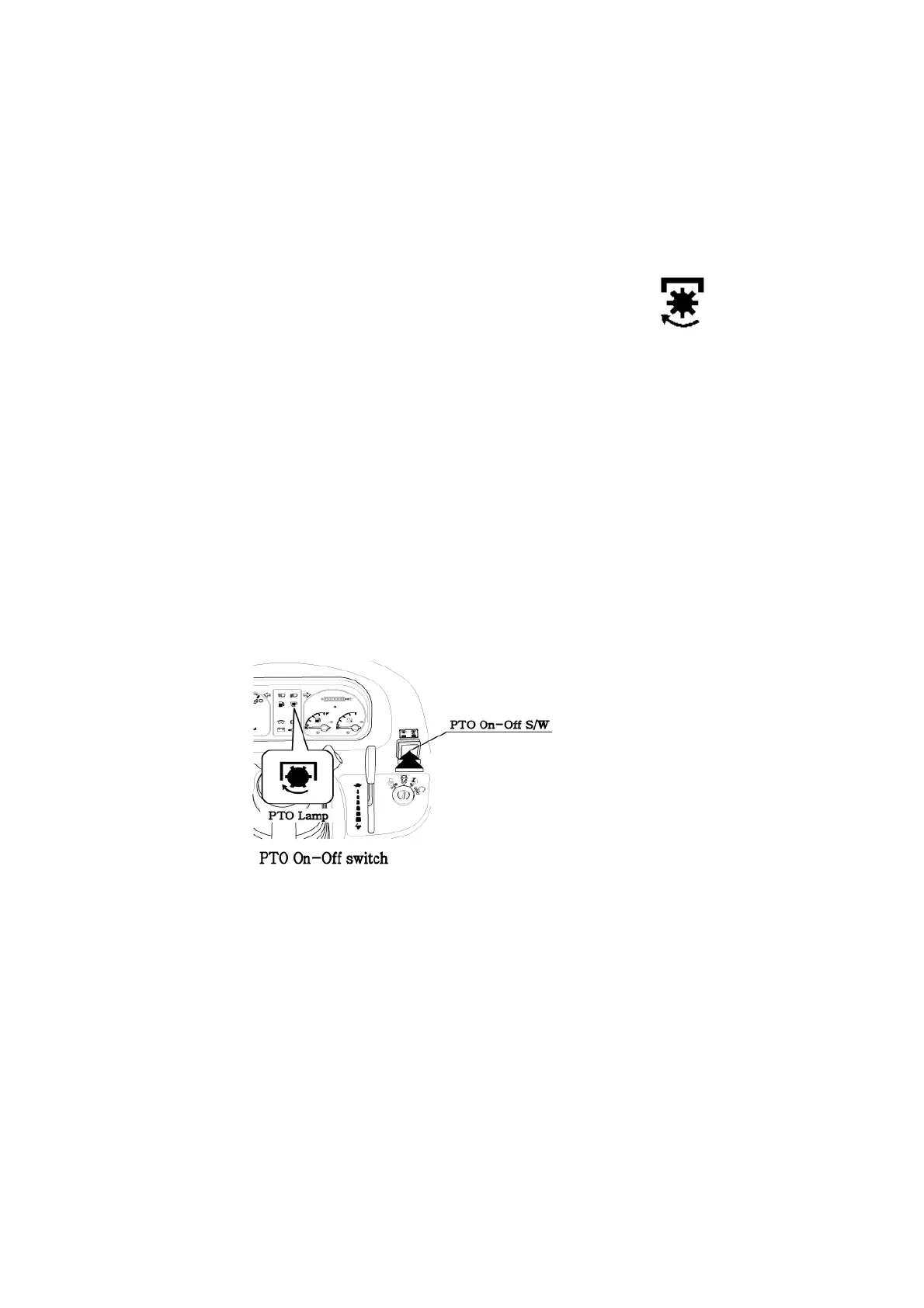

Two switches operate the independent PTO.
1. PTO ON/OFF SWITCH: PTO ON/OFF switch is located
on the RHS. on the steering column and can be identified
easily with its built in red colored indicator. When the
switch is pushed down to start the PTO indicator glows to
indicate that the switch and the PTO are in ON position,
If the switch is pushed down again the indicator goes off
signaling that the PTO is OFF.
39
