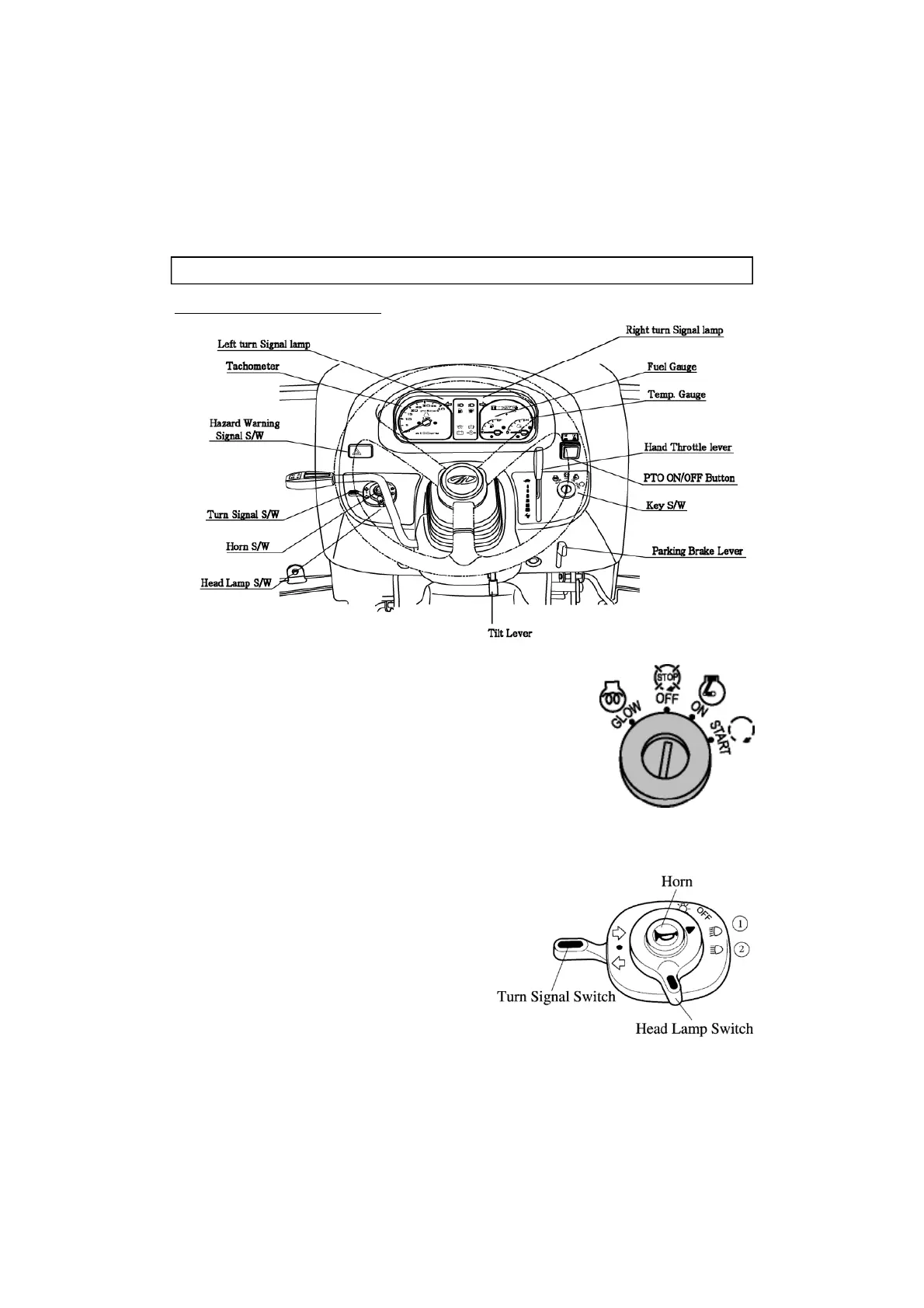

DESCRIPTION OF TRACTOR CONTROLS
INSTRUMENT AND SWITCHES
► MAIN SWITCH (KEY SWITCH)
[OFF] - The key can be inserted or removed
[ON] - The electric circuit is on & preheat function
[START] - The starter motor is engaged.
When the key is released it will return to the ON position
[GLOW] - Glow plugs preheat the combustion chamber
► HEAD LAMP, TURN SIGNAL SWITCH AND HORN
■ HEAD LAMP SWITCH
High and low beam are operated on the main switch
Position ①. Low beam
Position ②. High beam
36
■ TURN SIGNAL SWITCH
Pull the turn signal lever down to signal a left turn.
Push the turn signal lever up to signal a right turn.
■ HORN
Push the Red button.
